LIGHTING THE WAY FOR SIXTY YEARS
ASSEMBLY INSTRUCTION
MODEL #8686-MK-WH
Contents

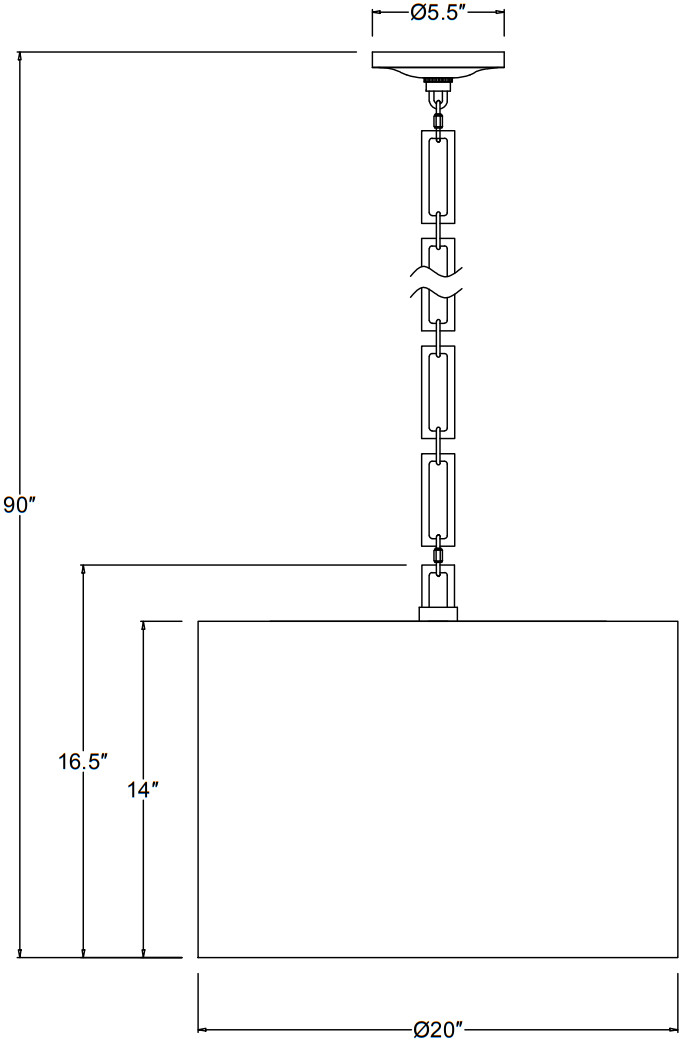

8686-MK-WH Six Light Chandelier
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 6-Medium Bulb 40 Watts Recommended 60 Watts Max Bulb not included
USE LED BULBS FOR EXTENDED USE This fixture is DRY rated
How to Install
- Decide the preferred hanging height and choose the chain needed.
- Fix the mounting plate to the ceiling and connect the canopy to the mounting plate.
- Install the recommended bulbs (not included).
Part Number
Part Numbers
A. Mounting Hardware
(1) Mounting Plate
(2) Wire Nut
(2) Outlet Box Screws
B. (1) Screw Collar Loop
C. (1) Canopy; Ø5.5 ″x1″; XMO8680 MKCAN5.5IN
D. (1) Collar Ring
E. (2) Quick Link
F. (1) Chain; 72″ Lx 8.0mm T; XMO8680 MKCHA8.0MM
G. (1) Loop;XMO8680MKLOO
H. (1)Center Rod
I. (6)Socket
J. (1)Metal Shade;Ø20″x14″h;XMO8686MKSHA20IN
