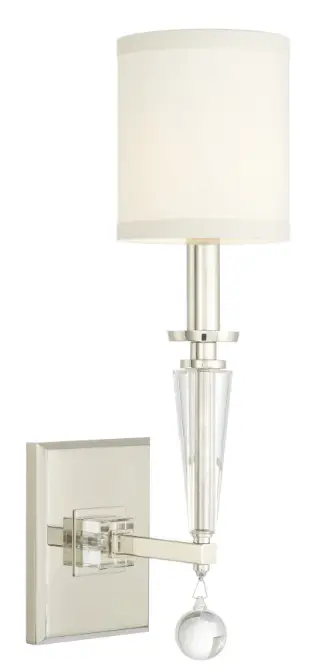

CRYSTORAMA 8101-PN Paxton One Light Wall Mount
Product Information
The product is a wall-mounted light fixture with model number 8101-PN manufactured by Crystorama.com. It requires 1 candelabra bulb with a maximum of 60 watts. The electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes. The package includes mounting hardware consisting of a mounting plate, mounting screws, wire nut, screws, back plate, crystal drop, and
crystal column. The product has a warning that it contains lead which is known to the State of California to cause cancer and/or birth defects or reproductive harm.
Product Usage Instructions
- Attach the fixture onto the outlet box in the wall.
- Put the shade on the candle sleeve and secure it in place using the socket ring.
- Install the recommended bulb into the socket and screw the crystal drop into the bottom.
- After connecting the wires, fix the back plate on the mounting plate with screws.
Note: Use LED bulbs for extended use.
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov
How to Install
- Attach the fixture onto the outlet box in the wall.
- Put the shade on the candle sleeve and secure it in place using the socket ring.
- Install the recommended bulb into the socket and screw the crystal drop into the bottom.
- After connecting the wires, fix the back plate on the mounting plate with screws.

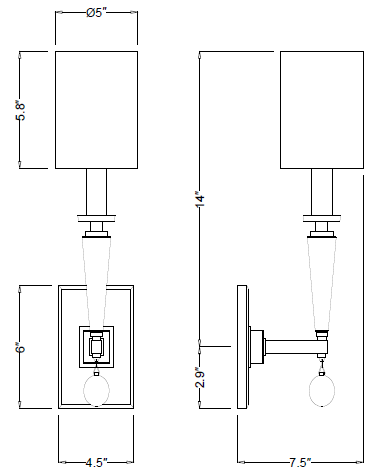

DIMENSIONS

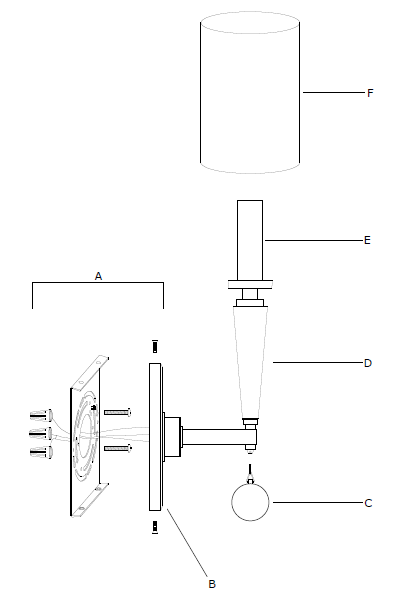

PART NUMBER
- A. Mounting Hardware
- Mounting Plate
- Mounting Screws
- Wire Nut
- Screws
- B.(1)Back plate;4.5″x6″x0.63″h;XMO8101PNBKP6IN C.(1)Crystal drop
- D.(1)Crystal Column
- E.(1)Candle Sleeve
- F.(1)Shade;Ø5″x5.8″h;XMO8101SHA6IN
