CRYSTORAMA 590-EB-GA 12 Light Lantern
MODEL #590-EB-GA
Contents

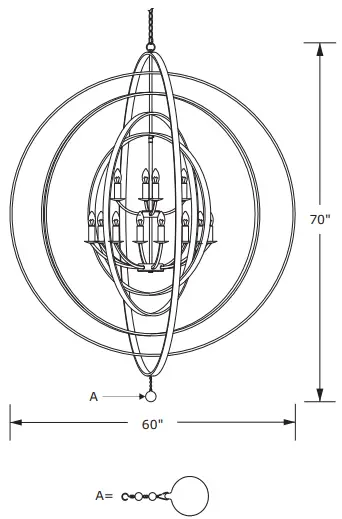

Dimension
|
WARNING: |
|
 |
 |
|
Electrical Danger |
Turn Power Off |
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 12 – Candelabra Base Bulb 40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE THIS FIXTURE IS DAMP RATED
How to Install
- Attach the center stem onto the wiring house.
- Attach the top of the stem onto the swivel.
- Place the candle sleeve onto the socket and insert recommended bulb (not included).
- Dress the crystal A onto the bottom of fixture.
- Adjust the flat metal rings to the preferred angle.
Crystal Sets
A.1 Set.
(2)14mm + (1)80mm Crystal Ball
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov.

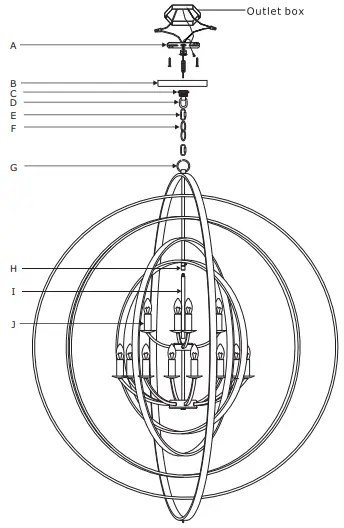

Parts
Part Number
A. (1) – Mounting Hardware
B. (1) – Canopy(W6″,H1″) #XRE587EBGACAN6IN
C. (1) – Collar Ring
D. (1) – Collar Loop
E. (2) – Quick Link
F. (1) – Hanging Chain(72″,5mm) #XRE590EBGACHA5MM
G. (1) – Fixture Loop
H. (1) – Swivel
I. (1) – Center Stem(7.87″,19mm) #XRE590EBGASETM
J. (12) – Candle Sleeve(W1.65″,H2.56″) #XRE590EBGACDL2.56IN
