ASSEMBLY INSTRUCTION MODEL #5316-GL
PART NUMBER MODEL #5316-GL
Contents

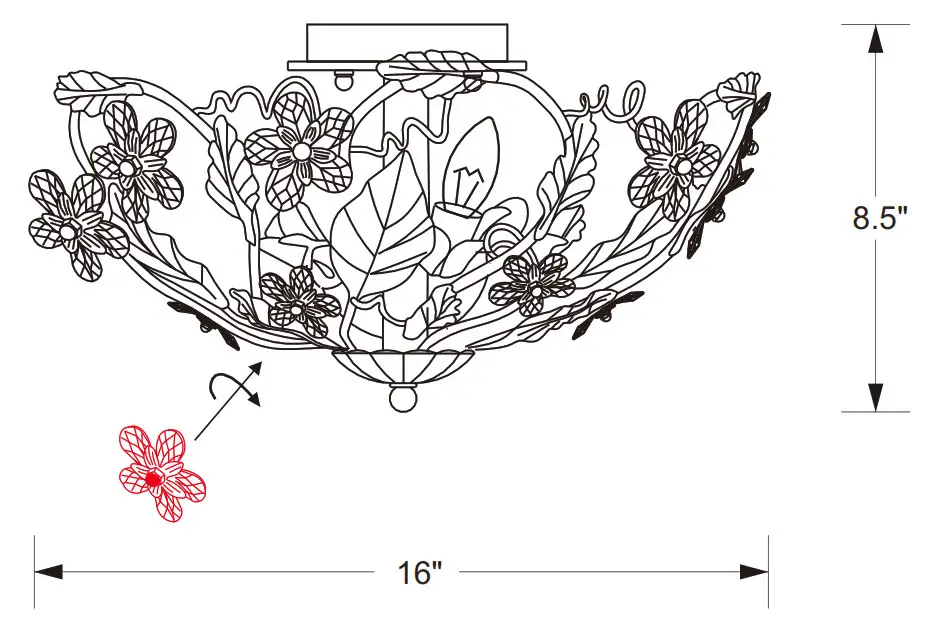

5316-GL Paris Market Six Light Ceiling Mount
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes. –
You will need 6 -Candelabra Base Bulb 40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE THIS FIXTURE IS DAMP RATED.
How to Install
- Attach the crystal flowers onto the metal frame by twisting clockwise.
- Install bulbs(not applied).
- After safely attaching fixture into outlet box, proceed to connecting the power.

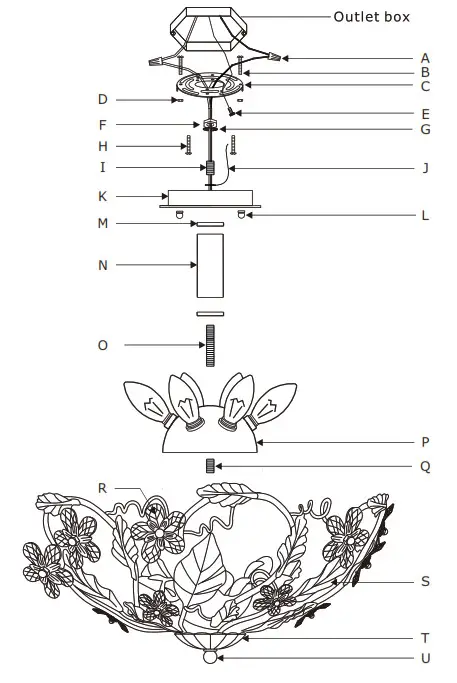

Part Number
A. (2) – Wire Connector
B. (2) – Screw
C. (1) – Mounting Plate
D. (2) – Hex Nut1
E. (1) – Ground Screw
F. (1) – Hex Nut2
G. (1) – Lock Washer
H. (2) – Outlet Box Screws
I. (1) – Threaded Pipe1
J. (1) – Ground Wire
K. (1) – Canopy(W4.5″, H1″) #XRE5316GLCAN4.5IN
L. (2) – Ball nut
M. (2) – Metal Flat Cover
N. (1) – Metal Tube
O. (1) – Threaded Pipe2
P. (1) – Lighter Cluster
Q. (1) – Threaded Pipe3
R. (18) – Crystal Flower
S. (1) – Metal Frame
T. (1) – Bottom Cap
U. (1) – Finial #XRE5316GLFIN
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov.
