ASSEMBLY INSTRUCTION MODEL #5026-VB-GT-MWP
Contents
5026-VB-GT-MWP Six Light Chandelier
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 6- Candelabra Base Bulb 40 Watts recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE The fixture is Damp rated
HOW TO INSTALL:
Place the fixture parts on a soft cloth-covered platform before installation of fixture.
- Attach the Center column kit to the fixture body kit using the coupling and finial.
- Attach the mounting plate onto the outlet box.
- Decide the desired hanging height and adjust the chain to the correct length.
- Raise the fixture up and do the wire connection.
Attach the canopy over the mounting plate and secure with fixture loop. - Put the candle sleeve onto the socket.

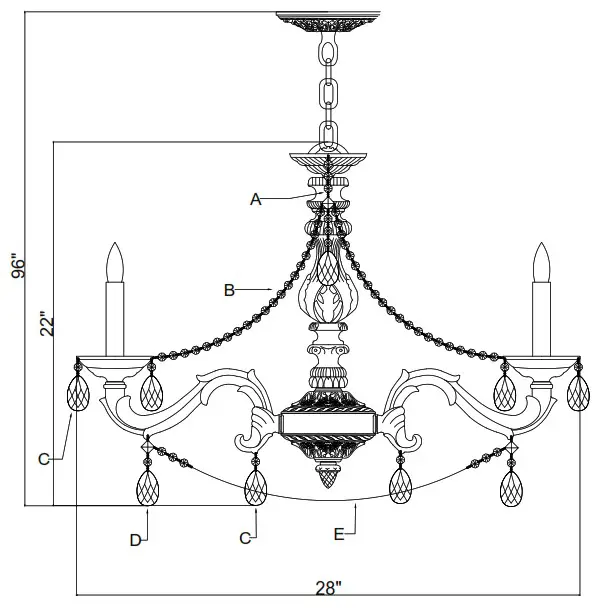

- Dress the crystals as illustrated.
Crystal Sets
A. 6 Sets. (3)14mm + (1)Square + (3)14mm + AS9-2″
B. 12 Sets. (18)14mm
C. 30 Sets. (1)14mm + AS9-2″
D. 6 Sets. (1)Square + (1)14mm + AS9-2″
E. 6 Sets. (13)14mm
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm.
For more information go to www.p65warnings.ca.gov

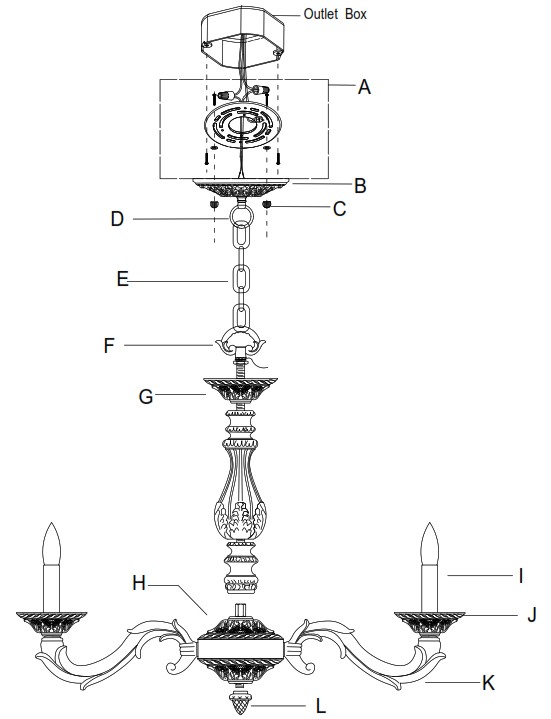

Part Number
| A. | (1) | Mounting Hardware Wire Connector x 2 Mounting Plate x 1 Hex Nut x 1 Screw x 4 |
| B. | (1) | Canopy (W5″ x H1″); XSN5024VBCAN5IN |
| C. | (2) | Ball Nut |
| D. | (1) | Fixture Loop; XSN5024VBTOLOOP |
| E. | (1) | Chain (4mm x 72″); XSN5026VBCHA4MM |
| F. | (1) | Center Column Kit Loop; XSN5026VBBOLOOP |
| G. | (1) | Center Column Kit Threaded Nipple; H12 3/8″ Top Bobeche ; Ø4″, 6pin, 10.3mm center hole XSN5026VBBOB6IN Vase ; H8 1/4″. Column Kit Parts; H3 3/4″ |
| H. | (1) | Fixture Body Kit Coupling Distributor Box Cover x 2; Ø5″,10.3mm center hole Distributor box ; Ø5″ ,10.3mm center hole |
| I. | (6) | Candle Sleeve; H4 1/8″ XSN5026VBCDL4.125IN |
| J. | (6) | Bobeche; Ø4″,4pin,10.3mm center hole XSN5026VBBOB4IN |
| K. | (6) | 9 1/2″ Arms |
| L. | (1) | Finial; XSN5024VBFIN |
