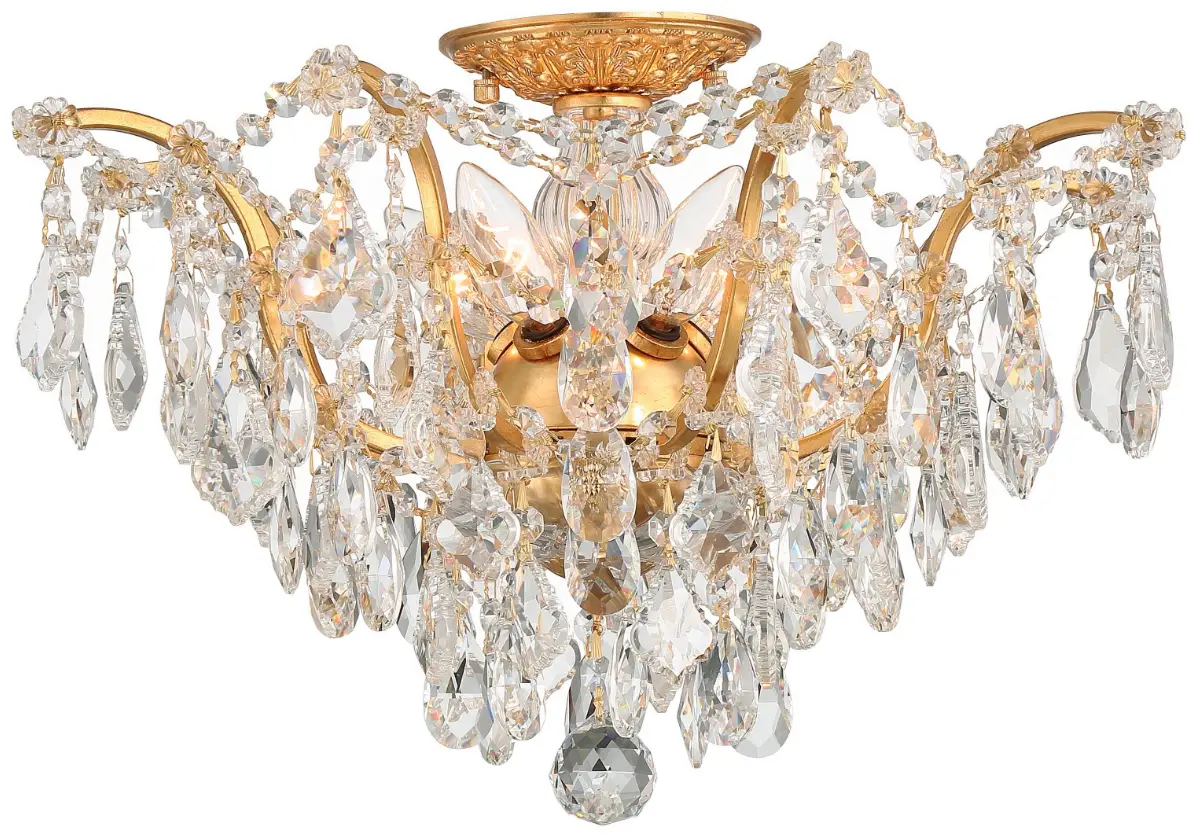

CRYSTORAMA 4457-GA-CL-MWP Filmore Flush Mount Ceiling Light
Contents
WARNING:
Electrical Danger
Turn Power Off
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 5-Candelabra Base Bulb 40 Watts Recommended 60 Watts Max USE LED BULBS FOR EXTENDED USE
The fixture is dry rated
How to Install
- Do a complete inventory of all parts and components before you start installing.
- Place the glass dish and small metal dish over the bottom metal cover and secure with the finial.
- Attach the mounting plate onto the outlet box using two outlet screws.
- Install the fixture onto the mounting plate using the two ball nuts.
- Install bulbs (not included) and proceed to connecting the power.
- When you begin to dress the fixture, start with packet labeled(A).
- IMPORTANT: Apply crystal sets in alphabetical order.

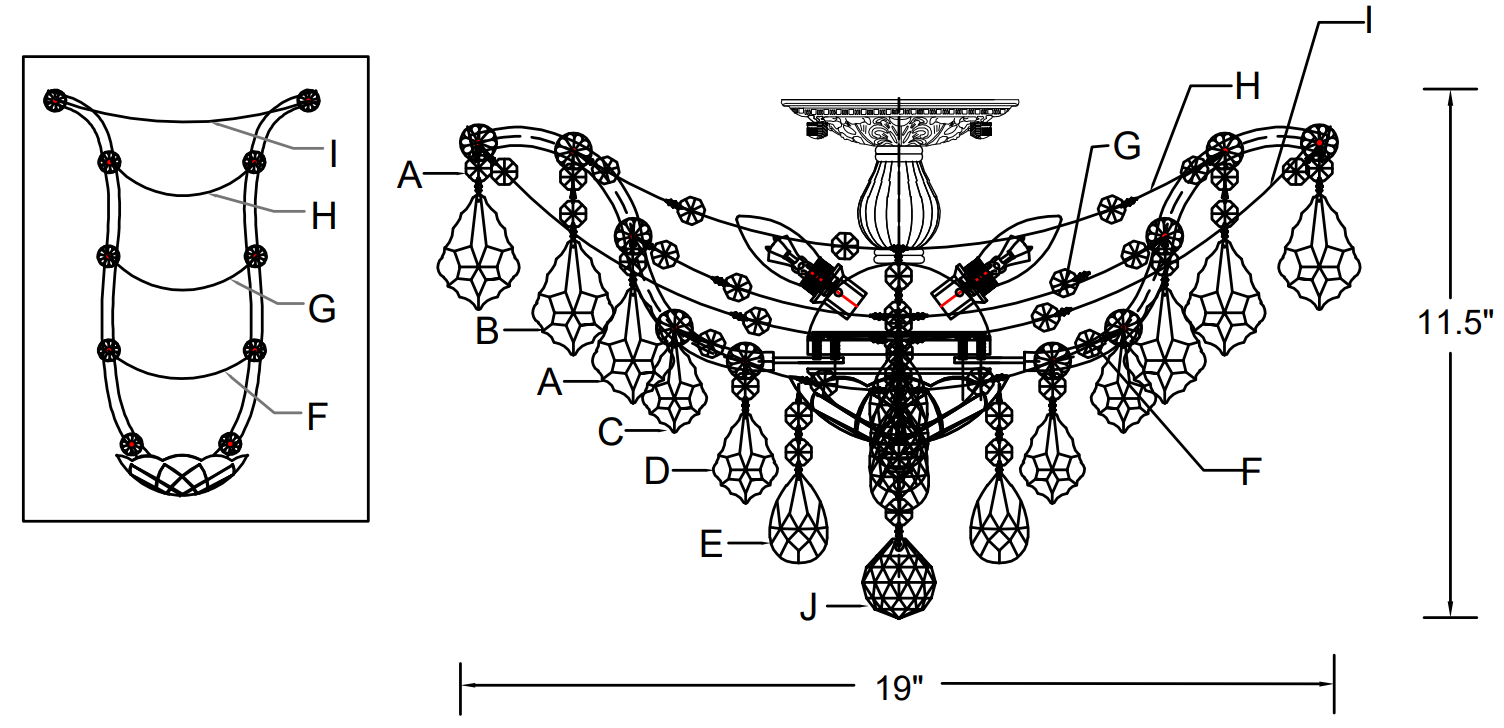

Dimension
Crystal Sets
A. 16 Sets. (1)14mm + AS20-2.5″
B. 8 Sets. (2)14mm + AS20-2.5″
C. 8 Sets. AS20-2″(No Jewel)
D. 8 Sets. (1)14mm + AS20-2″
E. 8 Sets. (2)14mm + AS9-2″
F. 8 Sets. (4)14mm + AS9-2″
G. 8 Sets. (5)14mm + (1)14mm 3 holes + AS9-2″
H. 8 Sets. (8)14mm + AS9-2″
I. 8 Sets. (9)14mm + AS9-2″
J. 1Piece. (1)14mm + AS8-40mm Ball

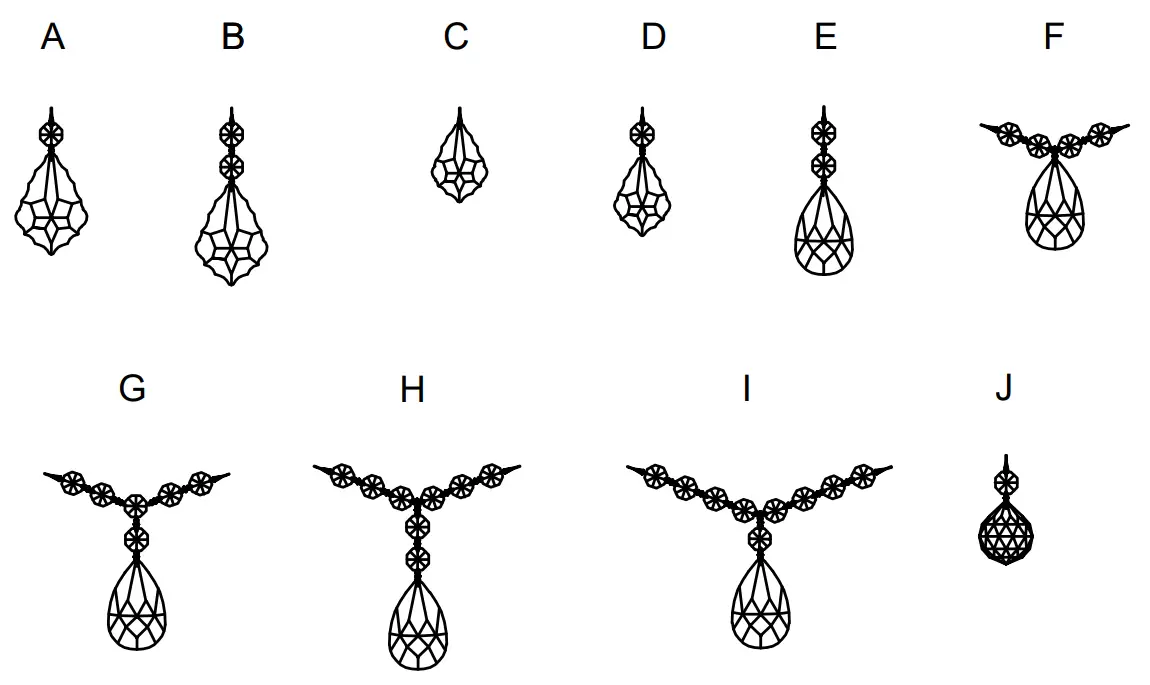

DETAILED ILLUSTRATION
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov

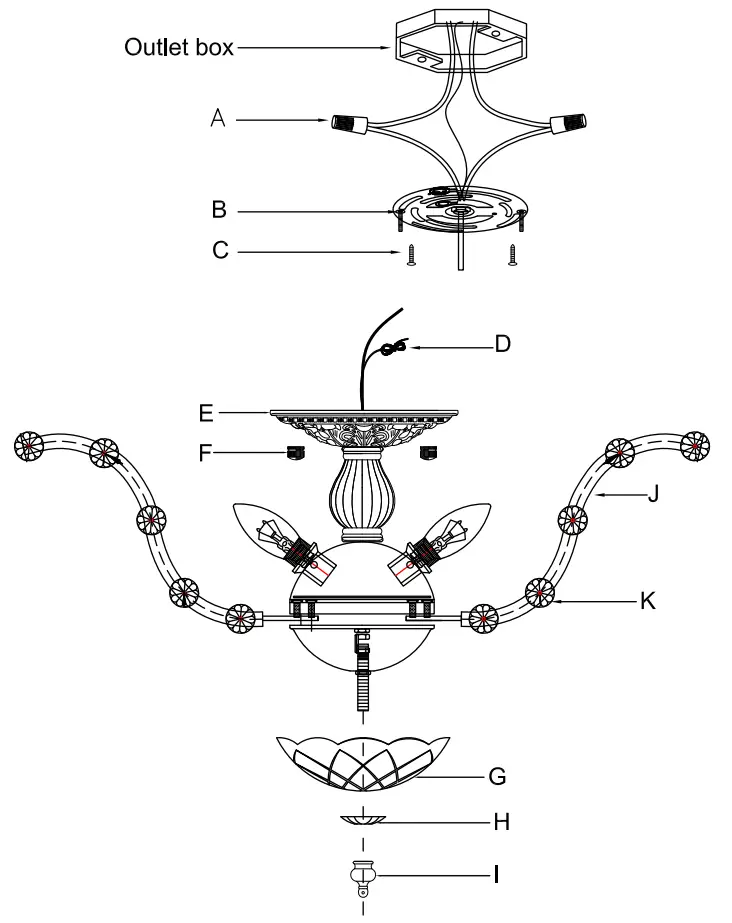

PART NUMBER
Part Numbers
A. (2)-Wire Connector
B. (1 )-Mounting Plate
C. (2)-Outlet Box Screws
D. (1 )-Ground Wire
E. (1 )-Canopy; w5″ x h1″ {XFB4457GACANSIN}
F. (2)-Ball Nut {XFB4457GABANUT}
G. (1 )-Dish; 05″, 11 mm hole, Spin {XFB4457GADIBOBSIN}
H. (1 )-Metal Dish
I. (1 )-Finial {XFB 4457 GAFIN}
J. (1 )-Frame
K. ( )-Rosette
PARTS BAG I: Includes Parts A, C
