ASSEMBLY INSTRUCTION MODEL #4456-GA-CL-MWP
Contents
DETAILED ILLUSTRATION
All electrical components must be installed by a licensed electrician in accordance with the National
Electric Code and the appropriate local electrical codes.
You will need 12-Candelabra Base Bulb 40 Watts Recommended 60 Watts Max
USE LED BULBS FOR EXTENDED USE
The fixture is dry rated
How to Install
- Do a complete inventory of all parts and components before you start installing.
- Screw the top glass dish & Loop on the coupling.
- Place the glass dish and small metal dish over the bottom metal cover and secure with the finial.
- After safety attaching fixture into outlet box, install bobeches, bulbs (not included) and proceed to connecting the power.
- When you begin to dress the fixture,start with packet labeled(A).
- IMPORTANT: Apply crystal sets in alphabetical order.

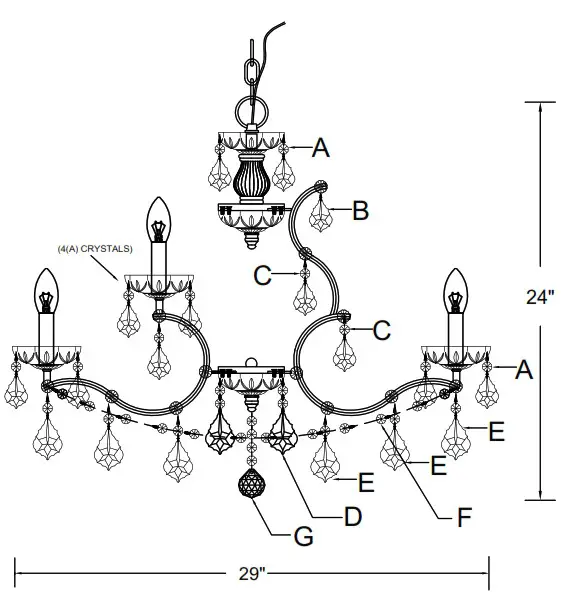

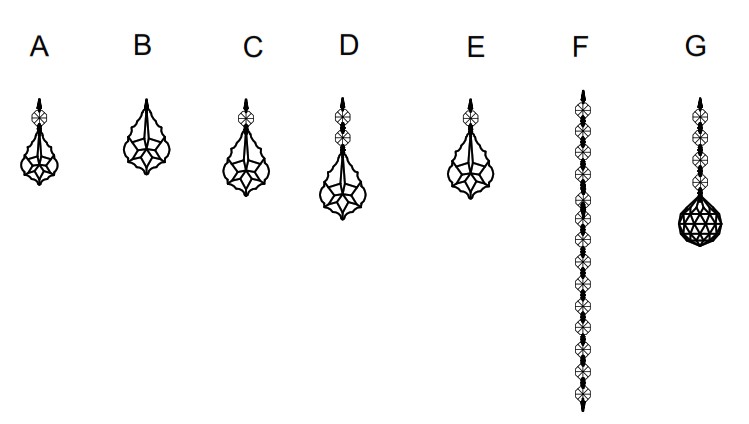

Crystal Sets
A. 52Sets. (1)14mm + AS20-2″
B. 4Sets. AS20-2.5″(No Jewel)
C. 12Sets. (1)14mm + AS20-2.5″
D. 4Sets. (2)14mm + AS20-2.5″
E. 24Sets. (1)14mm + AS20-2.5″
F. 8Sets. (14)14mm
G.1Piece. (4)14mm + AS8-40mm Ball
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov

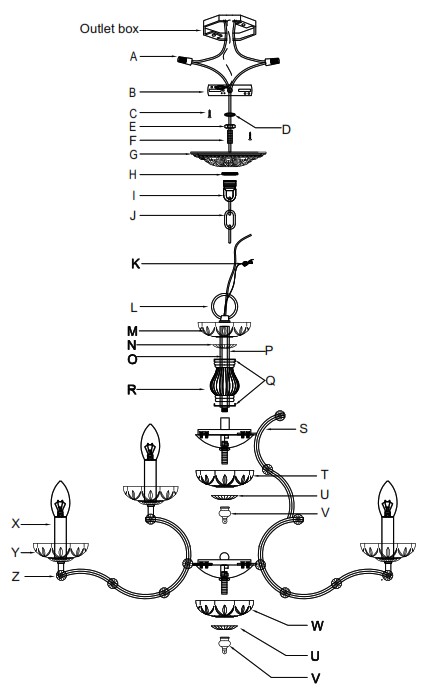

Part Numbers
A. (2)-Wire Connector
B. (1)-Mounting Plate
C. (2)-Outlet Box Screws
D. (1)-Lock Washer
E. (1)-Hex Nut
F. (1)-Nipple
G. (1)-Canopy; w5″ x h1″ (XFB4454GACAN5IN)
H. (1)-Collar Ring
I. (1)-Collar Loop
J. (1)-Chain; 72″, 4mm (XFB4454GACHA4MM)
K. (1)-Ground Wire
L.(1)-Loop
M. (1)-Top Glass Dish Ø4″, 13mm hole, 4pin(XFB4456DIBOB4IN)
N. (1)-Metal Dish
O. (1)-Thread
(1)-Metal Sleeve
P.(2)-Metal Dish
Q.(2)-Metal Dish
R.(1)-Glass Column
S. (1)-Frame
T.(1)-Middle Glass Dish Ø4″, 11mm hole (XFB4455DIBOB4IN)
U.(2)(2)-Metal Dish
V.(2)-Finial (XFB4454CHFIN)
W.(1)-Bottom Glass Dish; Ø4″, 11mm hole, 4pin (XFB4454GABOB4IN)
X.(12)-Candle Sleeve; h3″ (XFB4452GACDL3IN)
Y. (12)-Bobeche; Ø4″, 24mm hole, 4pin (XFB4454GABOB4IN)
Z. ( )-Rosette
PART BAGⅠ: Includes Parts A, C
PART BAG Ⅱ: Includes Parts B, D, E, F, H, I
