CROSSBEATS IGNITE GRANDE Mono-Channel Smartwatch User Manual

IGNITE GRANDE Mono-Channel Smartwatch
User Manual

OVERVIEW

1. LTPS Touch Screen
2. Multi motion sensors
3. Charging pin
4. Large 1.75″ HD Display
5. Multi-function button

SPECIAL FEATURES

1.75″ HD LTPS Screen
Single-Chip BT calling
600 Nits brightness
Up to 7 days of battery
Multi sport training modes
Dynamic HR & Sp02
IP68 Water-resistant
Al voice-enabled
Personalized Health Suites

APP DOWNLOAD

Scan the QR code to download the smartwatch app
Or
Download the ‘GLORY FIT’ App from the Play store or iOS App Store

https://play.google.com/store/apps/details?id=com.yc.gloryfit&hl=zh&gl=US

INSTALL & REMOVE STRAPS

Install straps

• Slide the pin & release the lever into the notch after placing it correctly.
• Repeat step 1 on the other side as well.

Remove straps

• To remove the straps, turn over the watch and find the quick-release lever.
• While pressing the quick-release lever inward, gently pull the strap away from the watch to release it.

CHARGING

• Charge the smartwatch before using
• Full charge in less than 1.5 hours
• Connect the back of the watch to the magnetic charging pin available in the box
• Please use a 5V charging adapter or connect USB with the laptop

CONNECT

• Turn on the Bluetooth on your mobile phone
• Download and install the ‘GloryFit’ app
• Create an account and log in to the app
• Open App > Device > Add a new device > Ignite Grande
• Click on Pair to connect
• When pairing, please ensure the watch and mobile phone are in sync

Note: You need not connect one more BT for calling, as Ignite Grande is single-chip BT calling smartwatch.

FEATURES

Built in watch faces

• Touch and hold on the home screen
• You will enter the ‘Watch face’ menu
• Scroll & select your favourite screen

Customize watch faces in the app

• Go to the ‘Glory Fit’ app > Device > Watch faces
• Pick your choice of dial
• You also can customize your screen by clicking on Custom dial

Pedometer/distance/calories burnt

• Swipe from right to left once on the main screen
• You can view all the tracked data of steps, distance, and calories burnt

Blood Pressure

• Swipe from left to right once on the main screen
• Scroll & select ‘BP’ option
• You can measure your Blood Pressure level

Heart Rate

• Swipe from right to left twice on the main screen
• You will be able to measure your Heart Rate
  Automatic tracking on the app

• Open the ‘Glory Fit’ app > Device > Heart rate setting
• Enable the Automatic option

Note: Enable the Maximum heart rate reminder option, to receive a prompt when your heart rate reading crosses 1 8 0 .

Blood Oxygen (Sp02)

• Swipe from right to left thrice on the main screen
• You can check your blood oxygen level
  Automatic tracking on the app
• Open the ‘Glory Fit’ app > Device > Blood oxygen setting
• Enable the Automatic setting
• You can even set the time period & cycle for the Blood oxygen monitor

Sleep Monitoring

• Swipe from right to left for 4 times on the main screen
• You can see the number of hours slept and also the light & deep sleep analysis

Breath Training

• Swipe from left to right once on the main screen
• Scroll & select the ‘Breath Training’ option
• Tap to start the breath training
• You can also select the duration and also the rhythm of training

Respiratory rate

• Swipe from left to right once on the main screen
• Scroll & select the ‘RESP’ option
• You can check your respiratory rate

Sports Mode

• Swipe from left to right once on the main screen
• Scroll & select the Training’ option to explore 24 different sports modes

Stress Monitor

• Swipe from left to right once on the main screen
• Scroll & select the ‘Stress’ option
• You can check your Stress level
  Automatic tracking on the app
• Open the ‘Glory Fit’ app > Device > Emotional Stress
• Enable the Automatic setting
• You can even set the time period & cycle for the Stress Monitor

OTHER FEATURES

How to access the Control Centre

• Swipe from top to bottom once on the main screen to enter Menu

Weather

• Swipe from right to left for 5 times from the main screen
• You can check for the forecast update

Flashlight

• Swipe from top to bottom once on the main screen
• Enable/Disable the Flashlight to turn on/off the light

DND

• Swipe from top to bottom once on the main screen
• Enable DND mode, to avoid the unwanted notifications

Brightness

• Swipe from top to bottom once on the main screen
• Click on the Brightness icon
• Adjust the brightness as required

Find Phone

• Swipe from top to bottom once on the main screen
• Click on the Find Phone icon
• Your phone will start ringing

Menu style

• Swipe from top to bottom once on the main screen
• Tap on the Menu style icon to change the menu theme

Settings

• Swipe from top to bottom once on the main screen
• Tap on the ‘Settings’ icon to explore more things

Screen off time

• Swipe from top to bottom once on the main screen
• Tap on the Settings icon > Bright screen
• You can set the screen off time ranging from 5 secs to 15 secs.

Music

• Swipe from left to right once on the main screen
• Scroll & select the ‘Music’ option
• You can now control the volume, play/pause or even change tracks from the watch

Note: You can play the songs on the watch, as it has got in-built speaker, but the Phone option should be enabled.

Phone

• Swipe from left to right once on the main screen
• Tap on the Phone icon > Enable the switch to access the calling feature on the watch.
• As this i s a single-chip BT calling smartwatch, you need not connect to a second Bluetooth.
• You get to explore 3 options > Dial pad, Call records, & contacts.
• You can either dial a number directly or access the Address book synced from the app.
• You also get to view the recent call logs.

Note: You have to synch the contact numbers from the phone to the app. Go to the ‘Glory Fit’ app > Device > Address book > You can sync up to 100 contacts on the watch.

Notifications

• Go to ‘Glory Fit’ app > Device > App
• Enable all the apps you wish to receive the notifications
• On the watch, swipe from bottom to top once on the main screen
• You will get to see all the notifications received from the selected apps.

Camera Shutter

• Go to ‘Glory Fit’ app > Device > More settings > Shake to take pictures
• Allow app to access Camera
• Shake your wrist to take a picture

Alarm

• Swipe from left to right once on the main screen
• Scroll & select ‘Alarm clock’ option
• You can customize your alarm or even delete the older ones

Stopwatch

• Swipe from left to right once on the main screen
• Scroll & select the ‘More’ option > Stopwatch
• Click on the Play button to activate
• You also have pause, and reset options

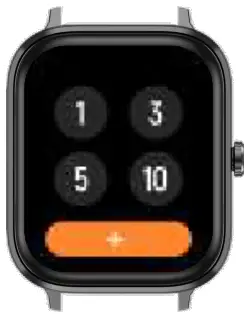

Timer

• Swipe from left to right once on the main screen
• Scroll & select the ‘More’ option > Timer
• Click on the time & tap to start the timer

Reset

• Swipe from top to bottom once on the main screen
• Tap on the settings icon > Reset
• Click on‘’ to reset the smartwatch

Power Off

• Swipe from top to bottom once on the main screen
• Tap on the settings icon > Off
• Click on ‘’ to turn off the smartwatch

Disclaimer

• Optical sensors present on the back of the smartwatch are used to track the health vitals, do not rely on them for medical purposes.
• Cross beats will not be responsible for in-app purchases made via the Glory Fit app.
• Cross beats does not save your personal data and is not responsible for any data stored on Glory Fit app.
• Battery life may vary depending on usage patterns.
• The watch charging time might slightly vary depending on how much battery percentage has been depleted and the voltage supply for a charge.
• To receive notifications, calls and other alerts ensure your data and Bluetooth connections are stable.
• Our smartwatches are waterproof and are not suitable for diving. Also using them in the shower with harsh chemicals can damage the watch.
• Use the smartwatch with appropriate apps to achieve the best results.
