Product Guide
VITM-ROSE
Vitesse Modular Ceiling Rose
Contents

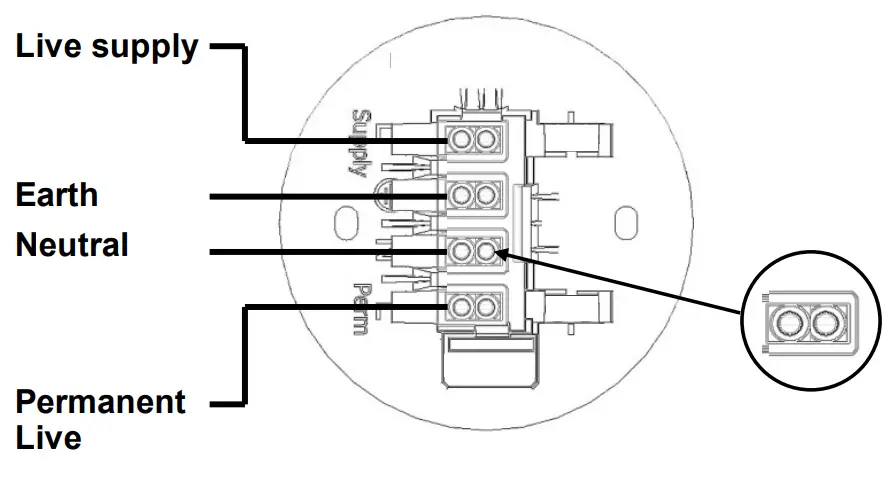

VITM-ROSE mains wiring
Each pole has two screw terminals. Each terminal accepts 1 x 2.5mm²

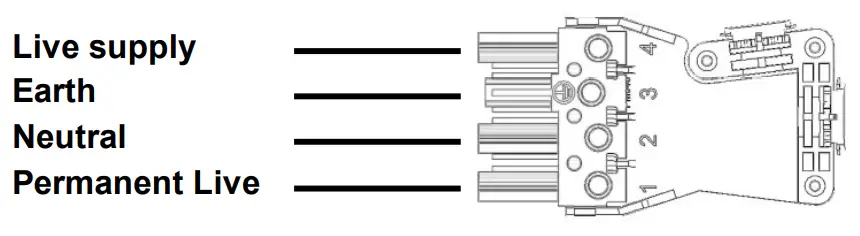

VITM-ROSE connector wiring
Conduit box to VITM4-S or VITM6-S connection
Use a VITM-ROSE when there is a need to take power from a conduit box. Plug the connector into the VITM-ROSE and wire the other end of the lead into the terminals of the VITM4-S (illustrated below) or VITM6-S. Pre-wired versions are available, VITM4-SL1 VITM6-SL1. See Product Guides for the VITM4-S and VITM6-S wiring details.
Technical data
| Voltage | 230VAC +/- 10% |
| Frequency | 50Hz |
| Terminal capacity | 2.5mm² |
| Temperature | 0ºC to 35ºC |
| Power | 16A |
| Compliance | LVD-2014/35/EU |
For further compliance information visit
www.cpelectronics.co.uk/compliance
For lighting purposes only with suitable circuit protection. For fixed wiring only.
