SPARE PARTS
| Rep | 70 x 70 | 80 x 80 | 90 x 90 | 100 x 80 | Qté | ||||
| BAS/LOW | HAUT/HIGH | BAS/LOW | HAUT/HIGH | BAS/LOW | HAUT/HIGH | BAS/LOW | HAUT/HIGH | ||

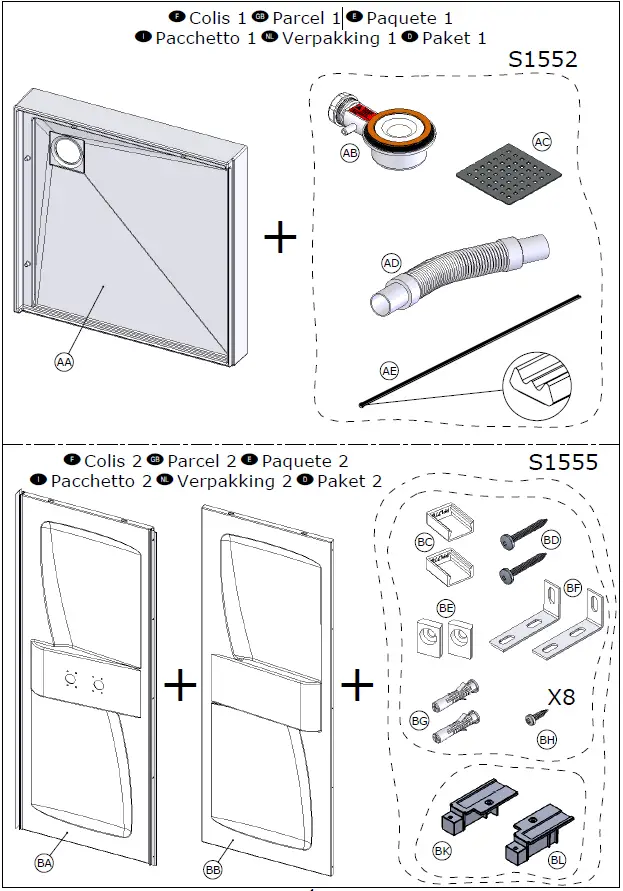

| COLIS 1 | |||||||||
| AA | REC417 | REC423 | REC418 | REC424 | REC419 | REC425 | REC420 | REC426 | 1 |
| AB | BOND14 | 1 | |||||||
| AC | TOL54 | 1 | |||||||
| AD | TUY62 | 1 | |||||||
| AE | JOI292 | 1 | |||||||
| COLIS 2 | |||||
| BA + BB | CP846 | CP847 | CP848 | CP849 | 1 |
| BC | PPL776 | 2 | |||
| BD | VIS41 | 2 | |||
| BE | PPL775 | 2 | |||
| BF | EQU68 | 2 | |||
| BG | CHE02 | 2 | |||
| BH | VIS 3,5×25 | 8 | |||
| BK | PPL735 | 1 | |||
| BL | PPL736 | 1 | |||

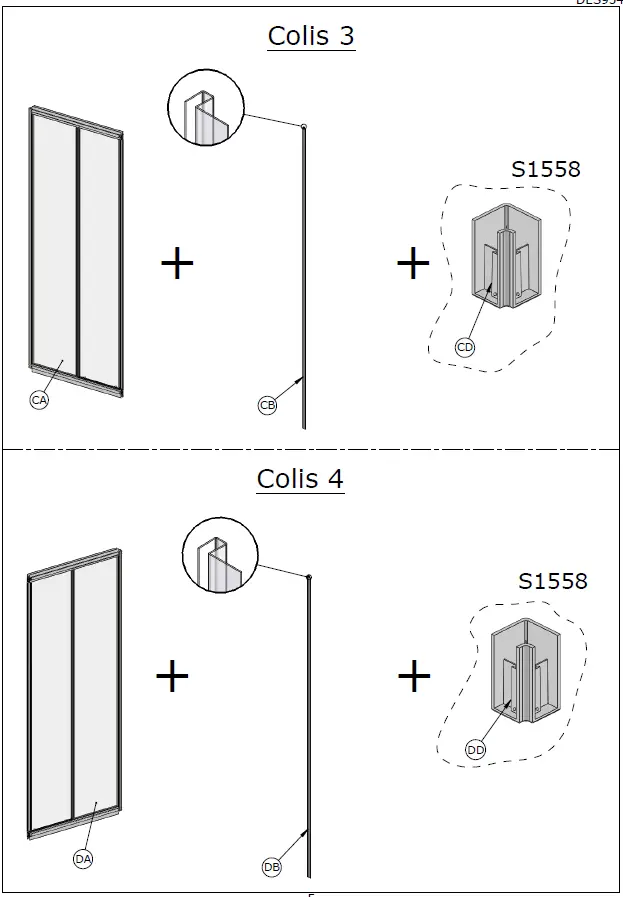

| COLIS 3 | ||||||
| CA | TN | C8718 | C8720 | C8731 | C8720 (80) | 1 |
| DT | C8719 | C8730 | C8732 | C8730 (80) | 1 | |
| CB | JOI233 | 2 | ||||
| CD | PPL743 | 1 | ||||
| COLIS 4 | ||||||
| DA | TN | C8379 | C8380 | C8381 | C8382 (100) | 1 |
| DT | C8383 | C8384 | C8385 | C8386 (100) | 1 | |
| DB | JOI233 | 2 | ||||
| DD | PPL743 | 1 | ||||
| BOITE | ||||||
|
EA |
SANS Mitigeur | SET48 | 1 | |||
| Mitigeur MECA | SET50 | 1 | ||||
| itigeur THERM | SET51 | 1 | ||||
| EB | ECR72 | 6 | ||||
| EC | TUY60 | 1 | ||||
| ED | TUY61 | 1 | ||||
| EE | CAP18 | 4 | ||||
| EF | VIS200 | 6 | ||||
| EG | KIT109 | 1 | ||||
| EH | KIT212 | 1 | ||||
| EI | FLEX05 | 1 | ||||
Parcel 1
Colis 3
BOITE
Tools required
REVERSIBILITY

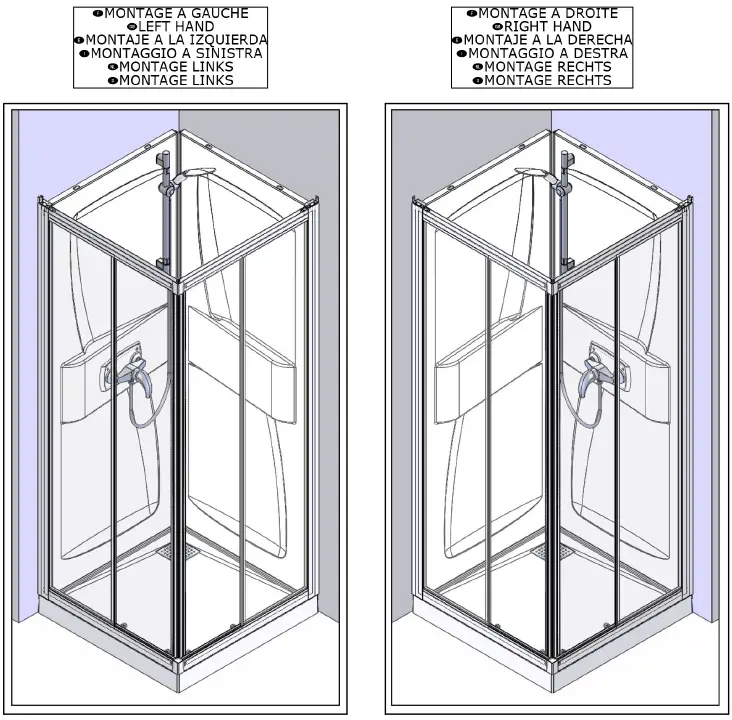

This cubicle can be installed either left or right hand. These installation instructions show a left hand installation.
INSTALLATION
Due to transportation and various product handling issues, we strongly recommend that you check that each connection is properly tightened in order to avoid any potential leakage problems when put under pressure.
You can choose the position of the shower bar.
FOR THE ELECTRONIC PROTECTION OF YOUR SHOWER, THE METAL PARTS OF YOUR PRODUCT SHOULD BE CONNECTED TO THE EQUIPOTENTIAL CIRCUIT OF YOUR INSTALLATION.
