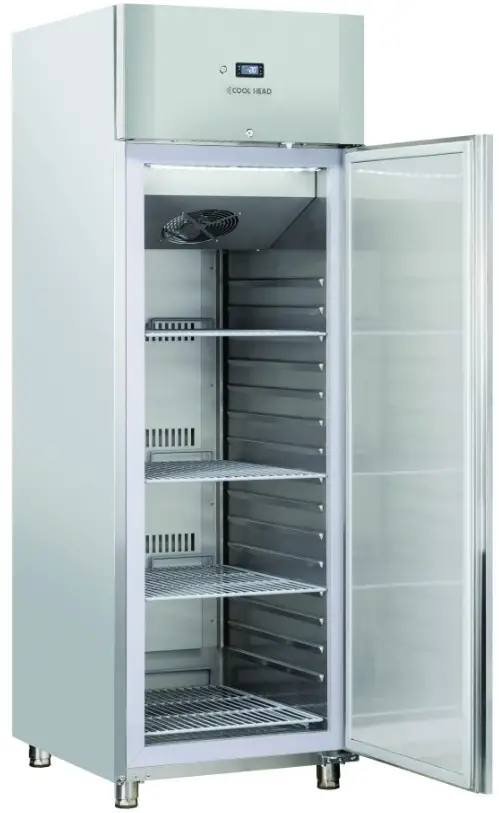

COOL HEAD QNG 6 GN2 1 Freezer Upright Cabinet Owner’s Manual
Contents
GENERAL FEATURES
- GN2/1 Freezer upright cabinet (GLASS DOOR): •
- Stainless Steel exterior and interior: •
- Plastic thermal-braker as chamber body frame (Heated): •
- Ventilated Cooling: •
- Evaporator with anti-corrosion treatment: •
- Hot gas defrost system: •
- Foaming Agent Cyclopentane (80mm): •
- Curved edge for easy cleaning: •
- Digital Thermostat: •
- White backlit main switch: •
- LED light and lock fitted as standard: •
- Removable Gasket: •
- Glass Door: with Self closing and heated frame (Not reversable): •
- Foamed door handle: •
- Adjustable shelves GN2/1: 3 + 1: •
- N.4 S/S Adjustable feet – (Lockable castor as Optional): •
- Energy efficiency class: E: •
TECHNICAL SPECIFICATIONS
Capacity: 546 L
Temperature: -15° – -20°C
Consumption: 7.31 kWh/24h
Rated Power: 470W
Noise level: 50 dB(A)
Net Weight: 114.50 Kg
Gross Weight: 133.00 Kg
External Dimensions (WxDxH mm): 700x834x2045
Internal Dimensions (WxDxH mm): 534x685x1485
Packaging dimensions (WxDxH mm): 720x860x2110
Loading quantities 20’/40’/40’HQ: 21/43/43
CERTIFICATION
DETAILS
- The items can be supplied either with adjustable feet or lockable castor

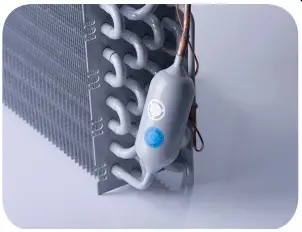

- Evaporator with anti-corrosion treatment
- Inner stainless steel waved guides

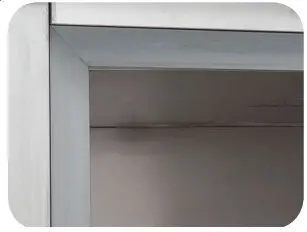

- Anti-condensation “thermal-braker” on door frame

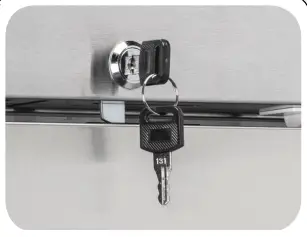

- Lock fitted as standard

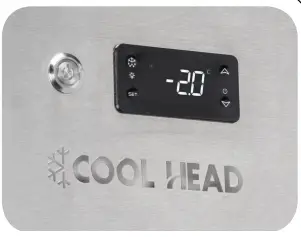

- Digital control and white backlit main switch

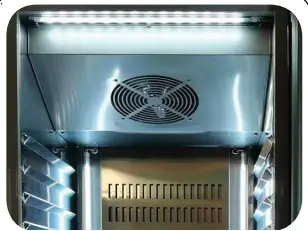

- Inner LED light
- Cabinet suitable for GN2/1 pans

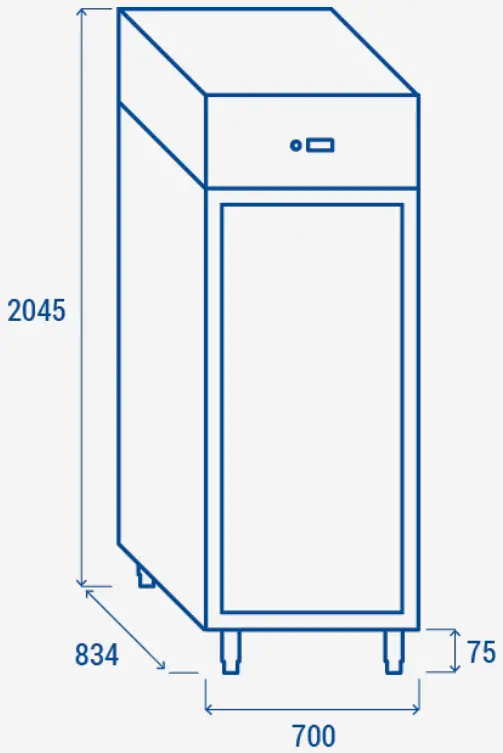

PRODUCT DIMENSIONS
