CONEC Product Name Industrial Duplex LC Receptacle Cover Ass 17-300400 Industrial Duplex LC Receptacle Plus Cover Assembly Kit Instruction Manual

CONEC Product Name Industrial Duplex LC Receptacle Cover Ass 17-300400 Industrial Duplex LC Receptacle Plus Cover Assembly Kit

OVERVIEW

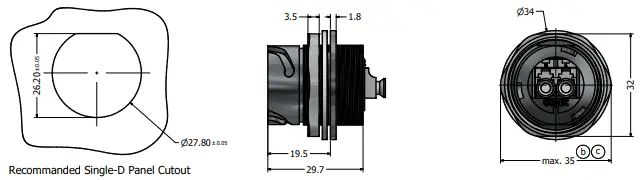

DIMENSION

Product Information

• Product Name: IP67 Industrial Duplex LC Receptacle + Cover Assembly Kit A
• Part Number: 17-300380 (Single Mode), 17-300390 (Multi Mode), 17-300400 (APC Single Mode)
• Material and Finish:
  • Receptacle Housing & Protective Cover: Zinc Die-Cast, Nickel Plated
  • Ball Chain Assembly: Copper Alloy and Stainless Steel, Nickel Plated
  • Panel Nut: Brass, Finish: Nickel Plated
  • Panel Gasket: Silicon, Color: White
  • Duplex LC Adaptor Assembly Housing: Mod. PPO, UL94 V-0
• Connector can be front or rear mounted to a maximum panel thickness of 3.2mm.
• IP67 rated when covered or fully mated with the appropriate mating connector.

Product Usage Instructions

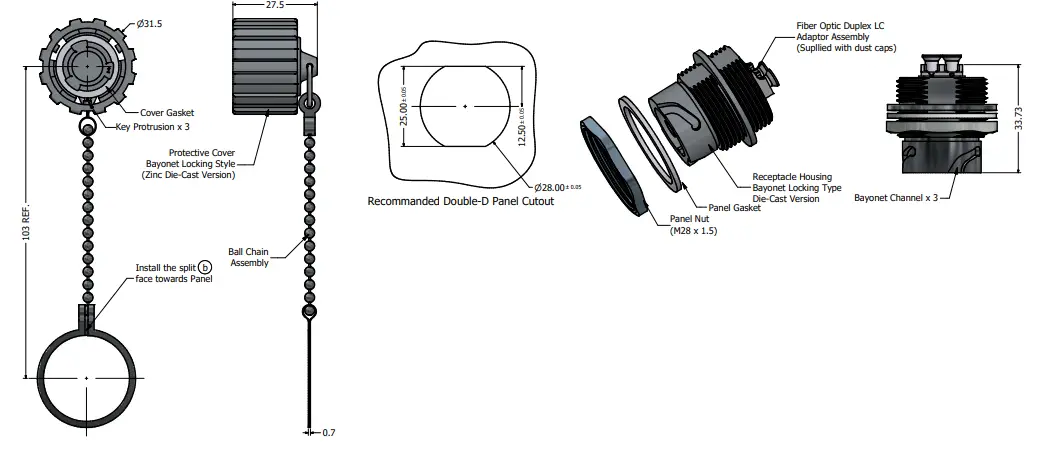

1. Install the split b Assembly with the face towards Panel.
2. Place the Fiber Optic Duplex LC Adaptor Assembly (supplied with dust caps) in the recommended Double-D Panel Cutout.
3. Insert the Receptacle Housing Bayonet Locking Type Die-Cast Version Panel Gasket and Panel Nut (M28 x 1.5) in the panel cutout.
4. Insert the Nickel Plated Die-Cast Duplex LC Receptacle + Cover Assembly in the panel cutout, ensuring that it is fully mated with the appropriate mating connector to achieve the IP67 rating.

Notes:

1. Material and Finish:
   1. Receptacle Housing & Protective Cover: Zinc Die-Cast, Nickel Plated
   2. Ball Chain Assembly: Copper Alloy and Stainless Steel, Nickel Plated
   3. Panel Nut: Brass, Finish: Nickel Plated
   4. Panel Gasket: Silicon, Color: White
   5. Duplex LC Adaptor Assembly:
   6. Housing: Mod. PPO , UL94 V-0,
      Color: SM Blue/MM Beige/APC SM Green
   7. Alignment Sleeves: SM Ceramic/MM Phosphor Bronze
   8. Dust Cap: PP, Color: Neutral transparent
   9. Operating Temperature: -40°C to +85°C
2. Connector can be front or rear mounted to a maximum panel thickness of 3.2mm.
3. IP67 rated when covered or fully mated with the appropriate mating connector

Description	Part Number
Nickel Plated Die-Cast Duplex LC Single Mode Receptacle + Cover Assembly	17-300380
Nickel Plated Die-Cast Duplex LC Multi Mode Receptacle Cover Assembly	17-300390
Nickel Plated Die-cast Duplex LC APC Single Mode Receptacle Cover Assembly	17-300400
