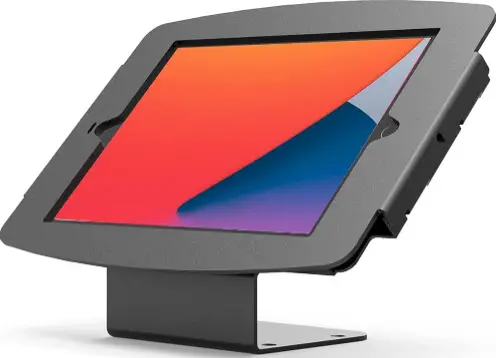

compulocks 303W209IPDSW Space 360 Tablet Security Enclosure
Product Information
- Product Name: 360Stand
- SKU: 303
Assembly Instructions

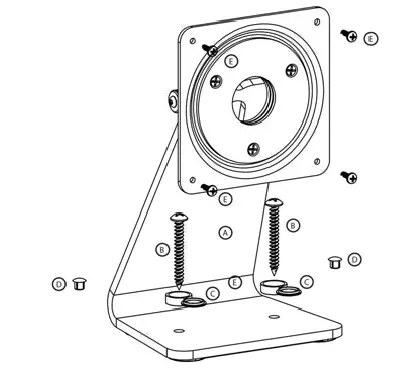

- Exploded View:

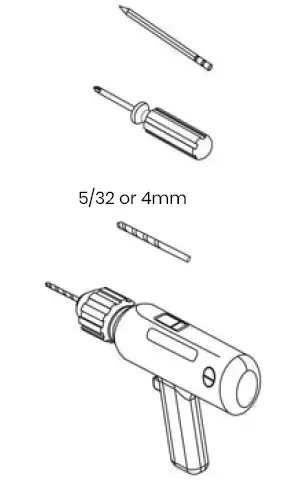

- Recommended Tools: LOVEITLOCKIT, 5/32 or 4mm

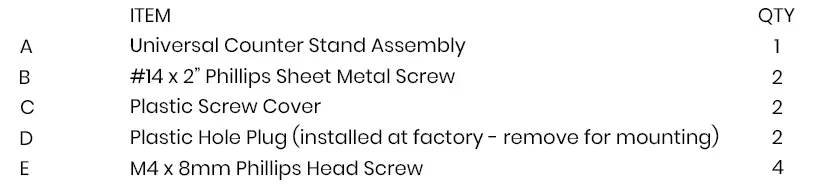

Parts List
| ITEM | QTY | |
|---|---|---|
| A | Universal Counter Stand Assembly | 1 |
| B | #14×2 Phillips Sheet Metal Screw | 2 |
| C | Plastic Screw Cover | 2 |
| D | Plastic Hole Plug (installed at factory – remove for mounting) |
2 |
| E | M4x8mm Phillips Head Screw | 4 |

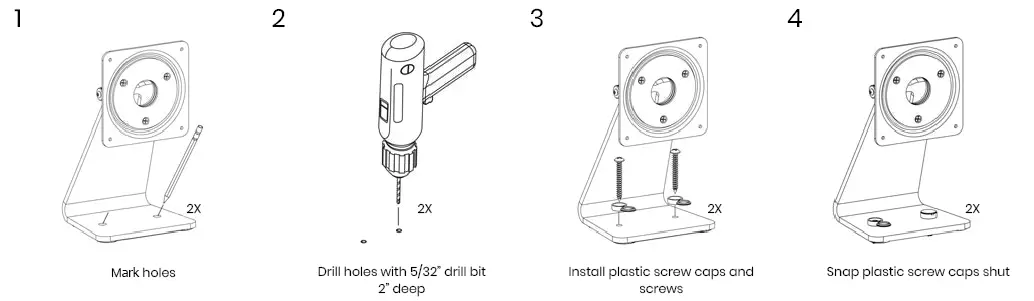

Table Top Mounting
- Mark holes
- Drill holes with a 5/32 drill bit, 2 deep

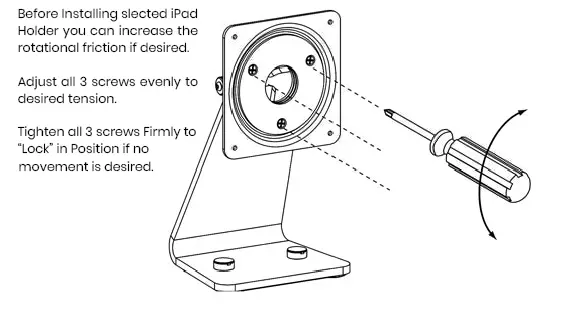

- Adjust tension and position
- Before installing selected iPad Holder, you can increase the rotational friction if desired.
- Adjust all 3 screws evenly to desired tension.
- Tighten all 3 screws firmly to lock in position if no movement is desired.
- Install plastic screw caps and screws

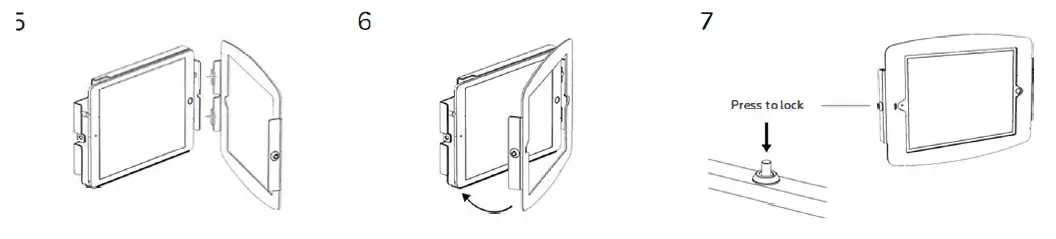

Enclosure Mounting
- Snap plastic screw caps shut

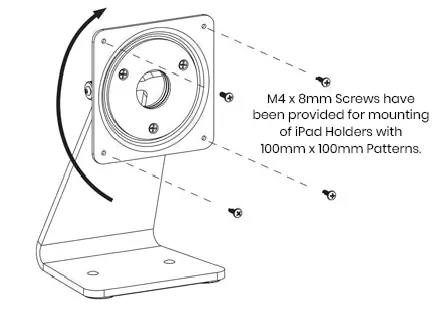

- M4x8mm screws have been provided for mounting of iPad Holders with 100mm x 100mm patterns.
Exploded View
Recommended Tools
Parts List
Table Top Mounting
Adjust Tension and Position
Enclosure Mounting
