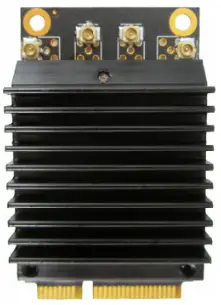

COMPEX WLW7002E25 Leader in OEM ODM Wireless Integration
Specifications
- Hardware Guide: hWarLdWw7a0re02guEi2d5e
- Component Map:
- CH0
- CH1
- CH2
- CH3
- Power Requirements:
- DC Power
- 5V (Max)
- Power Consumption: 13.3W

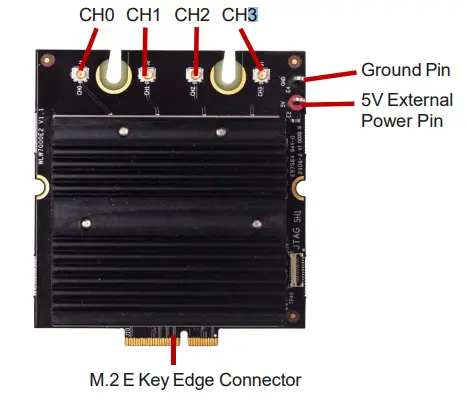

Component Map
Power Requirements
- DC Power: 5V (Max)
- Power Consumption 13.3W
For the customer who wants to use a 5V External Power Pin, please make sure pins 15, 17, 19, 21 and 23 were not connected with your board.
Edge Connector PinAssignment
| M.2 edge connector pin assignment | |||
| Top side | Bottom side | ||
| 1 | GND | 2 | VDD_3V3 |
| 3 | REFCLK_IO_P0 | 4 | VDD_3V3 |
| 5 | REFCLK_IO_N0 | 6 | PCIE_LED0(GPIO25) |
| 7 | GND | 8 | NC |
| 9 | PTA2_BT_ACT | 10 | NC |
| 11 | PTA2_BT_PRIO | 12 | NC |
| 13 | PTA2_WL_ACT | 14 | WSI_DAT_IN(GPIO48) |
| 15 | VDD_5V | 16 | PCIE_LED1(GPIO26) |
| 17 | VDD_5V | 18 | GND |
| 19 | VDD_5V | 20 | WSI_CLK_IN(GPIO49) |
| 21 | VDD_5V | 22 | NC |
| 23 | VDD_5V | ||
| Mechanical key E | |||
| 33 | GND | 32 | WSI_DAT_OUT(GPIO50) |
| 35 | PCIE0_RX0_P | 34 | NC |
| 37 | PCIE0_RX0_N | 36 | WSI_CLK_OUT(GPIO51) |
| 39 | GND | 38 | NC |
| 41 | PCIE0_TX0_P | 40 | NC |
| 43 | PCIE0_TX0_N | 42 | NC |
| 45 | GND | 44 | PTA1_BT_PRIO |
| 47 | PCIE0_REFCLK_P | 46 | PTA1_WL_ACT |
| 49 | PCIE0_REFCLK_N | 48 | PTA1_BT_ACT |
| 51 | GND | 50 | NC |
| 53 | PCIE0_CLKREQ_N | 52 | PCIE0_RST_N |
| 55 | PCIE0_WAKE_N | 54 | NC |
| 57 | GND | 56 | WLAN_DISABLE |
| 59 | PCIE0_RX1_P | 58 | NC |
| 61 | PCIE0_RX1_N | 60 | NC |
| 63 | GND | 62 | NC |
| 65 | PCIE0_TX1_P | 64 | NC |
| 67 | PCIE0_TX1_N | 66 | NC |
| 69 | GND | 68 | NC |
| 71 | REFCLK_IO_N1 | 70 | NC |
| 73 | REFCLK_IO_P1 | 72 | VDD_3V3 |
| 75 | GND | 74 | VDD_3V3 |
