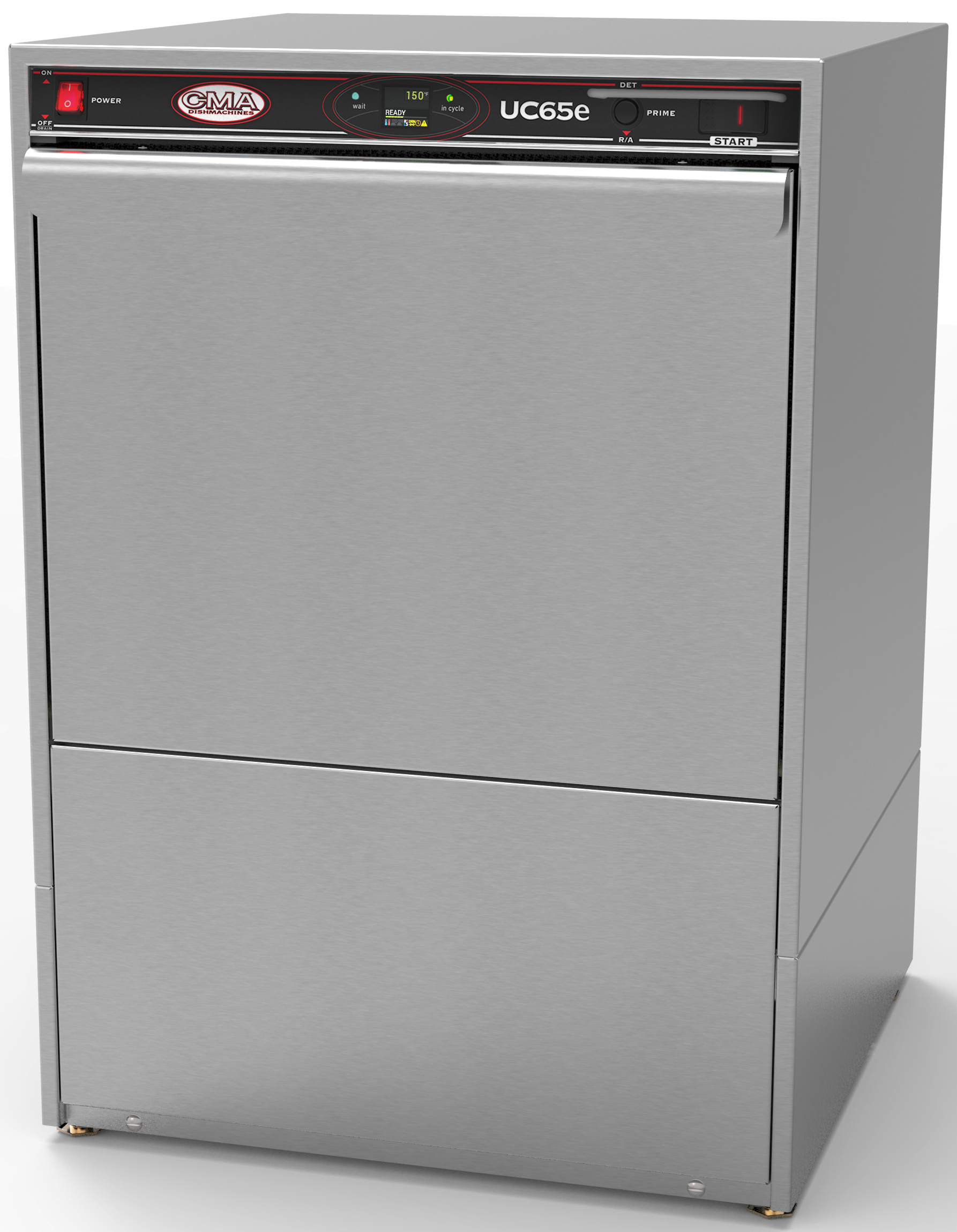

CMA DISHMACHINES UC65e M3 High Temperature Undercounter
Product Information
Specifications
- Model: UC65e M3
- Manufacturer: CMA DISHMACHINES
- Address: 12700 Knott Avenue, Garden Grove, California 92841
- Contact: 800-854-6417
- Website: www.cmadishmachines.com
Product Usage Instructions
Wash Pump/Motor Assembly
The wash pump/motor assembly consists of various components listed in the parts manual. Follow these steps to assemble:
- Refer to the parts manual for the list of components and their corresponding part numbers.
- Ensure all parts are clean and undamaged.
- Begin assembling in the order specified in the manual, starting with the screw and proceeding to the impeller housing cover, nut, washers, impeller, pump seal, gasket, and backing plate.
- Complete assembly by securing all parts as per the manual instructions.
Booster
The booster section includes components for enhancing the dishwasher’s performance. Here’s how to set it up:
- Check the parts manual for the booster components required.
- Inspect each part for any damage or defects.
- Follow the manual’s guidelines to install the thermistor, clamps, hoses, nuts, and thermostat in the correct order.
Control Panel
Setting up the control panel ensures proper functionality of the dishwasher. Here’s a guide:
- Refer to the parts manual to identify all control panel components.
- Inspect each part thoroughly before installation.
- Install switches, labels, screws, facia panels, and other components as per the manual’s instructions.
- Connect all wiring harnesses and jumper wires securely.
Power Wiring Box
The power wiring box is crucial for electrical connections. Here’s how to set it up:
- Review the parts manual to locate all necessary components for the power wiring box.
- Inspect each part for quality and completeness.
- Assemble the connection box, cover, wiring box, and other components following the manual’s step-by-step instructions.
- Ensure all wiring is correctly connected and secured.
Frequently Asked Questions (FAQ)
- Can I use different voltage specifications for the wash pump/motor assembly?
The wash pump/motor assembly is designed for specific voltage requirements. Using different specifications may damage the unit and void the warranty. - How often should I clean the booster components?
It is recommended to clean and inspect the booster components regularly, ideally as part of your routine maintenance schedule to ensure optimal performance. - What should I do if I encounter issues with the control panel display?
If you face any issues with the control panel display, refer to the troubleshooting section in the user manual or contact customer support for assistance.
PART LIST

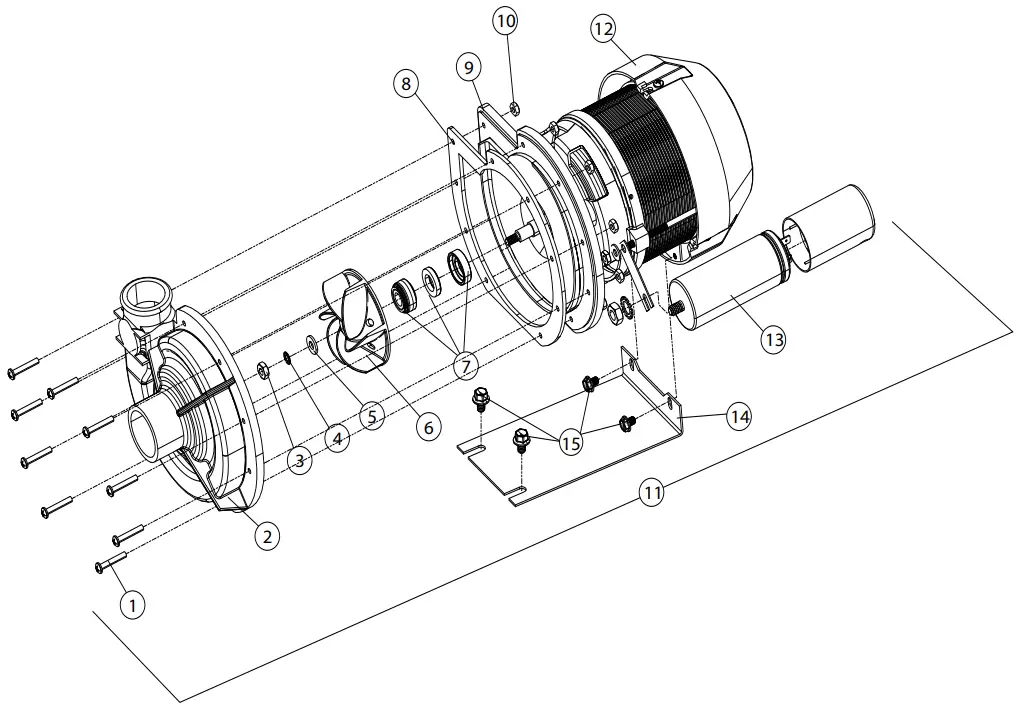

Pump and Motor
| ITEM NO. | NO. REQ’D |
P/N |
DESCRIPTION |
| 1 | 9 | 02103.01 | Screw, M4, Phil, Pan Head |
| 2 | 1 | 02103.02 | Impeller Housing Cover |
| 3 | 1 | 02107.01 | Nut, M6 (Left-hand thread) |
| 4 | 1 | 02103.04 | 1/4″ Lock Washer |
| 5 | 1 | 02103.05 | 17/64″ Plain Washer |
| 6 | 1 | 02107.02 | Impeller |
| 7 | 1 | 02103.07 | Pump Seal |
| 8 | 1 | 02103.30 | Pump Gasket |
| 9 | 1 | 02107.03 | Pump Backing Plate |
| 10 | 9 | 02103.08 | Nut, M4 |
| 11 | 1 | 02103.10 | Pump Motor Assm, 220V |
| 12 | 1 | 02103.37 | Motor Fan Cover |
| 13 | 1 | 02103.11 | Capacitor, 16 μF |
| 14 | 1 | 02107.04 | Wash Pump Bracket |
| 15 | 2 | 02107.05 | Bolt, Hex Flange 1/4-20 X 3/8″ SST |
| *** | 02103.10 | Motor unavailable as separate part |

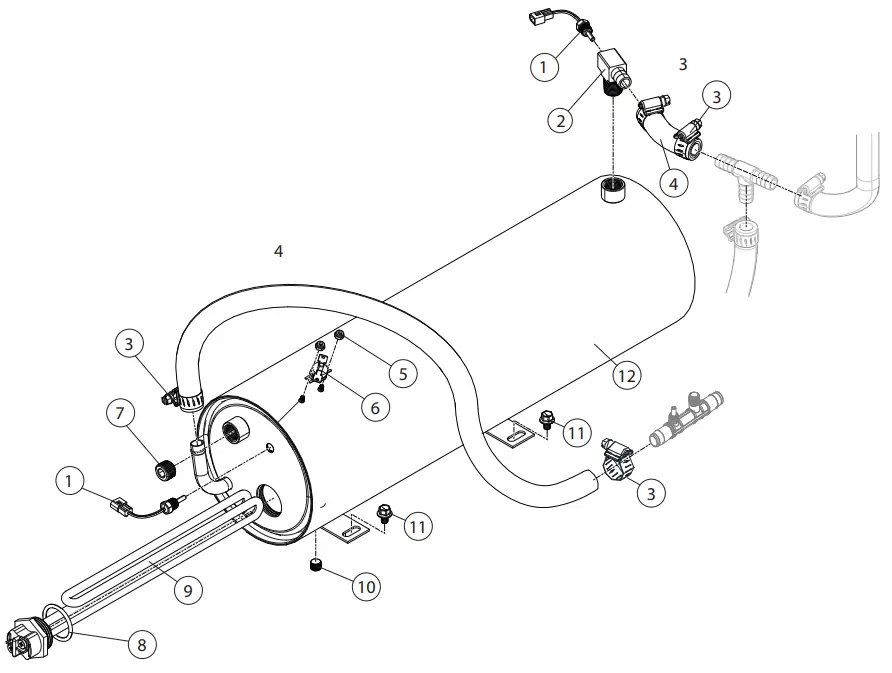

Booster
| ITEM NO. | NO. REQ’D |
P/N |
DESCRIPTION |
| 1 | 1 | 02107.0 | Thermistor |
| 2 | 1 | 02107.11 | Tee, Rinse |
| 3 | 4 | 02103.21 | Clamp, Hose |
| 4 | A/R | 03107.50 | Hose, Rubber 1/2″x0.84″ OD |
| 5 | 2 | 00965.00 | Nut, Grip 6-32 W/ Nylon Insert SS |
| 6 | 1 | 02103.19 | Thermostat, High Limit 240f |
| 7 | 1 | 03232.00 | Plug, 1/8″ |
| 8 | 1 | 02103.14 | Gasket |
| 9 | 1 | 02103.12 | 4kW 208V 40Rise Element *** |
| 10 | 1 | 02107.09 | Plug, 1/8 Hex Countersunk SS |
| 11 | 2 | 02103.16 | Bolt, Hex Flange, 1/4-20×3/8″ SS |
| 12 | 1 | 02106.01 | Booster Tank, Welded |

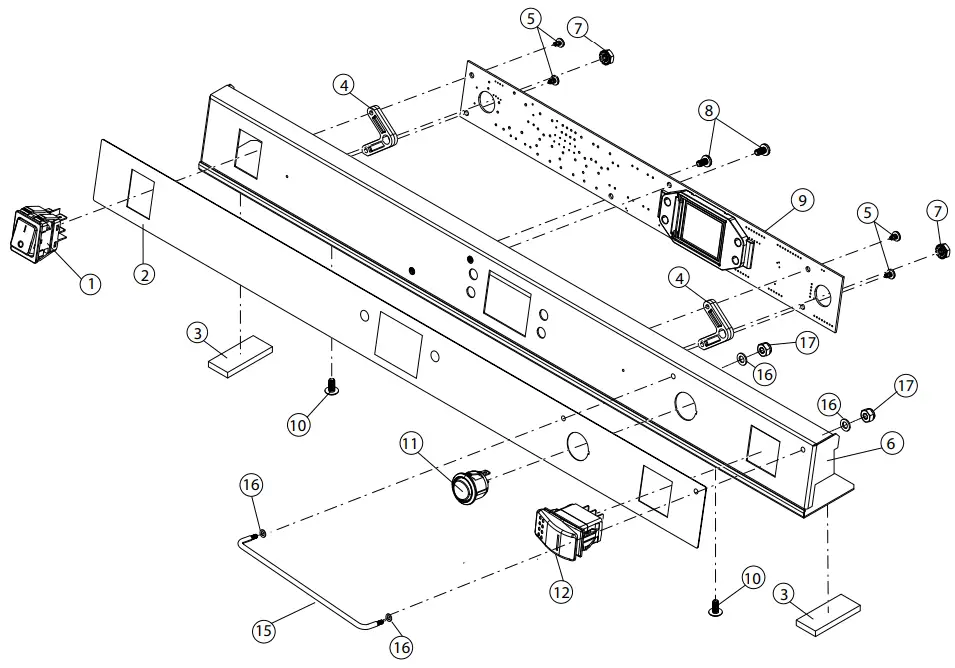

Control Panel
| ITEM NO. | NO. REQ’D |
P/N |
DESCRIPTION |
| 1 | 1 | 02107.15 | Switch, Rocker DPST 250V Neon |
| 2 | 1 | 02106.51 | Label, Facia UC65e M3 |
| 3 | 2 | 02103.58 | Gasket, Steam |
| 4 | 2 | 02107.17 | Standoff, LED Display Board |
| 5 | 4 | 02104.91 | Screw, 6-18×1/4″ Panhead Phil SS |
| 6 | 1 | 02106.52 | Panel, Facia UC65e M3 |
| 7 | 2 | 02104.68 | Nut, 10-32 |
| 8 | 2 | 02107.20 | Screw, #8 x 3/8″ |
| 9 | 1 | 02107.21 | Kit, Control Board |
| 10 | 1 | 00911.10 | Screw, 8-32×3/8 Truss HD |
| 11 | 1 | 02103.57 | Prime Switch |
| 12 | 1 | 02103.51 | Contact, Switch Momentary (N.O.) |
| 13 | 1 | 02103.52 | Housing, Push Button Switch |
| 14 | 1 | 02103.53 | Push Button, Green |
| 15 | 1 | 03485.00 | Switch Guard |
| 16 | 4 | 04086.00 | #10 Washer |
| 17 | 2 | 03801.00 | 10-32 Lock Nut |
| — | 1 | 02107.22 | Harness, Switch – NOT SHOWN |
| — | 1 | 02106.83 | Harness, Sensor – NOT SHOWN |
| — | 1 | 02107.10 | Harness, Main – NOT SHOWN |
| — | 1 | 02107.10 | Jumper Wire – NOT SHOWN |

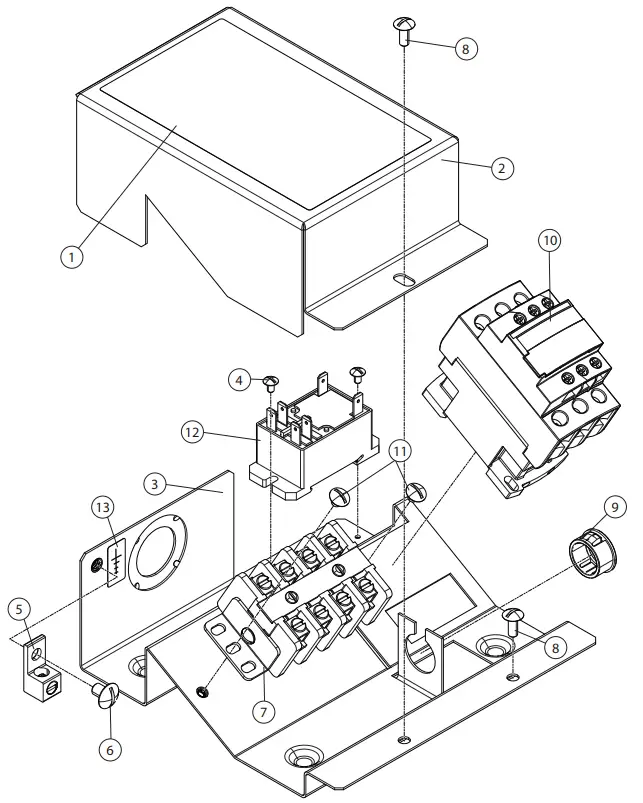

Power Wiring Box
| ITEM NO. | NO. REQ’D |
P/N |
DESCRIPTION |
| 1 | 1 | 02106.02 | Label, Connection Box |
| 2 | 1 | 02106.03 | Cover, Box Wiring |
| 3 | 1 | 02106.04 | Box, Wiring |
| 4 | 2 | 00421.51 | Screw, 6-32 X 1/4″ |
| 5 | 1 | 13426.50 | Lug, Ground |
| 6 | 1 | 00905.82 | Screw, 1/4-20 X 3/8″ |
| 7 | 1 | 02106.05 | Block, Terminal 4-Pole |
| 8 | 2 | 00940.50 | Screw, 10-32 X 3/8″ Truss Head |
| 9 | 1 | 02106.15 | Bushing, Strain Relief, Small |
| 10 | 1 | 02103.48 | Contactor, 3-Pole, 25/40A, 120VAC Coil |
| 11 | 2 | 00940.00 | Screw, 10-32 X 1/4″ |
| 12 | 1 | 02106.06 | Relay, DPDT, 30A, 120VAC Coil |
| 13 | 1 | 06202.46 | Label, Ground |

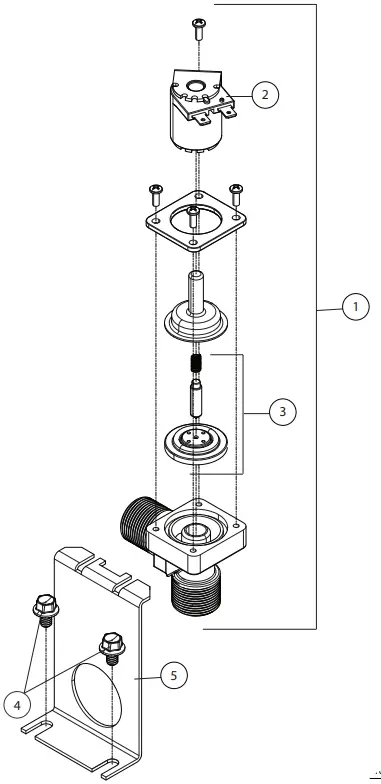

Fill Solenoid Valve – Effective October 2022
| ITEM NO. | NO. REQ’D |
P/N |
DESCRIPTION |
| 1 | 1 | 03603.10 | Water Valve 1/2″ 115V JE Complete |
| 2 | 1 | 00738.10 | Solenoid Coil, 115VAC |
| 3 | 1 | 03603.20 | 1/2″ Water Solenoid Bonnet |
| 4 | 1 | 00786.00 | JE Water Valve Plunger & Spring |
| 5 | 1 | 00707.00 | 1/2″ Water Solenoid Valve Repair Kit |
| 6 | 1 | 40013.00 | Fitting, Barb Hose |
| 7 | 1 | 02106.11 | Bracket, Valve, UC65e |
| 8 | 2 | 02103.16 | Bolt, Hex Flange 1/4-20×3/8″ |
| 9 | 1 | 03604.50 | Fitting, Flow Disc |
| 10 | 1 | 03604.10 | Washer, Flow Disc |
Fill Valve
| ITEM NO. | NO. REQ’D |
P/N |
DESCRIPTION |
| 1 | 1 | 02106.53 | Water Valve 115V, Incl Items 2 & 3 |
| 2 | 1 | 02106.54 | Coil, 115VAC/60/1, 7W |
| 3 | 1 | 02106.55 | Solenoid Repair Kit |
| 4 | 2 | 00906.52 | Bolt, Hex Flange, 1/4-20X3/8″ SS |
| 5 | 1 | 02106.56 | Bracket, Fill Valve |

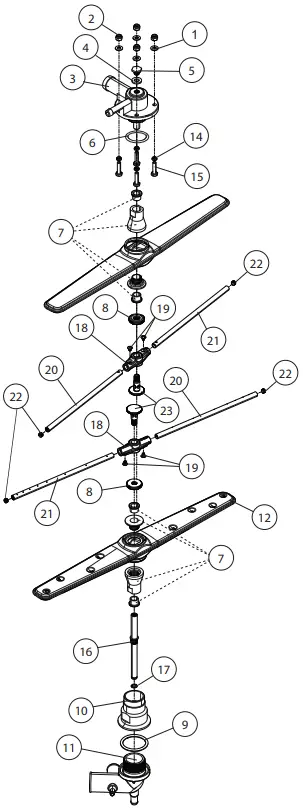

Wash and Rinse Spray Assemblies
| ITEM NO. | NO. REQ’D |
P/N |
DESCRIPTION |
| 1 | 4 | 00426.00 | Washer, 5/16″ SS |
| 2 | 4 | 00912.00 | Nut, 1/4-20 Nylon Lock |
| 3 | 1 | 02103.77 | Hub, Upper Wash Arm |
| 4 | 1 | 02103.78 | Washer, Packing |
| 5 | 1 | 02103.79 | Screw, Retaining |
| 6 | 1 | 02103.83 | O-Ring, 2-1/8″ OD X 1-3/4″ ID X 3/16″ |
| 7 | 2 | 02103.82 | Bearing Assembly |
| 8 | 2 | 02103.98 | Spacer, Nut |
| 9 | 1 | 02103.83 | O-Ring, 2-1/8″ OD X 1-3/4″ ID X 3/16″ |
| 10 | 1 | 02103.84 | Hub, Lower Wash Arm |
| 11 | 1 | 02103.85 | Manifold, Lower FWR |
| 12 | 2 | 02103.86 | Wash Arm Assm, (Incl Item #7) |
| 14 | 4 | 02103.88 | Washer, Nylite |
| 15 | 4 | 02103.89 | Bolt, 1/4-20 X 1″ |
| 16 | 1 | 02103.90 | Shaft, Lower |
| 17 | 1 | 02103.91 | O-Ring |
| 18 | 2 | 02103.92 | Hub, Rinse Arm Molded |
| 19 | 4 | 02103.93 | Screw, Truss Head 8-32 X 1/4″ |
| 20 | 2 | 02103.94 | Arm, Right-Hand Rinse (7 Jets) |
| 21 | 2 | 02103.95 | Arm, Left-Handed Rinse (8 Jets) |
| 22 | 4 | 02103.96 | Cap, Rinse Arm, 5/16-24 |
| 23 | 4 | 02103.97 | Spindle, Rinse Arm |
| — | – | 02103.99 | Rinse Arm Assm (Incl Items 8, 18-23) |

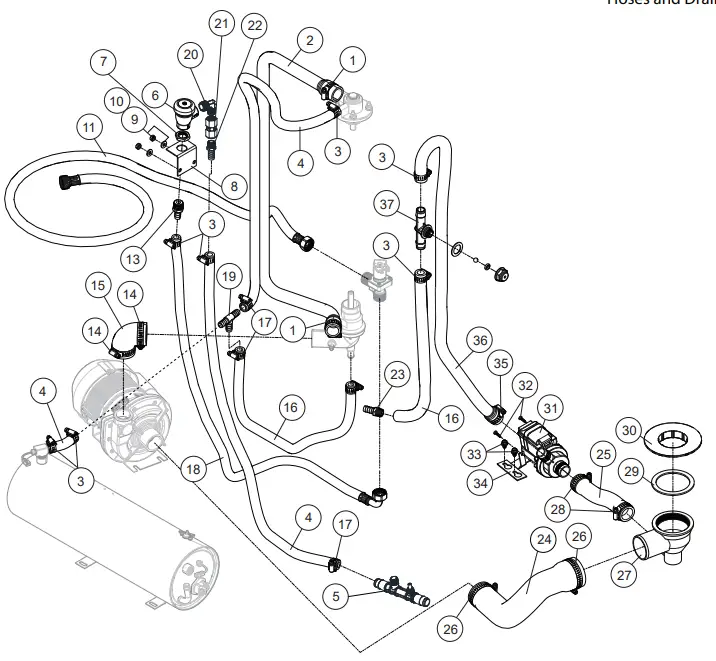

Hoses and Drain Pump
| ITEM NO. | NO. REQ’D |
P/N |
DESCRIPTION |
| 1 | 2 | 50109.00 | Clamp, Hose |
| 2 | 1 | 02103.81 | Hose, Upper Wash Arm |
| 3 | 8 | 02103.21 | Clamp, Hose Gear-type SS |
| 4 | A/R | 03107.50 | Hose, Rubber 1/2″ ID X 0.84″ OD |
| 5 | 1 | 02106.57 | Fitting, Molded Rinse |
| 6 | 1 | 02103.71 | 1/2″ Vacuum Breaker |
| — | — | 02103.72 | Vacuum Breaker Repair Kit |
| 7 | 1 | 00721.00 | Lock Nut, 1/2″ |
| 8 | 1 | 02103.69 | Bracket, Vacuum Breaker |
| 9 | 2 | 02103.04 | Washer, Split 1/4″ SS |
| 10 | 2 | 00923.50 | Nut, Hex 1/4-20 SS |
| 11 | 1 | N/A | Hose, Fill |
| 13 | 2 | 02106.58 | Barb, Hose 1/2″ X 3/8″ MPT |
| 14 | 2 | 50109.00 | Clamp, Hose |
| 15 | 1 | 02104.13 | Hose, Discharge |
| 16 | A/R | 02107.71 | Hose, 5/8″ ID X 1″ OD |
| 17 | 2 | 03101.00 | Clamp, Hose |
| 18 | 1 | 02103.18 | Hose, Booster Fill |
| 19 | 1 | 02106.59 | Tee, 3/4″ Poly |
| 20 | 1 | 02106.60 | Elbow, 1/2MPTx3/8MPT Reduce 90DE |
| 21 | 1 | 02106.61 | Valve, Check 3/8 |
| 22 | 1 | 02106.62 | Hose Barb, 1/2 x 3/8 MPT |
| 23 | 1 | 02106.63 | Coupler, 3/4″MPT x 3/4″ Hose Barb |
| 24 | 1 | 02104.11 | Hose, Suction Wash Pump |
| 25 | 1 | 02104.05 | Hose, Drain Pump Suction |
| 26 | 2 | 02104.10 | Clamp, Hose |
| 27 | 1 | 02104.34 | Elbow, Pump Suction |
| 28 | 2 | 03101.00 | Clamp, Hose Gear-Type |
| 29 | 1 | 02104.35 | Gasket, Pump Suction |
| 30 | 1 | 02104.36 | Flange, Pump Suction |
| 31 | 1 | 02104.07 | Pump, Drain |
| 32 | 2 | 02107.74 | Screw, #8 x 1/2″ Self-Taping |
| 33 | 2 | 02103.16 | Bolt, Hex Flange 1/4-20 x 3/8″ SS |
| 34 | 1 | 02104.06 | Bracket, Drain Pump |
| 35 | 1 | 03101.00 | Clamp, Hose |
| 36 | 1 | 02106.19 | Hose, Drain Molded |
| 37 | 1 | 02106.50 | Anti-Siphon Assembly Complete |

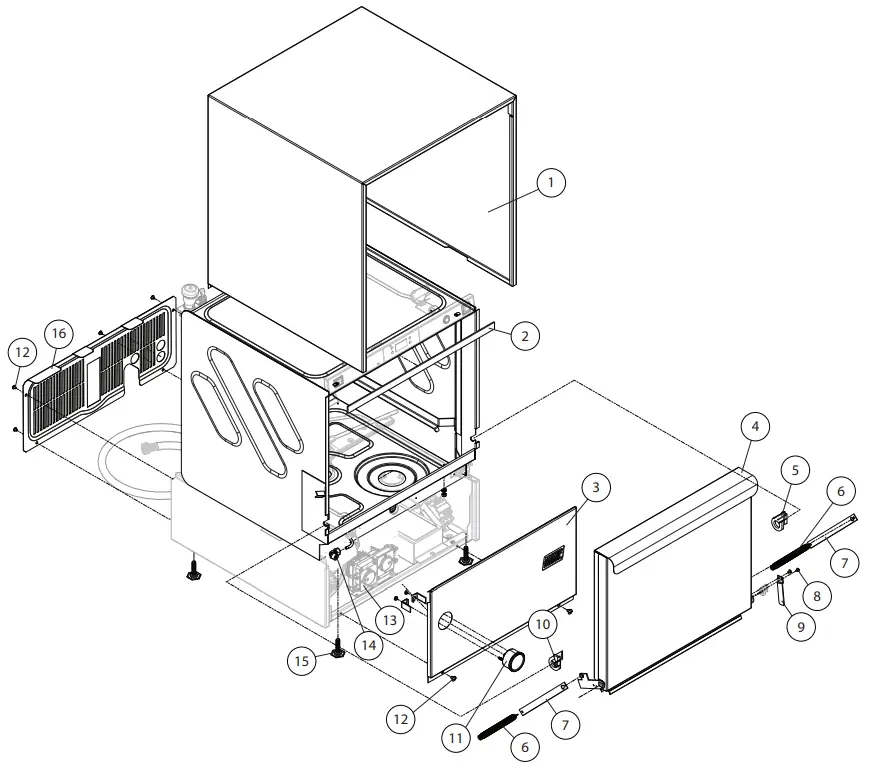

Panels and Door
| ITEM NO. | NO. REQ’D |
P/N |
DESCRIPTION |
| 1 | 1 | 02104.69 | Wrapper, Outer Panel |
| 2 | 1 | 02104.17 | Gasket, Door 1/8″ x 7/8″ x 22-5/8″ |
| 3 | 1 | 02106.64 | Panel, Front |
| 4 | 1 | 02104.73 | Door Welded Assm |
| 5 | 1 | 02104.88 | Seal, Door Hinge RH |
| 6 | 2 | 02104.77 | Spring, Door |
| 7 | 2 | 02104.76 | Arm, Door Spring |
| 8 | 1 | 02106.65 | Screw, 8-32 x 3/16″ Phil SS |
| 9 | 1 | 02104.78 | Activator, Door Switch |
| 10 | 1 | 02104.87 | Seal, Door Hinge LH |
| 11 | 1 | 02104.63 | Gauge, Pressure 0-60PSI |
| 12 | 1 | 00940.50 | Screw, 10-32×3/8″ Truss Head Phil SS |
| 13 | 1 | 00425.54 | Tubing, 1/4″ Natural |
| 14 | 1 | 02106.66 | Adaptor, 1/4″x1/8″NPT Female Plastic |
| 15 | 1 | 02104.67 | Foot, Adjusting |
| 16 | 1 | 02106.13 | Panel, Rear |

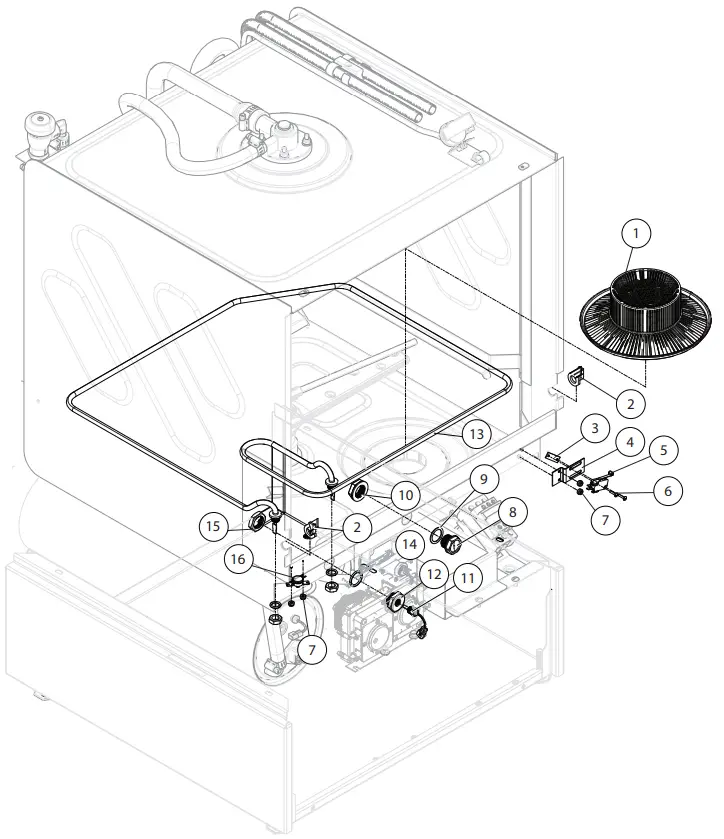

Upper Tank
| ITEM NO. | NO. REQ’D |
P/N |
DESCRIPTION |
| 1 | 1 | 02106.67 | Screen, Scrap |
| 2 | 1 | See Pg10 | Seal, Door Hinge RH & LH |
| 3 | 1 | 02106.68 | Plate, Nut 4-40 |
| 4 | 1 | 02106.69 | Bracket, Switch Door |
| 5 | 1 | 43019.00 | Switch, Door 15A |
| 6 | 2 | 13826.00 | Screw, 4-40×1/2″ Pan Head Phil SS |
| 7 | 2 | 00965.00 | Nut, Grip 6-32 W/ Nylon Insert SS |
| 8 | 1 | 02106.70 | Plug, 1/2″ |
| 9 | 1 | 02106.71 | Gasket, Fiber |
| 10 | 1 | 02106.72 | Nut |
| 11 | 1 | 02107.0 | Thermister |
| 12 | 1 | 02106.73 | Adapter, Thermister |
| 13 | 1 | 02104.18 | Element, Tank 2kW 240VAC |
| 14 | 1 | 02106.74 | O-Ring |
| 15 | 1 | 02106.75 | Nut, 1/2″ NP |
| 16 | 1 | 02104.28 | Thermostat, Fixed Snap, 212°F |

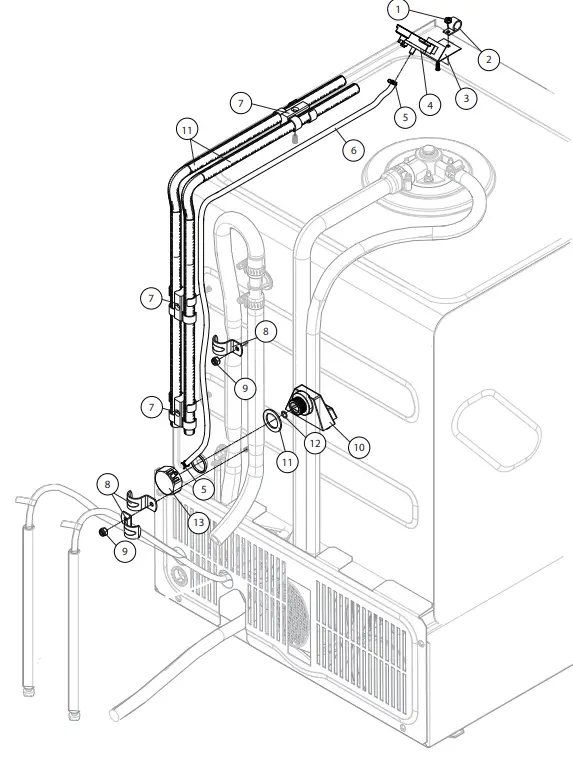

Tank Rear
| ITEM NO. | NO. REQ’D |
P/N |
DESCRIPTION |
| 1 | 1 | 03801.00 | Nut, 10-32 SS |
| 2 | 1 | N/A | Clip |
| 3 | 1 | 02106.76 | Bracket, Sensor |
| 4 | 1 | 02106.77 | Sensor, Level |
| 5 | 1 | 02104.54 | Clamp, Hose |
| 6 | 2 | 02104.56 | Hose, Air |
| 7 | 2 | N/A | Clamp, Double Conduit |
| 8 | 1 | N/A | Clamp, 3/4″ Plated Strap |
| 9 | 1 | 02107.48 | Nut, Grip, 1/4-20 W/ Nylon Insert SS |
| 10 | 1 | 02104.53 | Trap, Air |
| 11 | 1 | 02104.55 | Gasket, Air Trap |
| 12 | 1 | 02104.57 | O-Ring |
| 13 | 1 | 02104.59 | Cover, Air Trap |

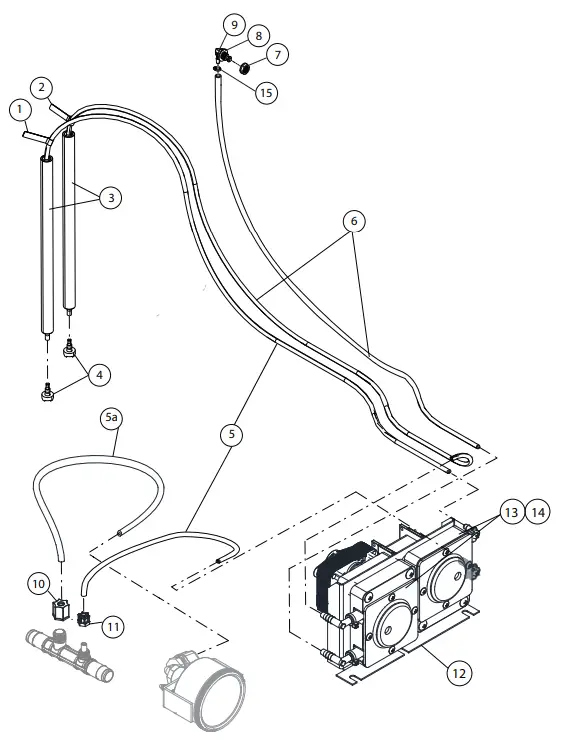

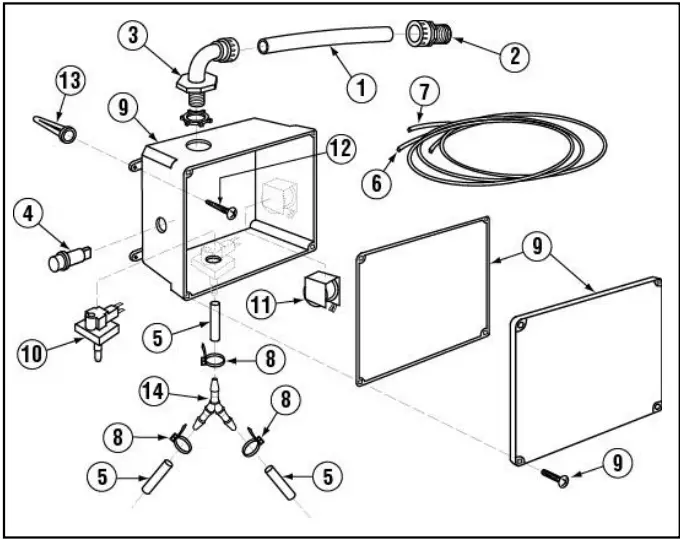

Chemical Pumps
| ITEM NO. | NO. REQ’D |
P/N |
DESCRIPTION |
| 1 | 1 | 43078.08 | Label, Rinse Additive |
| 2 | 1 | 43078.05 | Label, Detergent |
| 3 | 2 | 02104.48 | Tube Stiffener, 1/2″ x 11-7/8″ |
| 4 | 1 | 02104.47 | Strainer |
| 5 | A/R | 02106.78 | Hose, 4MM ID x 6MM (1/4″) OD PVC |
| 5a | A/R | 00425.24 | Chemical Tubing, White |
| 6 | A/R | 02104.37 | Hose, 1/4″ID x 3/8″OD PVC |
| 7 | 1 | 02106.79 | Nut |
| 8 | 1 | 02104.39 | Gasket |
| 9 | 1 | 02106.80 | Kit, Detergent Fitting |
| 10 | 1 | 02106.81 | Nut, Compression Rinse |
| 11 | 1 | 02106.82 | Nut, Chemical Tube |
| 12 | 1 | 02107.14 | Bracket, Chemical Pump |
| 13 | 1 | 00415.00 | Rinse Chemical Pump Assembly |
| 14 | 1 | 00415.00 | Detergent Chemical Pump Assembly |
| 15 | 1 | 00931.00 | Nylon Zip Tie, 4″ |
Detergent Pump
| NO. | REQ’D | P/N | DESCRIPTION |
| 1 | 2 | 02104.47 | Strainer |
| 2 | 2 | 02104.48 | Tube Stiffener, 1/2″ID x 11-7/8″ |
| 3 | 1 | 43078.05 | Label, Detergent |
| 4 | A/R | 02104.37 | Hose, 1/4″ID x 3/8″OD |
| 5 | 4 | 00931.00 | 4.5″ Nylon Cable Tie |
| 6 | 1 | 02257.00 | Squeeze Tube, Norprene 8″ |
| 7 | 1 | 00911.00 | Screw, 8-32×1/2″ Panhead |
| 8 | 1 | 00418.00 | Peristaltic Pump Cover |
| 9 | 1 | 00419.00 | Peristaltic Pump Rotor |
| 10 | 1 | 00919.00 | Screw, 10-32 x 1-1/2″ Panhead |
| 10a | 2 | 00918.10 | Screw, 10-32 x 1-1/2″ Flathead |
| 11 | 1 | 00417.10 | Peristaltic Pump Block (Black) |
| 12 | 1 | 00416.00 | Peristaltic Pump Motor 110V/60Hz |
| 13 | 1 | 00448.00 | Barrel Connector, Male |
| 14 | 2 | 02104.52 | 1/4″ Hose Barb |
| 15 | 1 | 00415.20 | Peri Pump Assm (Incl items 6-13) |
Rinse Pump
| NO. | REQ’D | P/N | DESCRIPTION |
| 1 | 2 | 02104.47 | Strainer |
| 2 | 2 | 02104.48 | Tube Stiffener, 1/2″ID x 11-7/8″ |
| 3 | 1 | 43078.05 | Label, Rinse Additive |
| 4 | A/R | 02104.37 | Hose, 1/4″ID x 3/8″OD |
| 5 | 4 | 00931.00 | 4.5″ Nylon Cable Tie |
| 6 | 1 | 02104.58 | Squeeze Tube, Norprene 1/8″ |
| 7 | 1 | 00911.00 | Screw, 8-32×1/2″ Panhead |
| 8 | 1 | 00418.00 | Peristaltic Pump Cover |
| 9 | 1 | 00419.00 | Peristaltic Pump Rotor |
| 10 | 1 | 00919.00 | Screw, 10-32 x 1-1/2″ Panhead |
| 10a | 2 | 00918.10 | Screw, 10-32 x 1-1/2″ Flathead |
| 11 | 1 | 00417.10 | Peristaltic Pump Block (Black) |
| 12 | 1 | 00416.00 | Peristaltic Pump Motor 110V/60Hz |
| 13 | 1 | 00448.00 | Barrel Connector, Male |
| 14 | 2 | 02106.12 | 1/8″ Hose Barb |
| 15 | 1 | 00415.20 | Peri Pump Assm (Incl items 6-13) |

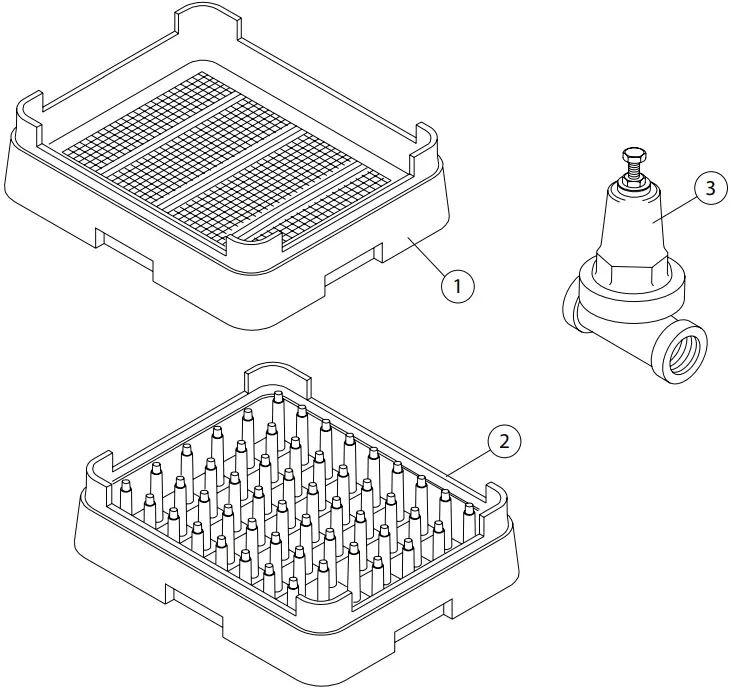

Dish Racks, PRV
| ITEM NO. | NO. REQ’D |
P/N |
DESCRIPTION |
| 1 | 1 | 12960.01 | Dish Rack, Flat |
| 2 | 1 | 12960.03 | Dish Rack, Peg |
| 3 | 1 | 13602.20 | 1/2″ Pressure Regulator, OPTIONAL |
Optional Chemical Alarm
| ITEM NO. | NO. REQ’D |
P/N |
DESCRIPTION |
| 1 | 3 | 00400.00 | Conduit, 3/8” Sealtite |
| 2 | 1 | 00401.00 | S.T. 3/8” Straight Connector |
| 3 | 1 | 00402.00 | S.T. 90 Degree 3/8” Connector |
| 4 | 1 | 00406.00 | Control Box Light, .5” Diameter, Red |
| 5 | 1 | 00435.00 | Squeeze Tube, 8” |
| 6 | 1 | 00521.00 | Wire, 18 Gauge, Orange, 6 ft. |
| 7 | 1 | 00531.00 | Wire, 18 Gauge, White, 6 ft. |
| 8 | 5 | 00931.00 | Wire Tie, Small |
| 9 | 1 | 12510.00 | Sanitizer Alarm Box Assembly |
| 10 | 1 | 12511.00 | Sanitizer Low Level Vacuum Switch |
| 11 | 1 | 12512.00 | Sanitizer Alarm Buzzer, 120 Volts |
| 12 | 4 | 40126.10 | #10 x 3/4″ Sheet metal Screw |
| 13 | 4 | 40127.00 | Wall Anchors |
| 14 | 1 | 00426.00 | Y Hose Connector, 3/16” |
