ChuMaste CM-XWJ01 Tabletop Dishwasher Instruction Manual

Tabletop Dishwasher
Manual Model No.: CM-XWJ01

CM-XWJ01 Tabletop Dishwasher

Please read the manual carefully. It contains important information on how to install, use and maintain the machine. Please retain all documents for subsequent use or for next owner.
How to use

Product Introduction	1
Control Panel	2
Installation	3
Tableware Loading	4
Operation	5
Function	7

Maintain and repair

Maintain & Clean	8
Fault & problem	9
Safety & Warning	13
Specification	14
RoHs Requirement	15

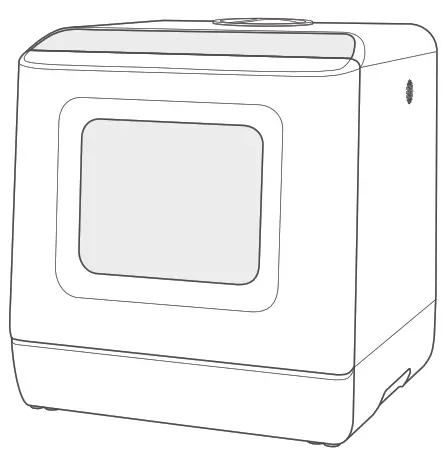

Product Introduction

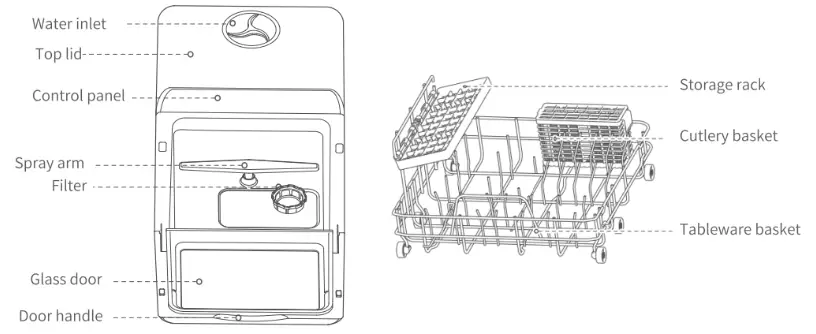

Machine

Parts list

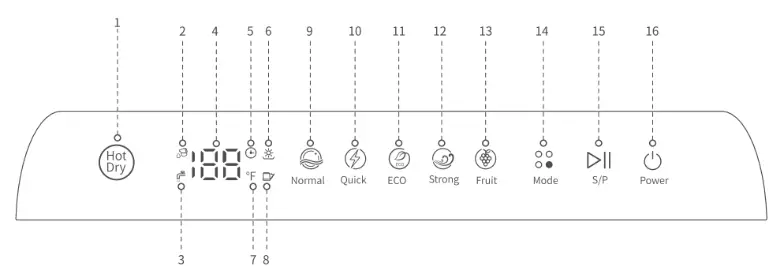

Control Panel

1.Hot Dry	9.Normal
2.Tank model	10.Quick
3.Tap model	11.ECO
4.Display screen’	12.Strong
5.Time display	13.Fruit
6.Dry indicator	14.Program option
7 .Temperature	15.Start/Pause
8.Door open	16.Power on/off

Installation

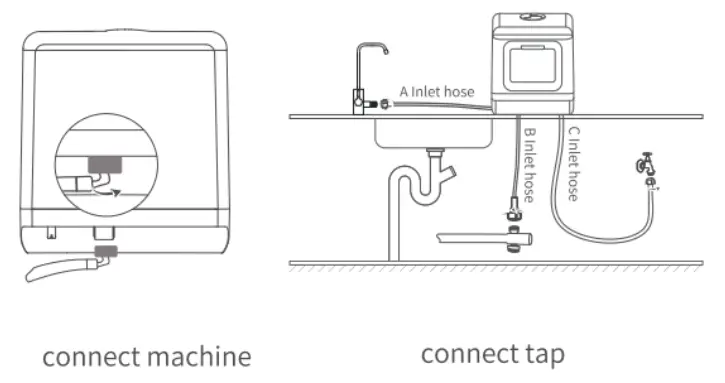

1. Inlet hose installation

   1. connect machine
      Insert inlet hose elbow into the water inlet behind machine and tighten the screw.
   2. connect tap
      A, B. C three options for tap connection, but B and C options need make a hole on or behind cabinet in order the hose can go through cabinet. Note: the size of inlet hose elbow is 1/2’ with mineral thread, the tap size must be 1/2° with outer thread.
2. Drain hose installation

   1. Connect machine
      Insert drain hose elbow to the water outlet behind machine and tighten the collar.
   2. Connect sewer
      A. B. C three options for sewer connection,
      B and C options need make a hole on or under cabinet in order the hose can go through cabinet.

Tableware Loading

1. Please get rid of large food residue on tableware, avoiding to block water hose.
2. Please make reference to right pictures for tableware loading.
   Note:
   In order to fully clean tableware, please tilt tableware internally or put stained face down.

Operation

1. Power on
   Plugin, touch “” , turron the machine. Note:
   During washing program running, touch “ ” for 3 seconds to force the machine to turn off.
2. Add detergent
   Open the door, add moderate detergent powder, or 1pc detergent block into the machine, close the door. Note:
   No detergent when fruit washing; The dosage: 8-10g each washing circle.
3. Program selection Touch “” , each of program indicator will light up one by one mode, select the program you want.
4. Run program
   Touch “” , run selected program, the machine will check water supply automatically.
   Note:

   1. Check tap or tank model automatically after running program, if the indicators “” “2” become red, you need open tap or fill tank with water;
   2. After 5 times checking, there is still no water supply, the machine will enter standby;
   3. Touch “” to force to pause machine to add tableware during washing;
   4. Touch “” for3seconds to quit program, the machine will drain, then turn off;
   5. Touch “” toads 73 hours’ circular wind to keep air fresh inside machine.
5. © Wash
   The machine has two water supply models, tap model and tank model.
   Note:
   1. The indicator “” Ishita, means tank model;
   2. The indicator “” is white, means tap model;
   3. If tanks full, the marching will switch into tank model automatically;
   4. Fill 3 cups of water into tank, Di,Di,Di will be sound if tank s full, the indicator “” will become white;
   5. If tap model, please open water tap.

Function

Program	Program execution	Time	Detergent	Temperature	Drying time	Storage (if selected)
Normal	Hot water washing Cold water rinsing Cold water rinsing Hot water rinsing	69Min	8g	Washing 131°F Rinsing 154°F	60Min	Circulating fresh air for 73 hours
Quick	Hot water washing Cold water rinsing Hot water rinsing	29Min	8g	Washing 122°F Rinsing 144°F	60Min	Circulating fresh air for 73 hours
Strong	Hot water washing Hot water rinsing Cold water rinsing Hot water rinsing	89Min	12g	Washing 131°F Rinsing 131°F Rinssing 167°F	60Min	Circulating fresh  air for 73 hours
ECO	Hot water washing Cold water rinsing Hot water rinsing	59M in	8g	Washing 131°F Rinsing 154°F	60Min	Circulating fresh air for 73 hours
Fruit	Cold water rinsing Cold water rinsing	19Min	/	/	/	/
Hot Dry	/	/	/	/	60Min	Circulating fresh air for 73 hours

The “Normal wash” and “Strong wash” in the water tank mode have one less rinse than the faucet mode, and the total washing time is the same.

Maintain & Clean

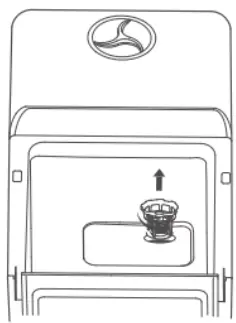

1. Clean Filter
   1. Disassamble.
      Rotate anticlockwise to disassemble the filter set, Which have 3 parts, filter mesh, main filter and fine filter.
   2. Clean
      Use water to flush and brush each part of filter
   3. Assemble
      After cleaning, rotated clockwise to close the filter set.
2. Clean spray arms
   1. Disassemble
      Open the door, take out the basket, then pull out up and down spay arm
   2. Clean
      Use water to flush and brush each spray arm, use tools with sharp point, like needle to clean holes if needed.
   3. Assemble
      After cleaning, please press each arms into positions, make sure the arms can move smoothly.

Fault & problem

1. Fault codes


   Code	Fault	How to deal with
   “E2”	Draining	1.Check drain pipe, be sure the pipe is straight, no bending; 2.Power off, check if anything block filer or drain pipe; 3.Be sure all pipes are not blocked by something.
   “Er”	Overflowing	Tilt the machine to 30-45 degree, let water flow out from base of machine, then restart machine, if still fault, contact our serviceman.
   “E4”	Temperature	Restart machine, if still fault, please contact our serviceman.
   “ES”	Massage
   “E6”	Heating
   “E7”	Pressure

2. Problem(1)


   Problem	Reason	How to deal with
   Tableware is not clean	Incorrect tableware loading	be sure enough gap between tableware.
   	spray arm trapped	Be sure nothing trap the spray arm.
   	Blocked spray arm	Clean spray arm.
   	Blocked filter	Clean filter set.
   	Incorrect filter installation	Correctly assemble filter set.
   	Incorrect program selection	Select appropriate washing program.
   	No detergent	Add detergent (block/powder/liquid).
   Don’ t start the machine	Water shortage	Add water till the indicator light off.
   	Door do not close fully	Check the door if anything stop closing fully.
   Can not select program	Be washing	Re-select program after stop in-progress program or wait in-progress program finishing .

   2. Problem(2)

   Problem	Reason	How to deal with
   Tableware can not dry	Inappropriate program	Select appropriate program
   	Poor dry effect for plastic tableware	Wipe to dry these plastic tableware by hand
   	Incorrect tableware loading	Correct tableware setting in accordance
   	Drying program no finishing	Wait the dry program finishing
   	Wooden tableware	Wipe to dry these wooden tableware by hand
   Discoloration of plastic tableware	Over high washing temperature	Select program with lower temperature
   Detergent left	Spray arms are trapped	Be sure spray arm move smoothly
   	Detergent with poor quality	Use qualified detergent

   2.Problem(3)

   Problem	Reason	How deal with
   A mount of foam in the machine	Use incorrect detergent	1.Use special detergent for dishwasher; 2.0pen machine, wipe out foam by hand; 3.Fill 2-3L water into machine, select any program, after 1-2 min, the foam will be drained, can repeat the process if needed.
   Abnormal sound in the machine	Spray arm knock tableware	Correctly loading the tableware
   	Tableware move slightly	Fix tableware before washing
   Egg custard left on the tableware	Proteins solidification	wash the tableware with egg custard by hand
   inside left inside of machine	Drying time is not enough	Sleet “Hot Dry” program

Safety and warning

Waling

1. Power socket must be grounded, avoiding to possible electric leakage or shock;
2.  Don’ tshare one 6A/10A socket with other appliance avoiding to fire;
3.  Any of new parts or power cord will be replaced by service man after damages;
4.  Dispose of the machine in an environmentally friendly manner under local regulations;
5.  Do not place the machine under the environment below 0 °F;
6. Please use the salt and detergent which are special for automatically dishwasher;
7. Don’ toes the machine in a platform which is not stable, wet, smooth, inflammable;
8. Don’t place the machine within 150mm far from gas stove or other heating source;
9. Don’t place heavy objects on the opened door avoiding to the machine turn over;
10. Don’ splash water into the machine avoiding to electric shock or fire;
11. Don’ trunk the water left in the machine avoiding to hurts;
12. Don’ tset children operate the machine independently avoiding to any danger.

Precaution

1. Don’ topmen the door when washing avoiding to hot water flying out causing any hurts
2. Don’ touch or block the side air outlet avoiding to burnt hurts;
3. Don’ try to tilt or move the machine when washing avoiding faults;
4. Please be care of the knife or other objects with sharp point when open the door;
5. Please stop washing, turn off, plug out and close tap when any faults;
6. Please check and clean the machine time from time in order to the best performance;
7. Please fix the drain hose avoiding to the stained water outflow;
8. Don’ forcedly pull power cord, drain hose, press cutlery tray avoiding any damage;
9. Don’ toes wet hand to operate the machine avoiding electric shock;
10. Children should be far from chemical material such as salt, detergent avoiding to hurts.

Specification

Machine

Model No.:	CM-XWJ01
Voltage	120V
Hz	60Hz
Power	950w
Inlet pressure	0.03~1Mpa
Water consumption	5L
Place setting	2sets
Net weight	29.751b
Machine size (WxDxH)	16.54X16.54X18.03(in)
Carton size (WxDxH)	18.9X20%20.6(in)
Dry	Hot wind

Electrical Drawing

RoHS Requirement

Hazardous substances content
Components	substances
	Pb	Hg	Cd	Cr6+	PBB	PBDE
Plasticparts	0	0	0	0	0	0
Metal parts	0	0	0	0	0	0
Rubber parts	0	0	0	0	0	0
Screws	0	0	0	0	0	0
Stickers	0	0	0	0	0	0
Heat plate	0	0	0	0	0	0
Wire	0	0	0	0	0	0
Water pumps	0	0	0	0	0	0
PCB, Fan	X	0	0	0	0	0
Water valve	0	0	0	0	0	0
Parts of others	0	0	0	0	0	X
The table is made according to SJ/T11364 standards. 0: indicates the hazardous substance contain is below the limitation of GB/T26572 standards. X: indicates the hazardous substance contain is over the limitation of GB/T26572 standards, but fit for the ROHS order. The information of the table is offered by suppliers, under the present skills, we will keep the lowest level of hazardous substance in all of machine parts. We promise that we will try our best to low the level of hazardous substance in the machine through improving the technologies constantly
