CHERY LIFE B0C26STGPR 10×12 Hardtop Gazebo With Double Roof
Product Specifications:
- Size: 10’x12′
- Type: Hardtop Gazebo with Double Roof
- Materials: Metal frame, Plastic components, Fabric panels
Product Usage Instructions
Assembly:

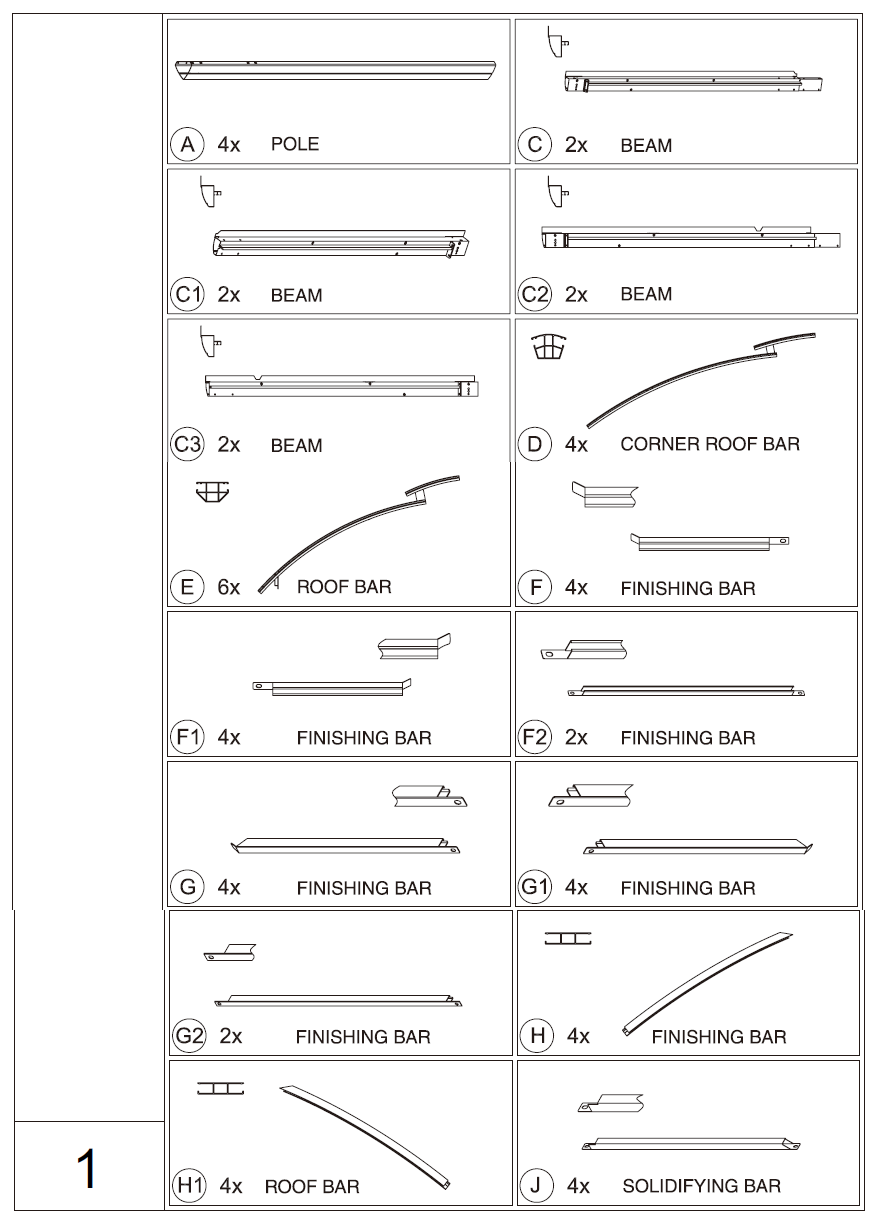

- Begin by identifying all parts and components listed in the manual.
- Follow the step-by-step instructions provided in the manual to assemble the gazebo.
- Ensure all screws and parts are securely fastened during assembly.
Roof Assembly:

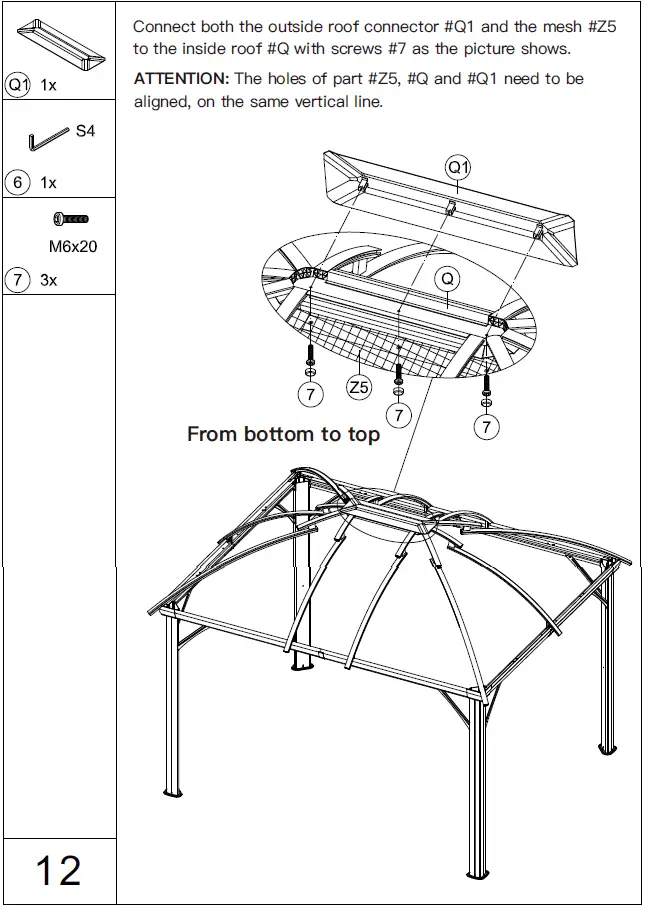

- Connect the outside roof connector #Q1 and mesh #Z5 to the inside roof #Q using screws #7.
- Align the holes of part #Z5, #Q, and #Q1 on the same vertical line.
Wall Installation:
- Hang up Y1 & Y2 to the inside sidewall track, and Y5 & Y6 to the outside sidewall track as shown in the diagram.
- Fix the curtain with poles using Yb as shown in the diagram.
Finishing Touches:

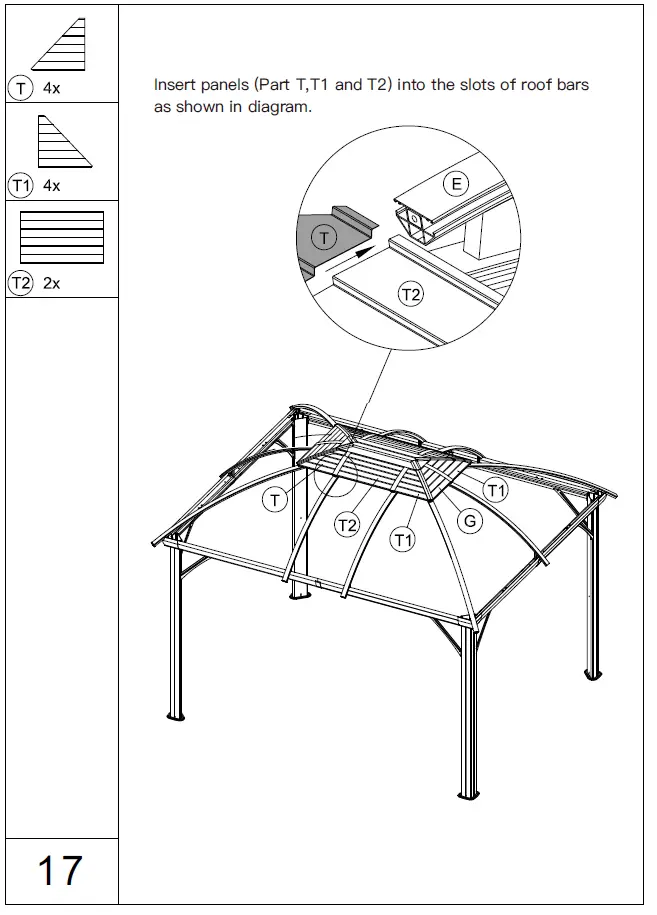

- Insert panels (Part T, T1, and T2) into the slots of roof bars.
- Affix finishing bars (Parts G, G1, and G2) to roof bars (Part E and D) using finishing end (Part R and R2) and screw #1.
FAQ:
- Q: How do I request missing or damaged parts?
A: Contact us via email at [email protected] with your order ID and attach photos of the damaged part for an instant reply. - Q: What is the warranty on the product?
A: We provide a 12-month warranty on our products along with friendly after-sales service. Contact us for any questions or assembly assistance.
Missing part? Damaged? Contact us via email at [email protected]
www.cherylife.com
© Copyright 2022-2024 CheryLife Inc. I All Rights Reserved.
10×12′ ANCHOR BLUEPRINT
Hardware
Assembly Instructions
Thanks for your purchase.
At CheryLife, we believe in our products. That’s why we provide a 12-month warranty and friendly, easy-to-reach after-sales service. So if you have any questions about our product and assembly-, please feel free to contact us. We will be here for you.
Support
After-sales contact email: [email protected]
Business cooperation contact email: [email protected]
Please tell us your order ID when contact.
Attach photos of damaged part for instant reply.
