Chauvet Pro COLORSTRIKEMV2 IP65 Rated Strobe Blinder User Guide

Quick Reference Guide

Model ID: COLORSTRIKEM

Contents

About This Guide

The Color STRIKE M Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

DO NOT open this product. It contains no user-serviceable parts.
DO NOT look at the light source when the product is on.
DO NOT leave any flammable material within 20 cm of this product while operating or connected to power.
DO NOT operate this product if the housing, lenses, or cables appear damaged.
DO NOT connect this product to a dimmer or rheostat.
DO NOT submerge this product. Temporary outdoor operation is fine (IP65).
Not for permanent outdoor installation in locations with extreme environmental conditions. This includes, but is not limited to:
Exposure to a marine/saline environment (within 3 miles of a saltwater body).
Where the normal high or low temperatures of the location exceed the temperature ranges in this manual.
Locations that are prone to flooding or being buried in snow.
Other areas where the product will be subject to extreme radiation or caustic substances.
CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
CAUTION: This product’s housing may be hot when lights are operating.
USE a safety cable when mounting this product overhead.
ONLY connect this product to a grounded and protected circuit.
ONLY use the hanging/mounting bracket to carry this product.
Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
The product is not intended for permanent installation.
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
In the event of a serious operating problem, stop using immediately.
The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 10 ft (3 m) is not expected.
Minimum distance from irradiated object to the final lens of the luminaire: 1.7 ft (.5 m)
If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
The luminaire is intended for professional use only.

FCC Compliance
This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two conditions:

This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

RF Exposure Warning for North America and Australia
Warning! This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Contact
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.
What is Included

Color STRIKE M
Seetronic Powerkon IP65 power cord
Omega bracket
Quick Reference Guide

AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live	Black	Brown	Yellow/Brass
AC Neutral	White	Blue	Silver
AC Ground	Green/Yellow	Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

DMX Linking
The Color STRIKE M will work with a DMX controller using a 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.
DMX Connection
The Color STRIKE M uses a 5-pin DMX data connection for its 6 control personalities: 8CH, 11CH, 13CH, 24CH, 30CH, 74CH, and 97CH. See the User Manual for information about connecting and configuring the product for DMX operation.
Master/Slave Connection
The Color STRIKE M uses the DMX data connection for its master/slave mode. See the User Manual for information about how to connect and configure the product for master/slave operation.
Signal Connection
The Color STRIKE M can link to controller software using an Ethernet connection. If using other Art-Net™- or sACN- compatible products with the Color STRIKE M, each product can be controlled individually on a single network. See the User Manual for information about how to connect and configure the product for these signals.
Art-Net™ Connection
Art-Net™ is an Ethernet protocol that uses TCP/IP, which transfers a large amount of DMX512 data using an Amphenol XLR Net RJ45 connection over a large network. An Art-Net™ protocol document is available from www.chauvetprofessional.com. Chauvet Professional recommends using unicast Art-Net™ for best results.
Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.
sACN Connection
Also known as ANSI E1.31, Streaming-ACN is an Ethernet protocol that uses the layering and formatting of Architecture for Control Networks to transport DMX512 data over IP or any other ACN-compatible network.
RDM (Remote Device Management)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller’s User Manual or with the manufacturer as not all DMX controllers have this capability. The Color STRIKE M supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting
Before mounting this product, read the Safety Notes. Use at least two mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to https://trusst.com/productcategory/truss-clamps/.

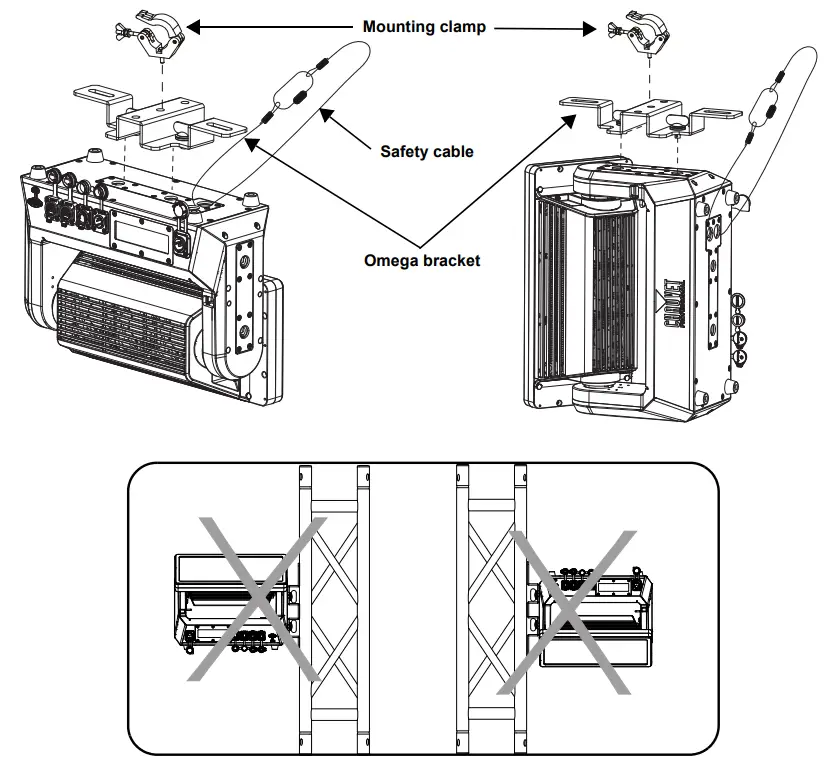

Mounting Diagram

Use only the DOWN orientation when mounting the fixture from the side/arm.

Control Panel Description

Button	Function
<MENU>	Exits from the current menu or function
<ENTER>	Enables the currently displayed menu or sets the currently selected value into the selected function
<UP>	Navigates upwards through the menu list or increases the numeric value when in a function
<DOWN>	Navigates downwards through the menu list or decreases the numeric value when in a function

Menu Map
Refer to the Color STRIKE M product page on www.chauvetprofessional.com for the latest menu map.

Main Level

Programming Levels

Description

Protocol

DMX512

Art-Net sACN

Sets the control protocol

DMX Address

1–512*

Selects DMX address

(*highest channel restricted to personality chosen)

DMX Channel

8CH

11CH

13CH

24CH

30CH

47CH

74CH

97CH

Selects DMX channel

Static

Plate FX

Fixed Color

R G B GB RB RG

RGB

Red Green Blue

Green + blue Red + blue Red + green

Red + green + blue

Manual Color Mixer

Red Green

Blue

0–255

Combines red, green, and blue to make a custom color (0–100%)

Plate FX 1

Plate FX 2

Plate FX 3

Plate FX 4

Plate FX 5

Plate FX 6

Plate FX 7

Plate FX 8

Plate FX 9

Speed

1–100

Adjusts the plate movement speed

Plate Intensity

000–255

Adjusts the plate light intensity

Background Color

R G B GB RB RG

RGB

Selects background color

Off

Turns off background color

Foreground Color

R G B GB RB RG

RGB

Selects foreground color

Off

Turns off foreground color

Beam Intensity	000–255			Adjusts the beam light intensity
Beam Flash Duration	000–255			Adjusts the duration of the beam flash
Beam Flash Rate	000–255			Adjusts the beam flash rate
Tilt	000–255			Adjusts the tilt range from 0° to 180°
Tilt Offset	000–255			Adjusts the tilt offset range
Tilt Invert	No Yes			Inverts the default tilt orientation

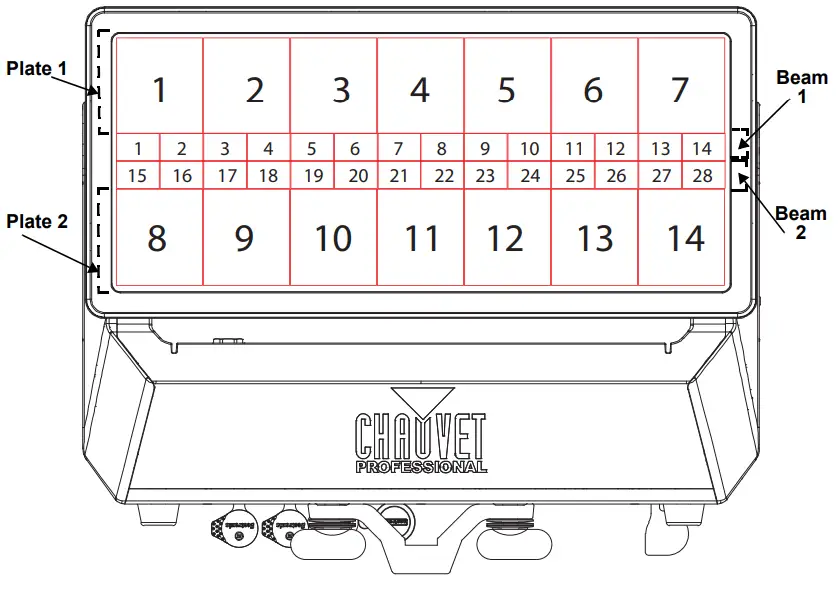

Pixel Invert	Plate1 Invert	No Yes		Inverts the beam and plate pixels individually. Reverts to default setting with a factory reset.
	Plate2 Invert	No Yes
	Tube1 Invert	No Yes
	Tube2 Invert	No Yes
LED Array Swap	Plate Swap	No Yes		Swaps the plate and beam pixel mapping. Keeps the setting even after a factory reset.
	Beam Swap	No Yes
Master/Slave	Master			DMX mode (master)
	Slave			Slave mode
Dimmer Mode	OFF			Linear dimmer
	DIM1–3			Dimming curves: Dimmer 1 (fast) to Dimmer 3 (slow)
White Balance	Off			Turns white balance off
	Manual	Red Green Blue	125–255	Combines red, green, and blue to create custom color
LED Frequency	600Hz 1200Hz 2000Hz 4000Hz 6000Hz 25000Hz			Sets the Pulse Width Modulation (PWM) frequency
Fan Mode	Auto			Sets fan to auto — fan speed adjusts according to product temperature
	On			Turns fan on
Display Invert	No			Inverts the default display mode
	Yes
Backlight	10s			Turns off display backlight after 10 seconds of inactivity
	30s			Turns off display backlight after 30 seconds of inactivity
	2Min			Turns off display backlight after 2 minutes of inactivity
	Always On			Display backlight remains on
Key Lock	On			Locks the control panel
	Off			Keeps the control panel unlocked

Main Level	Programming Levels		Description
Ethernet Setting Information	Universe	0–255 (ArtNet)	Sets the universe
	Universe	1–255 (sACN)	Sets the universe
	IP Address	2.192.0.1	Sets the IP address
	Fixture Hours:	_ _ _Hours	Displays total hours the product has been powered on
	LED Hours:	_ _H	Displays the total LED hours
	Disp Ver:	V_._ _ _ _ _ _	Displays firmware version
	Drv-Y Ver:	V_._	Displays the tilt PCB version
	LED-A Ver:	V_._	Displays the LED A PCB version
	LED-C Ver:	V_._	Displays the LED C PCB version
	Net Ver:	V_ _	Displays the network version
	UID	_ _ _ _ _ _ _ _ _ _ _ _ _ _	Displays product UID
Upgrade Firmware	Only This Fixture	_ _ _ _ _ _.CHL	Selects an update file for this product, or shows “No such file!”
	Only This Fixture	…
	Multiple Fixtures	_ _ _ _ _ _.CHL	Selects an update file for this and connected Color STRIKE M products, or shows “No such file!”
	Multiple Fixtures	…
	Other Fixture Type	_ _ _ _ _ _.CHL	Selects an update file for other connected products, or shows “No such file!”
	Other Fixture Type	…
Factory Reset	No		Resets settings to factory default
Factory Reset	Yes		Resets settings to factory default

USB Software Update
The Color STRIKE M allows for software updates with a USB device using the built-in USB port. To update the software using a USB flash drive, do the following:

Power on the fixture, and plug the flash drive into the USB port.Once the flash drive has been detected, the message “Upgrade Firmware” will be displayed. Press <ENTER>.
• If a different message appears on the display, search for the updated software in the Main Menu (Update Firmware) and select from Only This Unit, Multiple Units, or Other Fixture Type. A list of the software update files will be displayed.
Select the file that needs to be uploaded. The message “Are you sure?” will be displayed. Press <ENTER>.
If the selected file is correct, the upgrade will be completed. Restart the fixture.
• If the selected file is incorrect, the upgrade will fail, and the display will go back to the main interface. Repeat steps 1–3 using the correct file.

The “Other Fixture Type” option can only be selected for connected products compatible with the Upload 03 (the first 2 digits of the item code must be 03).

DMX Values
97CH

Channel	Function	Value	Percent/Setting
1	Tilt	000 255	0–100%
2	Fine tilt	000 255	0–100%
3	Master dimmer	000 255	0–100%
4	Plate dimmer	000 255	0–100%
5	Beam dimmer	000 255	0–100%
6	Plate flash duration	000 009 010 250 251 255	Classic shutter mode: disables duration control Slow to fast 100% On, no flash/strobe
7	Plate flash rate	000 009 010 250 251 255	100% Slow to fast 100%
8	Beam flash duration	000009 010 250 251 255	Classic shutter mode: disables duration control Slow to fast 100% On, no flash/strobe
9	Beam flash rate	000 009 010 250 251 255	100% Slow to fast 100% on
10	Plate pixel 1 red	000 255	0–100%
11	Plate pixel 1 green	000 255	0–100%
12	Plate pixel 1 blue	000 255	0–100%
13	Plate pixel 2 red	000 255	0–100%
14	Plate pixel 2 green	000 255	0–100%
15	Plate pixel 2 blue	000 255	0–100%
16	Plate pixel 3 red	000 255	0–100%
17	Plate pixel 3 green	000 255	0–100%
18	Plate pixel 3 blue	000 255	0–100%
19	Plate pixel 4 red	000 255	0–100%
20	Plate pixel 4 green	000 255	0–100%
21	Plate pixel 4 blue	000 255	0–100%
22	Plate pixel 5 red	000 ó 255	0–100%
23	Plate pixel 5 green	000 255	0–100%
24	Plate pixel 5 blue	000 255	0–100%
25	Plate pixel 6 red	000 255	0–100%
26	Plate pixel 6 green	000 255	0–100%
27	Plate pixel 6 blue	000 255	0–100%
28	Plate pixel 7 red	000 255	0–100%
29	Plate pixel 7 green	000 255	0–100%
30	Plate pixel 7 blue	000 255	0–100%
31	Plate pixel 8 red	000 255	0–100%
32	Plate pixel 8 green	000 255	0–100%
33	Plate pixel 8 blue	000 255	0–100%
34	Plate pixel 9 red	000 255	0–100%
35	Plate pixel 9 green	000 255	0–100%
36	Plate pixel 9 blue	000 255	0–100%
37	Plate pixel 10 red	000 255	0–100%
38	Plate pixel 10 green	000 255	0–100%
39	Plate pixel 10 blue	000 255	0–100%
40	Plate pixel 11 red	000 255	0–100%
41	Plate pixel 11 green	000 255	0–100%
42	Plate pixel 11 blue	000 255	0–100%
43	Plate pixel 12 red	000 255	0–100%
44	Plate pixel 12 green	000 255	0–100%
45 46	Plate pixel 12 blue	000 255	0–100%
45 46	Plate pixel 13 red	000 255	0–100%
47	Plate pixel 13 green	000 255	0–100%
48	Plate pixel 13 blue	000255	0–100%
49	Plate pixel 14 red	000 255	0–100%
50	Plate pixel 14 green	000 255	0–100%

Channel	Function	Value	Percent/Setting
51	Plate pixel 14 blue	000 255	0–100%
52	Beam pixel 1	000 255	0–100%
53	Beam pixel 2	000 255	0–100%
54	Beam pixel 3	000 255	0–100%
55	Beam pixel 4	000 255	0–100%
56	Beam pixel 5	000 255	0–100%
57	Beam pixel 6	000 255	0–100%
58	Beam pixel 7	000 255	0–100%
59	Beam pixel 8	000 255	0–100%
60	Beam pixel 9	000 255	0–100%
61	Beam pixel 10	000 255	0–100%
62	Beam pixel 11	000 255	0–100%
63	Beam pixel 12	000 255	0–100%
64	Beam pixel 13	000 255	0–100%
65	Beam pixel 14	000 255	0–100%
66	Beam pixel 15	000 255	0–100%
67	Beam pixel 16	000 255	0–100%
68	Beam pixel 17	000 255	0–100%
69	Beam pixel 18	000 255	0–100%
70	Beam pixel 19	000 255	0–100%
71	Beam pixel 20	000 255	0–100%
72	Beam pixel 21	000 255	0–100%
73	Beam pixel 22	000 255	0–100%
74	Beam pixel 23	000 255	0–100%
75	Beam pixel 24	000 255	0–100%
76	Beam pixel 25	000 255	0–100%
77	Beam pixel 26	000 255	0–100%
78	Beam pixel 27	000 255	0–100%
79	Beam pixel 28	000 255	0–100%
80	Beam FX	000 005 006 042 043 085 086 128 129 171 172 214 215 255	No function Ramp up Ramp down Ramp up-down Random Lightning Spikes
81	Plates foreground	000 000 001 002 003 004 005 006 007 008 009 010 011 012 048 049 050 086 087 088 124 125 126 162 163 164 200 201 202238 239 240 247 248 255	No function White (2700K) White (3200K) White (4200K) White (5600K) White (8000K) Blue R: 0 G: 0 B: 255 W: 0 Green+ / Blue R: 0 G: + B: 255 W: 0 Cyan R: 0 G: 255 B: 255 W: 0 Green / Blue- R: 0 G: 255 B: – W: 0 Green R: 0 G: 255 B: 0 W: 0 Red+ / Green R: + G: 255 B: 0 W: 0 Yellow R: 255 G: 255 B: 0 W: 0 Red / Green- R: 255 G: – B: 0 W: 0 Red R: 255 G: 0 B: 0 W: 0 Red / Blue+ R: 255 G: 0 B: + W: 0 Magenta R: 255 G: 0 B: 255 W: 0 Red- / Blue R: – G: 0 B: 255 W: 0 Blue R: 0 G: 0 B: 255 W: 0 Color index, fast to slow Color snap, fast to slow
82	Plate foreground dimmer	000 255	0–100%

Channel

Function

Value

Percent/Setting

Plates background

000 000

001 002

003 004

005 006

007 008

009 010

011

012 048

049

050 086

087

088 124

125

126 162

163

164 200

201

202 238

239

240247

248 255

No function White (2700K) White (3200K) White (4200K) White (5600K) White (8000K)

Blue R: 0 G: 0 B: 255 W: 0

Green+ / Blue R: 0 G: + B: 255 W: 0 Cyan R: 0 G: 255 B: 255 W: 0

Green / Blue- R: 0 G: 255 B: – W: 0 Green R: 0 G: 255 B: 0 W: 0 Red+ / Green R: + G: 255 B: 0 W: 0 Yellow R: 255 G: 255 B: 0 W: 0 Red / Green- R: 255 G: – B: 0 W: 0 Red R: 255 G: 0 B: 0 W: 0 Red / Blue+ R: 255 G: 0 B: + W: 0 Magenta R: 255 G: 0 B: 255 W: 0 Red- / Blue R: – G: 0 B: 255 W: 0 Blue R: 0 G: 0 B: 255 W: 0

Color index, fast to slow

Color snap, fast to slow

Plates background dimmer

000 255

0–100%

Plate 1 (pixels 1–7) FX select

(see Pixel Mapping)

000 002

003 255

Plate FX All select (all on)

Plate FX pattern select

Plate 1 (pixels 1–7) FX movement speed & direction (see Pixel Mapping)

000 005

006 124

125130

131249

250 255

No function

Left to right, fast to slow No function

Right to left, slow to fast No function

Plate 1 (pixels 1–7) FX crossfade (see Pixel Mapping)

000 002

003 255

Snap from pixel to pixel

Fade duration: short to long

Plate 2 (pixels 8–14)

FX select (see Pixel Mapping)

000 002

003 255

Plate FX All select (all on)

Plate FX pattern select

Plate 2 (pixels 8–14) FX movement speed & direction (see Pixel Mapping)

000 005

006 124

125 130

131249

250 255

No function

Left to right, fast to slow No function

Right to left, slow to fast No function

Plate 2 (pixels 8–14) FX crossfade (see Pixel Mapping)

000 002

003 255

Snap from pixel to pixel

Fade duration: short to long

Beam 1 (pixels 1–14)

FX select (see Pixel Mapping)

000 002

003 255

Beam FX All select (all on)

Beam FX pattern select

Beam 1 (pixels 1–14) FX movement speed & direction (see Pixel Mapping)

000005

006 124

125 130

131 249

250 255

No function

Left to right, fast to slow No function

Right to left, slow to fast No function

Beam 1 (pixels 1–14)

FX crossfade

(see Pixel Mapping)

000 002

003 255

Snap from pixel to pixel

Fade duration: short to long

Beam 2 (pixels 15–28)

FX select (see Pixel Mapping)

000 002

003 255

Beam FX All select (all on)

Beam FX pattern select

Beam 2 (pixels 15–28) FX movement speed & direction (see Pixel Mapping)

000 005

006124

125 130

131 249

250 255

No function

Left to right, fast to slow No function

Right to left, slow to fast No function

Beam 2 (pixels 15–28)

FX crossfade

(see Pixel Mapping)

000 002

003 255

Snap from pixel to pixel

Fade duration: short to long

Channel	Function	Value	Percent/Setting
		000005	No Wootton
		006 010	Off (dimmer mode)
		011 015	Dimmer 1 (dimmer mode)
		016 020	Dimmer 2 (dimmer mode)
		021 025	Dimmer 3 (dimmer mode)
		026 030	600 Hz
		031 035	1200 Hz
		036 040	2000 Hz
		041 045	4000 Hz
		046 050	6000 Hz
		051 055	25 KHz
		056 060	Auto (Fan mode)
		061 065	On (Fan mode)
		066 070	Tilt reset
		071 075	Plate 1 invert off
	Control	076 080	Plate 1 invert on
97	(hold for 3 seconds)	081 085	Plate 2 invert off
		086 090	Plate 2 invert on
		091 095	Beam 1 invert off
		096 100	Beam 1 invert on
		101 105	Beam 2 invert off
		106 110	Beam 2 invert on
		111 115	Plate swap on
		116 120	Plate swap off
		121 125	Beam swap on
		126 130	Beam swap off
		131 140	No function
		141 150	FX pattern priority
		151 155	Color mix HTP on
		156 160	Color mix HTP off
		161 170	Color priority
		171 255	No function

74CH

Channel	Function	Value	Percent/Setting
1	Tilt	000 255	0–100%
2	Fine tilt	000 255	0–100%
3	Dimmer	000 255	0–100%
		000 009	Open
		010 079	Strobe, slow to fast
4	Strobe	080 149	Pulse, slow to fast
		150 219	Random strobe, slow to fast
		220 255	Open
5	Plate pixel 1 red	000 255	0–100%
6	Plate pixel 1 green	000 255	0–100%
7	Plate pixel 1 blue	000 255	0–100%
8	Plate pixel 2 red	000 255	0–100%
9	Plate pixel 2 green	000 255	0–100%
10	Plate pixel 2 blue	000 255	0–100%
11	Plate pixel 3 red	000 255	0–100%
12	Plate pixel 3 green	000255	0–100%
13	Plate pixel 3 blue	000 255	0–100%
14	Plate pixel 4 red	000 255	0–100%
15	Plate pixel 4 green	000 255	0–100%
16	Plate pixel 4 blue	000 255	0–100%
17	Plate pixel 5 red	000 255	0–100%
18	Plate pixel 5 green	000 255	0–100%
19	Plate pixel 5 blue	000 255	0–100%
20	Plate pixel 6 red	000 255	0–100%
21	Plate pixel 6 green	000 255	0–100%
22	Plate pixel 6 blue	000255	0–100%
23	Plate pixel 7 red	000 255	0–100%
24	Plate pixel 7 green	000 255	0–100%
25	Plate pixel 7 blue	000 255	0–100%
26	Plate pixel 8 red	000 255	0–100%
27	Plate pixel 8 green	000 255	0–100%
28	Plate pixel 8 blue	000 255	0–100%
29	Plate pixel 9 red	000 255	0–100%
30	Plate pixel 9 green	000 255	0–100%
31	Plate pixel 9 blue	000 255	0–100%
32	Plate pixel 10 red	000 255	0–100%
33	Plate pixel 10 green	000 255	0–100%
34	Plate pixel 10 blue	000 ó 255	0–100%
35	Plate pixel 11 red	000 255	0–100%
36	Plate pixel 11 green	000 255	0–100%
37	Plate pixel 11 blue	000 255	0–100%
38	Plate pixel 12 red	000 255	0–100%
39	Plate pixel 12 green	000 255	0–100%
40	Plate pixel 12 blue	000 255	0–100%
41	Plate pixel 13 red	000 255	0–100%
42	Plate pixel 13 green	000 255	0–100%
43	Plate pixel 13 blue	000255	0–100%
44	Plate pixel 14 red	000 255	0–100%
45	Plate pixel 14 green	000 255	0–100%
46	Plate pixel 14 blue	000 255	0–100%
47	Beam pixel 1	000 255	0–100%
48	Beam pixel 2	000 255	0–100%
49	Beam pixel 3	000 255	0–100%
50	Beam pixel 4	000 255	0–100%
51	Beam pixel 5	000 255	0–100%
52	Beam pixel 6	000 255	0–100%
53	Beam pixel 7	000 255	0–100%
54	Beam pixel 8	000 255	0–100%
55	Beam pixel 9	000 255	0–100%

Channel	Function	Value	Percent/Setting
56	Beam pixel 10	000 255	0–100%
57	Beam pixel 11	000 255	0–100%
58	Beam pixel 12	000 255	0–100%
59	Beam pixel 13	000 255	0–100%
60	Beam pixel 14	000 255	0–100%
61	Beam pixel 15	000 255	0–100%
62	Beam pixel 16	000 255	0–100%
63	Beam pixel 17	000 255	0–100%
64	Beam pixel 18	000 255	0–100%
65	Beam pixel 19	000 255	0–100%
66	Beam pixel 20	000 255	0–100%
67	Beam pixel 21	000 255	0–100%
68	Beam pixel 22	000 255	0–100%
69	Beam pixel 23	000 255	0–100%
70	Beam pixel 24	000 255	0–100%
71	Beam pixel 25	000 255	0–100%
72	Beam pixel 26	000 255	0–100%
73	Beam pixel 27	000 255	0–100%
74	Beam pixel 28	000 255	0–100%

47 CH

Channel	Function	Value	Percent/Setting
1	Tilt	000 255	0–100%
2	Fine tilt	000 255	0–100%
3	Master dimmer	000 255	0–100%
4	Plate dimmer	000 255	0–100%
5	Beam dimmer	000 255	0–100%
		000 009	Classic shutter mode: disables duration control
6	Plate flash duration	010 250	Slow to fast
		251 255	100% On, no flash/strobe
		000 009	100% On, no flash/strobe
7	Plate flash rate	010 250	Slow to fast
		251 255	100% On, no flash/strobe
		000 009	Classic shutter mode: disables duration control
8	Beam flash duration	010 250	Slow to fast
		251 255	100% On, no flash/strobe
		000 009	100% On, no flash/strobe
9	Beam flash rate	010 250	Slow to fast
		251255	100% On, no flash/strobe
		000 005	Normal alignment
		006 124	Invert Plate 1 and Plate 2
10	Plate Invert	125 130	Invert Plate 1, Plate 2 normal
		131 249	Invert Plate 2, Plate 1 normal
		250 255	No function
		000 005	Normal alignment
		006 124	Invert Beam 1 and Beam 2
11	Beam Invert	125 130	Invert Beam 1, Beam 2 normal
		131 249	Invert Beam 2, Beam 1 normal
		250 255	No function
12	Plate Pixel 1 + 8 Red	000 255	0–100%
13	Plate Pixel 1 + 8 Green	000 255	0–100%
14	Plate Pixel 1 + 8 Blue	000 255	0–100%
15	Plate Pixel 2 + 9 Red	000 255	0–100%
16	Plate Pixel 2 + 9 Green	000 255	0–100%

Channel	Function	Value	Percent/Setting
17	Plate Pixel 2 + 9 Blue	000 255	0–100%
18	Plate Pixel 3 + 10 Red	000 255	0–100%
19	Plate Pixel 3 + 10 Green	000 255	0–100%
20	Plate Pixel 3 + 10 Blue	000 255	0–100%
21	Plate Pixel 4 + 11 Red	000 255	0–100%
22	Plate Pixel 4 + 11 Green	000 255	0–100%
23	Plate Pixel 4 + 11 Blue	000 255	0–100%
24	Plate Pixel 5 + 12 Red	000 255	0–100%
25	Plate Pixel 5 + 12 Green	000 255	0–100%
26	Plate Pixel 5 + 12 Blue	000 255	0–100%
27	Plate Pixel 6 + 13 Red	000 255	0–100%
28	Plate Pixel 6 + 13 Green	000 255	0–100%
29	Plate Pixel 6 + 13 Blue	000 255	0–100%
30	Plate Pixel 7 + 14 Red	000 255	0–100%
31	Plate Pixel 7 + 14 Green	000 255	0–100%
32	Plate Pixel 7 + 14 Blue	000 255	0–100%
33	Beam Pixel 1 + 15	000 255	0–100%
34	Beam Pixel 2 + 16	000 255	0–100%
35	Beam Pixel 3 + 17	000 255	0–100%
36	Beam Pixel 4 + 18	000 255	0–100%
37	Beam Pixel 5 + 19	000 255	0–100%
38	Beam Pixel 6 + 20	000 255	0–100%
39	Beam Pixel 7 + 21	000 255	0–100%
40	Beam Pixel 8 + 22	000 255	0–100%
41	Beam Pixel 9 + 23	000 255	0–100%
42	Beam Pixel 10 + 24	000 255	0–100%
43	Beam Pixel 11 + 25	000 255	0–100%
44	Beam Pixel 12 + 26	000 255	0–100%
45	Beam Pixel 13 + 27	000 255	0–100%
46	Beam Pixel 14 + 28	000 255	0–100%

Channel	Function	Value	Percent/Setting
		000 005	No function
		006 010	Off (dimmer mode)
		011 015	Dimmer 1 (dimmer mode)
		016 020	Dimmer 2 (dimmer mode)
		021 025	Dimmer 3 (dimmer mode)
		026 030	600 Hz
		031 035	1200 Hz
		036 040	2000 Hz
		041 045	4000 Hz
		046 050	6000 Hz
		051 055	25KHz
		056 060	Auto (fan mode)
		061 065	On (fan mode)
		066 070	Tilt reset
		071 075	Plate 1 – invert off
47	Control*	076 080 081 085	Plate 1– invert on Plate 2 – invert off
		086 090	Plate 2 – invert on
		091 095	Beam 1 – invert off
		096 100	Beam 1 – invert on
		101 105	Beam 2 – invert off
		106 110	Beam 2 – invert on
		111 115	Plate swap on
		116 120	Plate swap off
		121 125	Beam swap on
		126 130	Beam swap off
		131 140	No function
		141 150	No function
		151 155	No function
		156 160	No function
		161 170	No function
		171 255	No function

*Hold desired dimmer speed value for 3 seconds, then release. This changes the dimmer speed setting in the menu.

30CH

Channel	Function	Value		Percent/Setting
1	Tilt	000	255	0–100%
2	Fine tilt	000	255	0–100%
3	Master dimmer	000	255	0–100%
4	Plate dimmer	000	255	0–100%
5	Beam dimmer	000	255	0–100%
		000	009	Classic shutter mode: disables duration control
6	Plate flash duration	010	250	Slow to fast
		251	255	100% On, no flash/strobe
		000	009	100%
7	Plate flash rate	010	250	Slow to fast
		251	255	100%
		000	009	Classic shutter mode: disables duration control
8	Beam flash duration	010	250	Slow to fast
		251	255	100% On, no flash/strobe
		000	009	100%
9	Beam flash rate	010	250	Slow to fast
		251	255	100% on
10	Plates red	000	255	0–100%
11	Plates green	000	255	0–100%
12	Plates blue	000	255	0–100%
		000	005	No function
		006	042	Ramp up
		043	085	Ramp down
13	Beam FX	086	128	Ramp up-down
		129	171	Random
		172	214	Lightning
		215	255	Spikes
		000 000		No function
		001 002		White (2700K)
		003 004		White (3200K)
		005 006		White (4200K)
		007 008		White (5600K)
		009 010		White (8000K)
		011		Blue R: 0	G: 0	B: 255	W: 0
		012 048		Green+ / Blue R: 0	G: +	B: 255	W: 0
		049		Cyan R: 0	G: 255	B: 255	W: 0
		050 086		Green / Blue- R: 0	G: 255	B: –	W: 0
14	Plates foreground	087		Green R: 0	G: 255	B: 0	W: 0
		088 124		Red+ / Green R: +	G: 255	B: 0	W: 0
		125		Yellow R: 255	G: 255	B: 0	W: 0
		126 ó 162		Red / Green- R: 255	G: –	B: 0	W: 0
		163		Red R: 255	G: 0	B: 0	W: 0
		164 200		Red / Blue+ R: 255	G: 0	B: +	W: 0
		201		Magenta R: 255	G: 0	B: 255	W: 0
		202 238		Red- / Blue R: –	G: 0	B: 255	W: 0
		239		Blue R: 0	G: 0	B: 255	W: 0
		240 247		Color index, fast to slow
		248 255		Color snap, fast to slow
15	Plates foreground dimmer	000	255	0–100%

Channel	Function	Value		Percent/Setting
		000 000		No function
		001 002		White (2700K)
		003 004		White (3200K)
		005 006		White (4200K)
		007 008		White (5600K)
		009 010		White (8000K)
		011		Blue R: 0	G: 0	B: 255	W: 0
		012 048		Green+ / Blue R: 0	G: +	B: 255	W: 0
		049		Cyan R: 0	G: 255	B: 255	W: 0
		050 086		Green / Blue- R: 0	G: 255	B: –	W: 0
16	Plates background	087		Green R: 0	G: 255	B: 0	W: 0
		088 124		Red+ / Green R: +	G: 255	B: 0	W: 0
		125		Yellow R: 255	G: 255	B: 0	W: 0
		126 162		Red / Green- R: 255	G: –	B: 0	W: 0
		163		Red R: 255	G: 0	B: 0	W: 0
		164 200		Red / Blue+ R: 255	G: 0	B: +	W: 0
		201		Magenta R: 255	G: 0	B: 255	W: 0
		202 238		Red- / Blue R: –	G: 0	B: 255	W: 0
		239		Blue R: 0	G: 0	B: 255	W: 0
		240 247		Color index, fast to slow
		248 255		Color snap, fast to slow
17	Plates background dimmer	000	255	0–100%
18	Plate 1 (pixels 1–7)	000	002	Plate FX All select (all on)
18	FX select	003	255	see Plate Patterns
		000	005	No function
	Plate 1 (pixels 1–7) FX	006	124	Left to right, fast to slow
19	movement speed & direction	125 131	130 249	No function Right to left, slow to fast
		250	255	No function
20	Plate 1 (pixels 1–7)	000	002	Snap from cell to cell
20	FX crossfade	003	255	Fade duration: short to long
21	Plate 2 (pixels 8–14) FX	000	002	Plate FX All select (all on)
21	select	003	255	see Plate Patterns
		000	005	No function
22	Plate 2 (pixels 8–14) FX movement speed & direction	006 125 131	124 130 249	Left to right, fast to slow No function Right to left, slow to fast
		250	255	No function
23	Plate 2 (pixels 8–14) FX	000	002	Snap from cell to cell
23	crossfade	003	255	Fade duration: short to long
24	Beam 1 (pixels 1–14)	000	002	Beam FX All select (all on)
24	FX select	003	255	see Beam Patterns
		000	005	No function
	Beam 1 (pixels 1–14) FX	006	124	Left to right, fast to slow
25	movement speed & direction	125 131	130 249	No function Right to left, slow to fast
		250	255	No function
26	Beam 1 (pixels 1–14)	000	002	Snap from cell to cell
26	FX crossfade	003	255	Fade duration: short to long
27	Beam 2 (pixels 15–28) FX	000	002	Beam FX All select (all on)
27	select	003	255	see Beam Patterns

Channel	Function	Value	Percent/Setting
		000 005	No function
	Beam 2 (pixels 15–28) FX	006 124	Left to right, fast to slow
28	movement speed & direction	125 130 131 249	No function Right to left, slow to fast
		250 255	No function
29	Beam 2 (pixels15–28) FX	000 002	Snap from cell to cell
29	crossfade	003 255	Fade duration: short to long
		000 005	No function
		006 010	Off (dimmer mode)
		011 015	Dimmer 1
		016 020	Dimmer 2
		021 025	Dimmer 3
		026 030	600 Hz
		031 035	1200 Hz
		036 040	2000 Hz
		041 045	4000 Hz
		046050	6000 Hz
		051 055	25 KHz
		056 060	Fan mode auto
		061 065	Fan mode on
		066 070	Tilt reset
		071 075	Plate1 invert off
30	Control*	076 080 081 085	Plate1 invert on Plate2 invert off
		086 090	Plate2 invert on
		091 095	Beam1 invert off
		096100	Beam1 invert on
		101 105	Beam2 invert off
		106 110	Beam2 invert on
		111 115	Plate swap on
		116 120	Plate swap off
		121 125	Beam swap on
		126 130	Beam swap off
		131 140	No function
		141 150	No function
		151 155	No function
		156 160	No function
		161 170	No function
		171 255	No function

24CH

Channel	Function	Value		Percent/Setting
1	Tilt	000	255	0–100%
2	Fine tilt	000	255	0–100%
3	Master dimmer	000	255	0–100%
4	Plate dimmer	000	255	0–100%
5	Beam dimmer	000	255	0–100%
		000	009	Classic shutter mode: disables duration control
6	Plate flash duration	010	250	Slow to fast
		251	255	100% On, no flash/strobe
		000	009	100%
7	Plate flash rate	010	250	Slow to fast
		251	255	100%
		000	009	Classic shutter mode: disables duration control
8	Beam flash duration	010	250	Slow to fast
		251	255	100% On, no flash/strobe
		000	009	100%
9	Beam flash rate	010	250	Slow to fast
		251	255	100% on
10	Plates red	000	255	0–100%
11	Plates green	000	255	0–100%
12	Plates blue	000	255	0–100%
		000	005	No function
		006	042	Ramp up
		043	085	Ramp down
13	Beam FX	086	128	Ramp up-down
		129	171	Random
		172	214	Lightning
		215	255	Spikes
		000 000		No function
		001 002		White (2700K)
		003 004		White (3200K)
		005 006		White (4200K)
		007 008		White (5600K)
		009 010		White (8000K)
		011		Blue R: 0	G: 0	B: 255	W: 0
		012 048		Green+ / Blue R: 0	G: +	B: 255	W: 0
		049		Cyan R: 0	G: 255	B: 255	W: 0
		050 086		Green / Blue- R: 0	G: 255	B: –	W: 0
14	Plates foreground	087		Green R: 0	G: 255	B: 0	W: 0
		088 124		Red+ / Green R: +	G: 255	B: 0	W: 0
		125		Yellow R: 255	G: 255	B: 0	W: 0
		126 162		Red / Green- R: 255	G: –	B: 0	W: 0
		163		Red R: 255	G: 0	B: 0	W: 0
		164 200		Red / Blue+ R: 255	G: 0	B: +	W: 0
		201		Magenta R: 255	G: 0	B: 255	W: 0
		202 238		Red- / Blue R: –	G: 0	B: 255	W: 0
		239		Blue R: 0	G: 0	B: 255	W: 0
		240247		Color index, fast to slow
		248255		Color snap, fast to slow
15	Plates foreground dimmer	000	255	0–100%

Channel	Function	Value		Percent/Setting
		000 000		No function
		001 002		White (2700K)
		003 004		White (3200K)
		005 006		White (4200K)
		007 008		White (5600K)
		009 010		White (8000K)
		011		Blue R: 0	G: 0	B: 255	W: 0
		012 048		Green+ / Blue R: 0	G: +	B: 255	W: 0
		049		Cyan R: 0	G: 255	B: 255	W: 0
		050 086		Green / Blue- R: 0	G: 255	B: –	W: 0
16	Plates background	087		Green R: 0	G: 255	B: 0	W: 0
		088 124		Red+ / Green R: +	G: 255	B: 0	W: 0
		125		Yellow R: 255	G: 255	B: 0	W: 0
		126 162		Red / Green- R: 255	G: –	B: 0	W: 0
		163		Red R: 255	G: 0	B: 0	W: 0
		164 200		Red / Blue+ R: 255	G: 0	B: +	W: 0
		201		Magenta R: 255	G: 0	B: 255	W: 0
		202 238		Red- / Blue R: –	G: 0	B: 255	W: 0
		239		Blue R: 0	G: 0	B: 255	W: 0
		240 247		Color index, fast to slow
		248 255		Color snap, fast to slow
17	Plates background dimmer	000	255	0–100%
18	Plates 1 & 2 FX select	000 003	002 255	Plate FX All select (all on) see Plate Patterns
		000	005	No function
	Plates 1 & 2 FX movement	006	124	Left to right, fast to slow
19	speed & direction	125	130	No function
		131	249	Right to left, slow to fast
		250	255	No function
20	Plates 1 & 2 FX crossfade	000 003	002 255	Snap from cell to cell Fade duration: short to long
21	Beams 1 & 2 FX select	000 003	002 255	Beam FX All select (all on) see Beam Patterns
		000	005	No function
22	Beams 1 & 2 FX movement speed & direction	006 125 131	124 130 249	Left to right, fast to slow No function Right to left, slow to fast
		250	255	No function
23	Beams 1 & 2 FX crossfade	000 003	002 255	Snap from cell to cell Fade duration: short to long

Channel	Function	Value	Percent/Setting
		000 005	No function
		006 010	Off (dimmer mode)
		011 015	Dimmer 1
		016 020	Dimmer 2
		021 025	Dimmer 3
		026 030	600 Hz
		031 035	1200 Hz
		036 040	2000 Hz
		041 045	4000 Hz
		046 050	6000 Hz
		051 055	25 KHz
		056 060	Fan mode auto
		061 065	Fan mode on
		066 070	Tilt reset
		071 075	Plate1 invert off
24	Control*	076 080 081 085	Plate1 invert on Plate2 invert off
		086090	Plate2 invert on
		091 095	Beam1 invert off
		096 100	Beam1 invert on
		101 105	Beam2 invert off
		106 110	Beam2 invert on
		111 115	Plate swap on
		116 120	Plate swap off
		121 125	Beam swap on
		126 130	Beam swap off
		131 140	No function
		141 150	No function
		151 155	No function
		156 160	No function
		161 170	No function
		171 255	No function

*Hold desired dimmer speed value for 3 seconds, then release. This changes the dimmer speed setting in the menu.

13CH

Channel	Function	Value	Percent/Setting
1	Tilt	000 255	0–100%
2	Fine tilt	000 255	0–100%
3	Plate dimmer	000 255	0–100%
4	Beam dimmer	000255	0–100%
		000 009	Classic shutter mode: disables duration control
5	Plate flash duration	010 250	Slow to fast
		251 255	100% On, no flash/strobe
		000 009	100%
6	Plate flash rate	010 250	Slow to fast
		251 255	100%
		000 009	Classic shutter mode: disables duration control
7	Beam flash duration	010 250	Slow to fast
		251 255	100% On, no flash/strobe

Channel	Function	Value	Percent/Setting
		000 009	100%
8	Beam flash rate	010 250	Slow to fast
		251 255	100% on
9	Plates red	000255	0–100%
10	Plates green	000 255	0–100%
11	Plates blue	000 255	0–100%
		000 005	No function
		006 042	Ramp up
		043 085	Ramp down
12	Beam FX	086 128	Ramp up-down
		129 171	Random
		172 214	Lightning
		215 255	Spikes
		000 005	No function
		006 010	Off (dimmer mode)
		011 015	Dimmer 1 (dimmer mode)
		016020	Dimmer 2 (dimmer mode)
		021 025	Dimmer 3 (dimmer mode)
		026 030	600 Hz
		031 035	1200 Hz
		036 040	2000 Hz
		041 045	4000 Hz
		046 050	6000 Hz
		051 055	25 KHz
		056 060	Fan mode auto
		061 065	Fan mode on
		066 070	Tilt reset
		071 075	Plate1 invert off
13	Control*	076 080 081 085	Plate1 invert on Plate2 invert off
		086 090	Plate2 invert on
		091 095	Beam1 invert off
		096 100	Beam1 invert on
		101 105	Beam2 invert off
		106 110	Beam2 invert on
		111 115	Plate swap on
		116 120	Plate swap off
		121 125	Beam swap on
		126 130	Beam swap off
		131 140	No function
		141 150	No function
		151 155	No function
		156 160	No function
		161 170	No function
		171 255	No function

*Hold desired dimmer speed value for 3 seconds, then release. This changes the dimmer speed setting in the menu.

11CH

Channel	Function	Value	Percent/Setting
1	Tilt	000 255	0–100%
2	Fine tilt	000 255	0–100%
3	Dimmer	000 255	0–100%
4	Plate flash duration	000 009 010 250 251 255	Classic shutter mode: disables duration control Slow to fast 100% On, no flash/strobe
5	Plate flash rate	000 009 010 250 251 255	100% Slow to fast 100%
6	Beam flash duration	000 009 010 250 251 255	Classic shutter mode: disables duration control Slow to fast 100% On, no flash/strobe
7	Beam flash rate	000009 010 250 251 255	100% Slow to fast 100% on
8	Plates red	000 255	0–100%
9	Plates green	000 255	0–100%
10	Plates blue	000 255	0–100%
11	Beam	000 255	0–100%

8CH

Channel	Function	Value	Percent/Setting
1	Tilt	000 255	0–100%
2	Fine tilt	000 255	0–100%
3	Dimmer	000 255	0–100%
		000 009	Open
		010 079	Strobe, slow to fast
4	Strobe	080 149	Pulse, slow to fast
		150 219	Random strobe, slow to fast
		220 255	Open
5	Red	000 255	0–100%
6	Green	000 255	0–100%
7	Blue	000255	0–100%
8	Beam	000 255	0–100%

Pixel Mapping

Beam Patterns

Contact Us

General Information Chauvet World Headquarters	Technical Support
Address: 3360 Davie Rd. Davie, FL 33314 Voice: 954-577-4455 Fax: (954) 929-5560Toll Free: 800-762-1084	Voice: 844-393-7575 Fax: 954-756-8015 Email: [email protected] Website: www.chauvetprofessional.com

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.

Color STRIKE M QRG Rev. 10

About This Guide

LIMITED WARRANTY

Safety Notes

Mounting Diagram

Control Panel Description

Pixel Mapping

Contact Us

Related Manuals

Leave a Comment Cancel reply
