CHAMPION POWER logo1CHAMPION POWER logoQUICK START GUIDE
EQUIPMENT 201184 Wireless

Remote Start Inverter Generator
User Guide

201184 Wireless Remote Start Inverter Generator

CHAMPION POWER EQUIPMENT 201184 Wireless Remote Start Inverter Generator201184

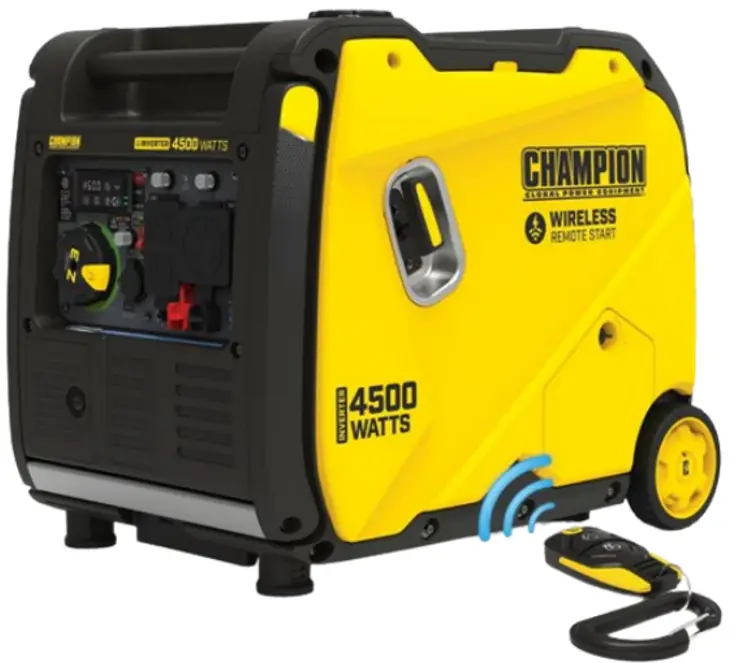

4500W Wireless Remote Start Inverter Generator

WARNING:
Read the ENTIRE operator’s manual to become familiar with the features of the product before operating.
Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury or even death.

Set Up

  1. Open shipping carton. CHAMPION POWER EQUIPMENT 201184 Wireless Remote Start Inverter Generator - icon1 Assembly > UnpackingCHAMPION POWER EQUIPMENT 201184 Wireless Remote Start Inverter Generator - Set Up

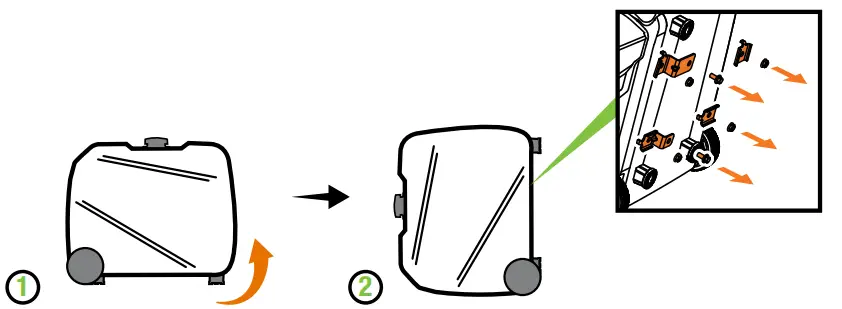

  2. Shipping Support. CHAMPION POWER EQUIPMENT 201184 Wireless Remote Start Inverter Generator - icon1 Assembly > Remove Shipping Support Hardware.CHAMPION POWER EQUIPMENT 201184 Wireless Remote Start Inverter Generator - Set Up1

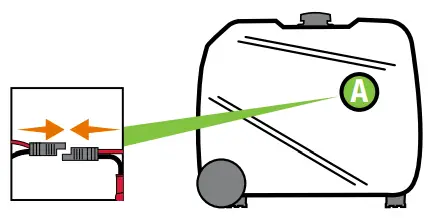

  3. Connect the battery.CHAMPION POWER EQUIPMENT 201184 Wireless Remote Start Inverter Generator - icon1 Assembly > Connect the Battery.
    Push two halves of battery connector together tightly.CHAMPION POWER EQUIPMENT 201184 Wireless Remote Start Inverter Generator - Set Up2

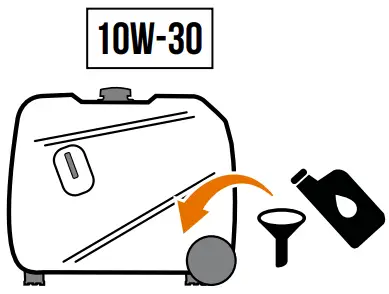

  4. Add oil. CHAMPION POWER EQUIPMENT 201184 Wireless Remote Start Inverter Generator - icon1 Assembly > Add Engine Oil.
    Recommended: 10W-30, up to 16.9 fl. oz. (500 ml) DO NOT overfill.CHAMPION POWER EQUIPMENT 201184 Wireless Remote Start Inverter Generator - Set Up3

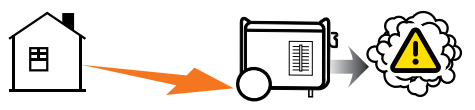

  5. Move the generator outdoors.
    Move generator to an open, outdoor area. Point exhaust away. Never run generator in enclosed areas (e.g., not in house or garage).CHAMPION POWER EQUIPMENT 201184 Wireless Remote Start Inverter Generator - Set Up4Keep all objects at least 5 feet (1.5 m) from generator. Heat from the muffler and exhaust gas can ignite combustible materials.CHAMPION POWER EQUIPMENT 201184 Wireless Remote Start Inverter Generator - Set Up5

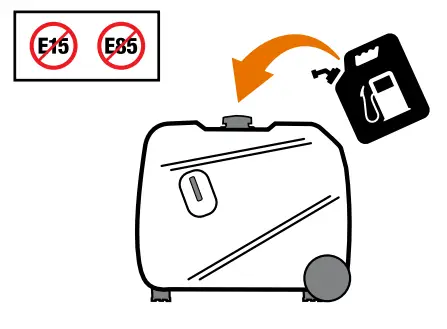

  6. Add fuel. CHAMPION POWER EQUIPMENT 201184 Wireless Remote Start Inverter Generator - icon1 Assembly > Add Fuel
    DO NOT use E15 or E85.CHAMPION POWER EQUIPMENT 201184 Wireless Remote Start Inverter Generator - Set Up6
  7. DO NOT plug in any electrical devices.CHAMPION POWER EQUIPMENT 201184 Wireless Remote Start Inverter Generator - Set Up7 NEVER START OR STOP THE GENERATOR WITH ELECTRICAL DEVICES CONNECTED OR TURNED ON!

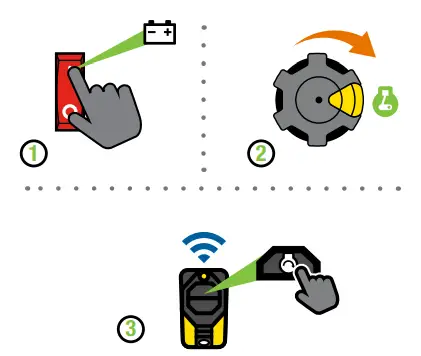

    8a. Wireless Start
    1. Push the battery switch to the “ON” position.
    2. Turn the EZ Start dial to the full “ON” position.
    3. Press and release the “START” button on the remote key fob.CHAMPION POWER EQUIPMENT 201184 Wireless Remote Start Inverter Generator - Set Up8

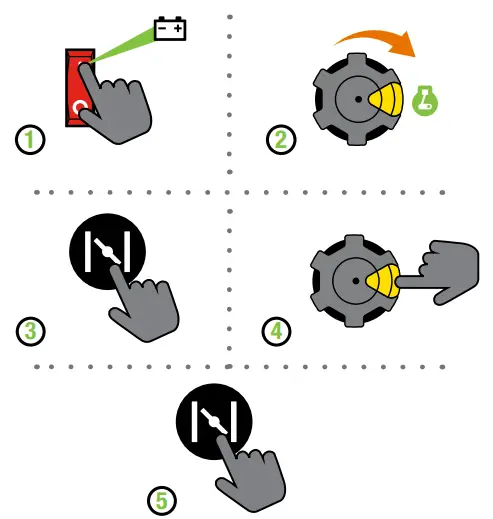

  8. 8b. Electric Start
    1. Push the battery switch to the “ON” position.
    2. Turn the EZ Start dial to the full “ON” position.
    3. Push the choke button.
    4. Press and hold ignition switch on EZ Start Dial.

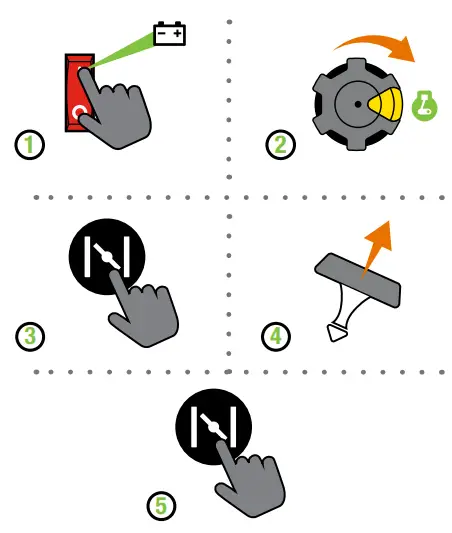

    5. Push the choke button.CHAMPION POWER EQUIPMENT 201184 Wireless Remote Start Inverter Generator - Set Up98c. Manual Start
    1. Push the battery switch to the “ON” position.
    2. Turn the EZ Start dial to the full “ON” position.
    3. Push the choke button.
    4. Pull the recoil to start the engine.
    5. Push the choke button. CHAMPION POWER EQUIPMENT 201184 Wireless Remote Start Inverter Generator - Set Up 10

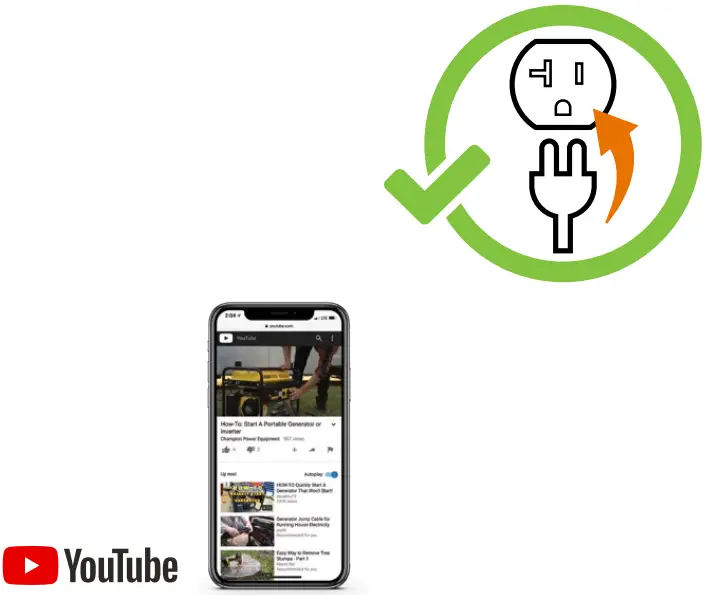

  9. Plug in. CHAMPION POWER EQUIPMENT 201184 Wireless Remote Start Inverter Generator - icon1 Operation > Connecting Electrical Loads.CHAMPION POWER EQUIPMENT 201184 Wireless Remote Start Inverter Generator - Set Up10
    Visit our YouTube channel to watch our how-to videos and subscribe to view our latest videos on our Champion Power Equipment products!
    CHAMPION POWER logo1

NEED ASSISTANCE OR HAVE A QUESTION?

GIVE US A CALL.
CHAMPION POWER EQUIPMENT 201184 Wireless Remote Start Inverter Generator - icon3 1•877•338•0999
CHAMPIONPOWEREQUIPMENT.COM
