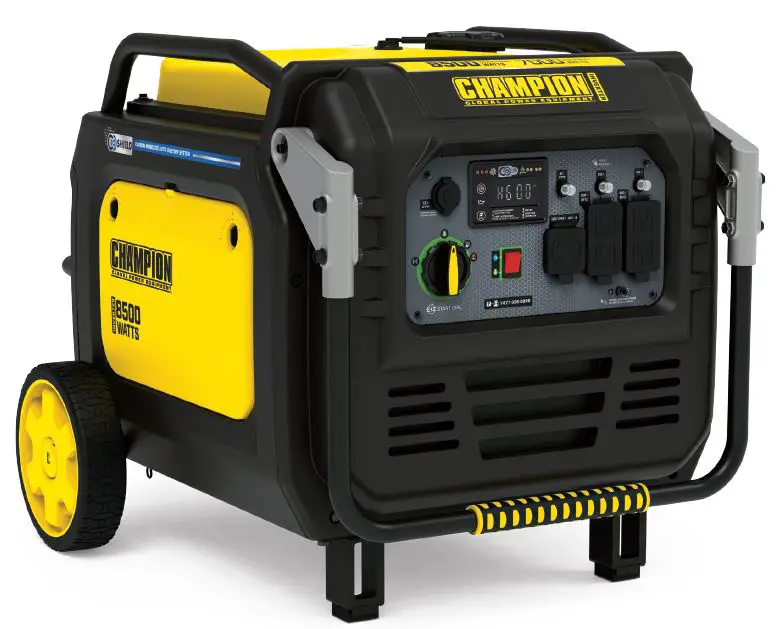

POWER EQUIPMENT 100719 8500 Watt Portable Inverter Generator
User Manual
WARNING: Read the ENTIRE operator’s manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, and personal property and cause serious injury or even death.
Contents
Set-Up
Open shipping carton Assembly
Unboxing

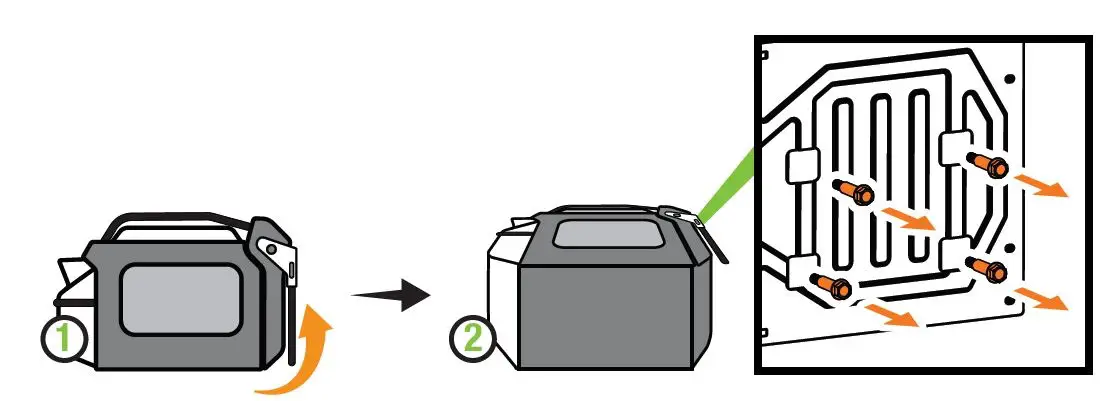

Remove brackets Assembly
Remove Shipping Support Brackets.
Attach wheel kit Assembly
Install the Wheel Kit

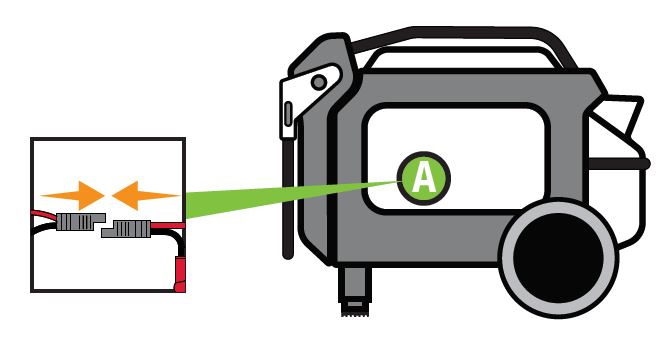

Connect the battery Assembly
Push two halves of battery connector together tightly.
Add oil Assembly Add Engine Oil.
Recommended: 10W-30, up to 37.2 fl. oz. (1100 ml) DO NOT overfill
MAKE SURE SHIPPING BRACKETS ARE REMOVED BEFORE ADDING OIL.

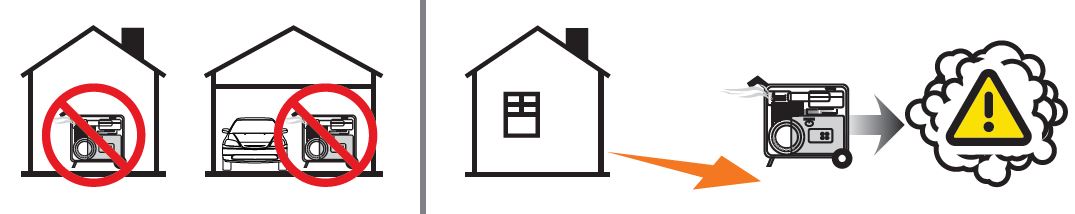

Move the generator outdoors
Move generator to an open, outdoor area. Point exhaust away from people and buildings. Never run a generator inside a home or garage.

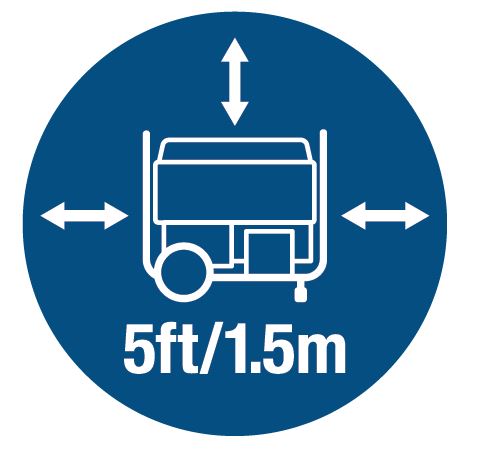

Keep all objects at least 5 feet (1.5 m) from the generator. The heat from the muffler and exhaust gas can ignite combustible materials.
Add fuel Assembly
DO NOT use E15 or E85.
DO NOT plug in any electrical devices
NEVER START OR STOP THE GENERATOR WITH ELECTRICAL DEVICES CONNECTED OR TURNED ON
A.Electric Start
Turn the EZ Start Dial to the “CHOKE” position
Press and hold the ignition switch.
Turn the EZ Start Dial to the “RUN” position
B.Manual Start
Turn the EZ Start Dial to the “CHOKE” position.
Remove the maintenance cover on the right side of the control panel.

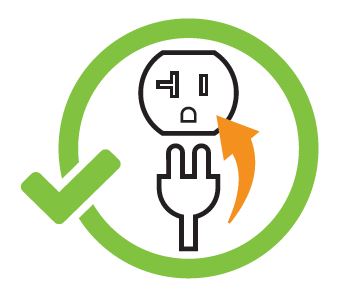

Plug in
Operation Connecting Electrical Loads

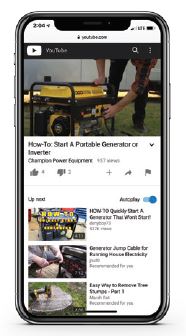

Youtube
- Visit our YouTube channel to watch our how-to videos and subscribe to view our latest videos on our Champion Power Equipment products
