Cell2 UR03 LED Flush Mount Kit User Manual

UR03 LED Flush Mount Kit
User Manual

UR03 LED Flush Mount Kit

Connect YELLOW wires of multiple lightheads together for synchronization (All heads should be set at the same Flash Pattern)

OPERATION

For Simultaneous or Alternating Flash:

1. Apply +VDC to RED and YELLOW wires simultaneously to enter Grouping mode; lighthead will display short (single or double) flash:
   • Single flash = Group1
   • Double flash = Group2
2. Remove YELLOW wire from +VDC then momentarily apply +VDC to change Groups:
   • Heads of the same Group will flash together.
   • Heads of different Groups will flash alternately.
3. Save and Exit the Grouping Mode by powering off the lighthead.

For Flash Patterns:
Momentarily apply +VDC to YELLOW wire:

• once for next pattern
• quick three times for FP#1

NOTE: This unit may not be factory set at FP# 1.

FLASH PATTERNS
1	Double [R65]
2	Single [2Hz]
3	Triple [2Hz]
4	Quad [2Hz]
5	Random
6	Steady
7	Single [SAE] [CA13]
8	Mega [SAE]
9	Double [SAE]
10	Triple [SAE]
11	Quad [SAE]
12	Quint [SAE]
13	Ultra [SAE]
14	Single-Quad
15	Single H/L
16	Singe-Triple-Quint

INSTALLATION – FLUSH MOUNT

1. Select a mounting location and drill an 1” (25.4mm) cut-out.

2. From the front, install the MOUNTING GROMMET onto the cut-out, and insert the LIGHTHEAD.

3. Ensure that the optical stripes are aligned vertically.

4. Where necessary, apply silicone around the reverse side to prevent from rotating.

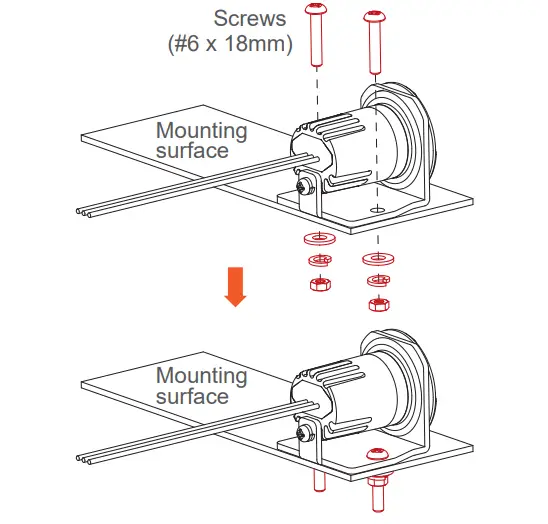

INSTALLATION – BRACKET MOUNT (sold-separately)

1. From the front, install the MOUNTING GROMMET onto the BRACKET, and insert the LIGHTHEAD.

2. Ensure that the optical stripes are aligned vertically.

3. Secure the LIGHTHEAD onto the BRACKET with a screw.

4. Secure the BRACKET onto the desired mounting surface with screws.
