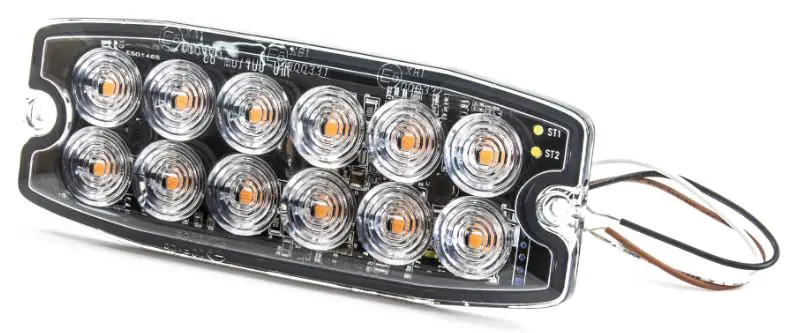

cell2 LP26 LED PAD

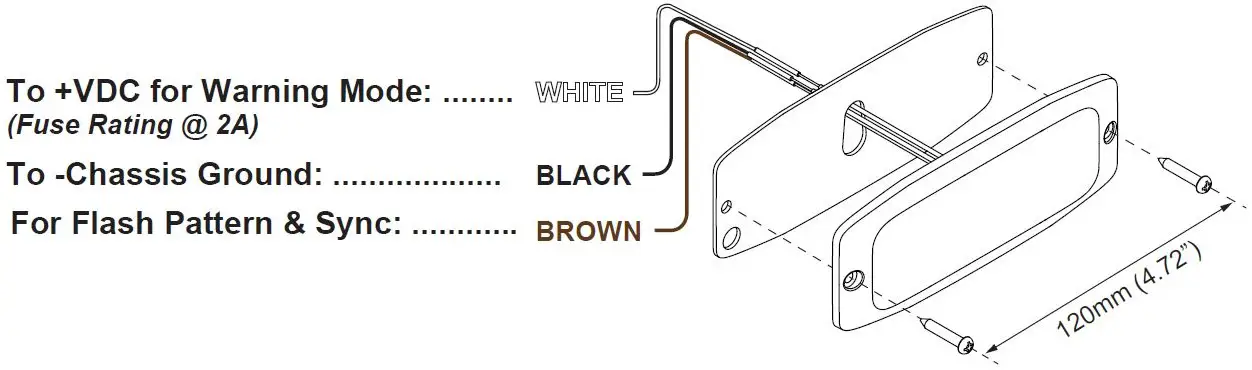

WIRING
- CAUTION: Ensure that the mounting surface is evenly flat; mounting this light head on non-flat surfaces may result in bending and/or water ingress.
- NOTE: When using an adhesive mount, ensure that the mounting surface is clean, dry, and well-unified before mounting.
OPERATION
For Flash Patterns:
Momentarily apply +VDC to BROWN wire:
- once for next pattern
- quick three times for FP#1
NOTE: This unit may not be factory-set at FP#1.
|
FP# |
Flash Pattern |
||||||
| 1 | Double | [R65] | 11 | Quint [SAE] | 21 | Triple | (Split) |
| 2 | Single | [2HZ] | 12 | Mega | 22 | Quad | (Split) |
| 3 | Triple | [2HZ] | 13 | Giga | 23 | Quint | (Split) |
| 4 | Quad | [2HZ] | 14 | Ultra [SAE] | 24 | Mega | (Split) |
| 5 | Random | 15 | Single-Quad | 25 | Giga | (Split) | |
| 6 | Steady/Cruise | 16 | Single H/L | 26 | Ultra | (Split) | |
| 7 | Single | [SAE/CA13] | 17 | Single-Triple-Quint | 27 | Single-Quad | (Split) |
| 8 | Double | [SAE] | 18 | Half-Steady-Half-Double (Split) | 28 | Single H/L | (Split) |
| 9 | Triple | [SAE] | 19 | Single (Split) | 29 | Single-Triple-Quint (Split) | |
| 10 | Quad | [SAE] | 20 | Double (Split) | 30 | Steady-Dim EF | |
- Actual approval will be based on the model purchased.
- Split = Top-half alternating Bottom-half.
For Simultaneous or Alternating Synchronization:
- Apply +VDC to WHITE and BROWN wires simultaneously to enter Grouping mode; the light head will display short (single or double) flashes:
- Single flash = Group1
- Double flash = Group2
- Remove BROWN wire from +VDC and momentarily apply to +VDC to change Group:
- Lightheads in the same Group will flash together.
- Group1 light heads and Group2 light heads will flash alternatingly.
- Save and exit Grouping Mode by disconnecting all power
- Connect BROWN wires of multiple light heads together for synchronization; all light heads should be set to the same Flash Pattern.
CAUTION
Overtightening the mounting screws could damage the light head and void the warranty. Use an in-lb torque wrench, and tighten the mounting screws with the suggested range of torque value: For #6 mounting screws – 6 to 7.8 in-lbs.
