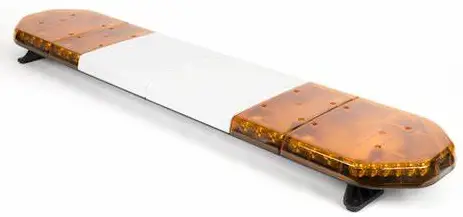

Cell2 KUIPER-FIT Illuminated Centre 1516.6mm
Operation Manual
WIRING & FUNCTIONS (A1)
Proper installation of the product requires the installer to have a good understanding of automotive electronics, systems and procedures. Different applications may require different functions. For optimum efficiency, it is highly recommended to determine, configure and test the required functions prior to installation.
WIRING
- After the lightbar has been mounted, route the control cable into the vehicle to the switch panel/controller location.
- Connect the BLACK wire to the vehicle chassis ground.
- Connect the RED wire and WHITE wire to a fused switch for independent control.
FUNCTIONS
RED- WARNING MODE
Activate Warning Mode by applying +VDC to RED wire.
To change flash pattern, tap +VDC to YELLOW wire while in Warning Mode,
- Quick once to the next pattern.
- Quick 3 times to reset to FP#1 (default Flash Pattern).
WARNING
- FAULTY CONNECTIONS MAY CAUSE THE LIGHTBAR TO MALFUNCTION AND / OR RESET TO ITS DEFAULT SETTINGS.
- DO NOT USE A HIGH PRESSURE POWER WASHER TO CLEAN YOUR LIGHTBAR; THIS MAY DAMAGE YOUR LIGHTBAR AND VOID ITS WARRANTY.
| FLASH PATTERN | |||||
| 1 | Double [2Hz] | All | 17 | Double [2Hz] | Split |
| 2 | Quad [2Hz] | All | 18 | Quad [2Hz] | Split |
| 3 | Single [2Hz] | All | 19 | Single [2Hz] | Split |
| 4 | Double (Corners) [2Hz] | All | 20 | Double (Corners) [2Hz] | Split |
| 5 | Quad (Corners) [2Hz] | All | 21 | Quad (Corners) [2Hz] | Split |
| 6 | Single (Corners) [2Hz] | All | 22 | Single (Corners) [2Hz] | Split |
| 7 | Random | All | 23 | Random | Split |
| 8 | Single | All | 24 | Single | Split |
| 9 | Double | All | 25 | Double | Split |
| 10 | Quad | All | 26 | Quad | Split |
| 11 | Quint | All | 27 | Quint | Split |
| 12 | Mega | All | 28 | Mega | Split |
| 13 | Ultra | All | 29 | Ultra | Split |
| 14 | Cruise | All | 30 | Single-Quad | Split |
| 15 | Single-Quad | All | 31 | Single H/L | Split |
| 16 | Single H/L | All | |||
* NOTE: Actual approval is based on the model ordered.
WHITE- ILLUMINATED CENTER SECTION
Activate Illuminated Center Section (ICS Lights) by applying +VDC to WHITE wire.
NOTE: This wire will not activate any function if order the lightbar without ICS lights in configuration.
