EDGESABER-SHROUD Edge saber Mount Kit
User Manual

Windshield Shroud Kit MANUAL
86-M5910-0201.0

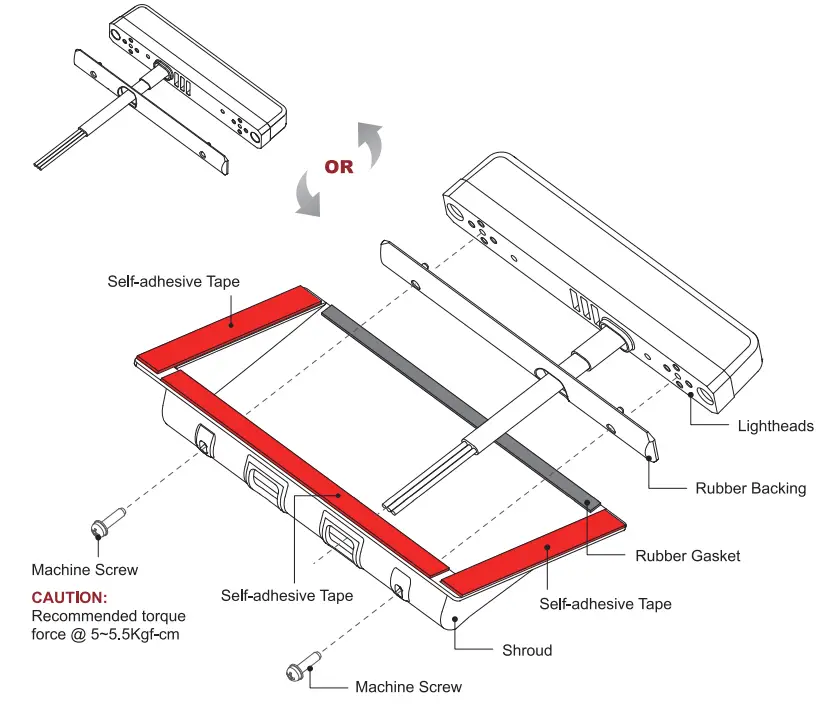

INSTALLATION

1. Assemble the lightheaded to the plastic shroud with the rubber backing.
2. Adjust the angle of the lightheaded before fixing it with the provided machine screws (ensure that they are on the same level).
3. Choose a mounting area on the windshield that is clear from obstruction to view or interference with driving.
4. Clean the mounting area thoroughly with alcohol and remove tape backings before mounting.
5. Press the assembly firmly against the windshield for 1 minute to complete the installation.
6. Make wiring according to the lightheaded manual.
   NOTE: Light heads may be oriented with cable exiting to the left or to the right of the rear shroud.

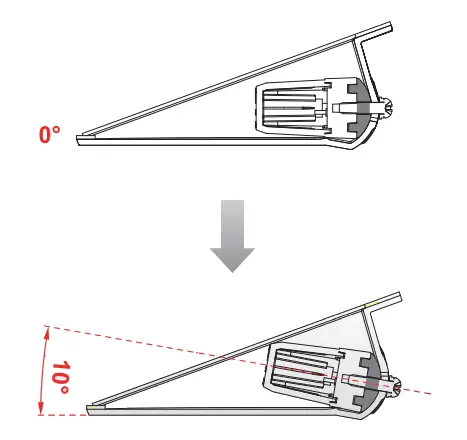

ADJUSTABLE ANGLE

Light heads may be adjust 10 degree up for optimum warning efficiency.
