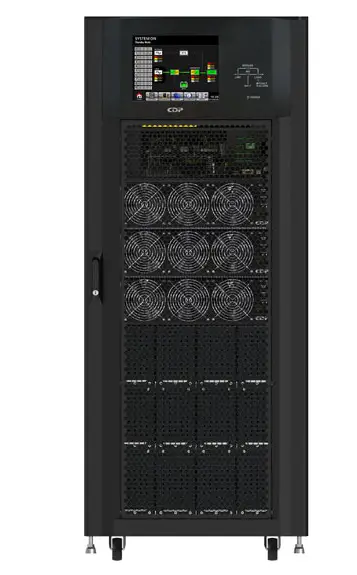

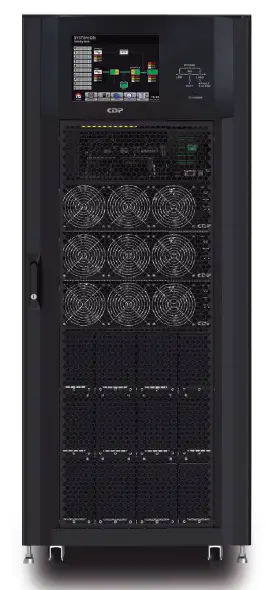

CDP UPO33-HM3AX Chicago Digital Power

Feature

True double-conversion
SP technology guarantees high performance
1O” LCD for comprehensive UPS information
Active power factor correction
5OHz/6OHz frequency converter mode
ECO mode operation for energy saving [ECO]
Emergency power off function [EPO]
Generator compatible
SNMP+USB multiple communications
3-stage extendable charging design for optimized battery performance
Maintenance bypass available

Specification


PHASE		3-phase in/3-phase out
CABINET CAPACITY		60KW
BATTERY TYPE		Built in Battery
ONE POWER MODULE CAPACITY		20KVA/20KW
MAX. POWER MODULE NO.		3 x 20kVA
MAX. BATTERY SET NO		120 pcs (12 Trays)

Voltage		3 x 120 VAC (Ph+N)
Voltage Range		156-253 VACat 100% load, 121 -155 VACat 70%load
Frequency Range		40Hz-70Hz
Power Factor I		ea 0.99 @ 100% load

Output Voltage		3 x 120 VAC (Ph+N)
AC Voltage Regulation (Batt. Mode)		±1%
Frequency Range (Synchronized Range)		46~54Hz or 56~64Hz
Frequency Range (Batt. Mode)		50 Hz± 0.1 Hzor60 Hz± 0.1Hz
Current Crest Ratio		3:1(max.)
Harmonic Distortion		as 1.5 % THD (Linear Load) as 4 % THD (Non-linear Load)
Transfer Time I	AC mode to Battery mode	zero
	Inverter to Bypass	zero
Waveform (Batt. Mode)		Pure Sine Wave
Overload I AC Mode		110% for 1 hr, 125% for 10 min, 150% to 1 min, >150% for200 ms
EFFICIENCY		Up to 96%

Nominal Voltage		240 with neutral +/-120V (12V x20 pcs)
Float Charging Voltage		2.25V /Cel
Boost Charging Voltage		2.35V I Cel
Temperature Compensation		Yes
Maximun Charging Current		8A for each power module (user adjustable)

LCD Panel		UPS status, load level, battery level, inpuVoutput voltage, backup time and fault conditions
ALARM
Battery Mode		Sounding every 4 seconds
Low Battery		Sounding every second
Overload		Sounding twice every second
Fault		Continuously sounding

Cabinet Dimension (mm)		1100 X 600 X 1475 (DX W X H)
Net Weight (kgs)		675

Operation Temperture		0-40°C
Operation Humidity		<95% and non-condersing
IP CLASS		IP 20

SmartUSB		Supports Windows® 2000/2003/XPNista/2008, Windows® 7/8, Linux and MAC
Optional SNMP		Power management from SNMP manager and web browser

Safety		UL 1778 / CSA C22 / NO 107, 3 -05
EMC		FCC PART 15, SUPPORT B class A
