1:8 Adventure Crawler
Pro neon green 2.4 GHz
Instructions
Contents
ASSEMBLY INSTRUCTIONS

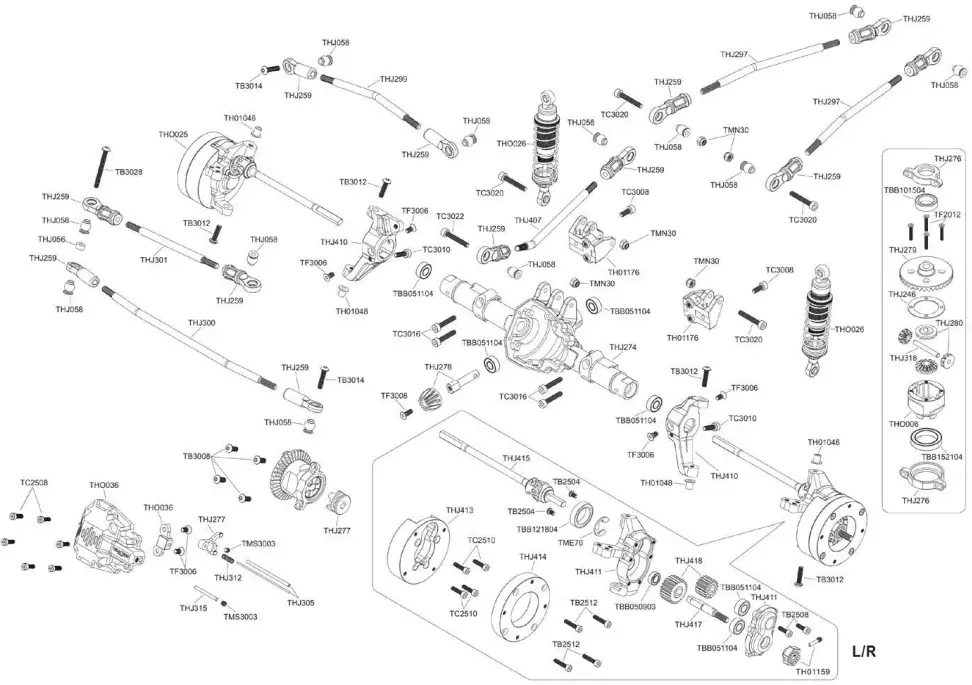

FRONT ASSEMBLY

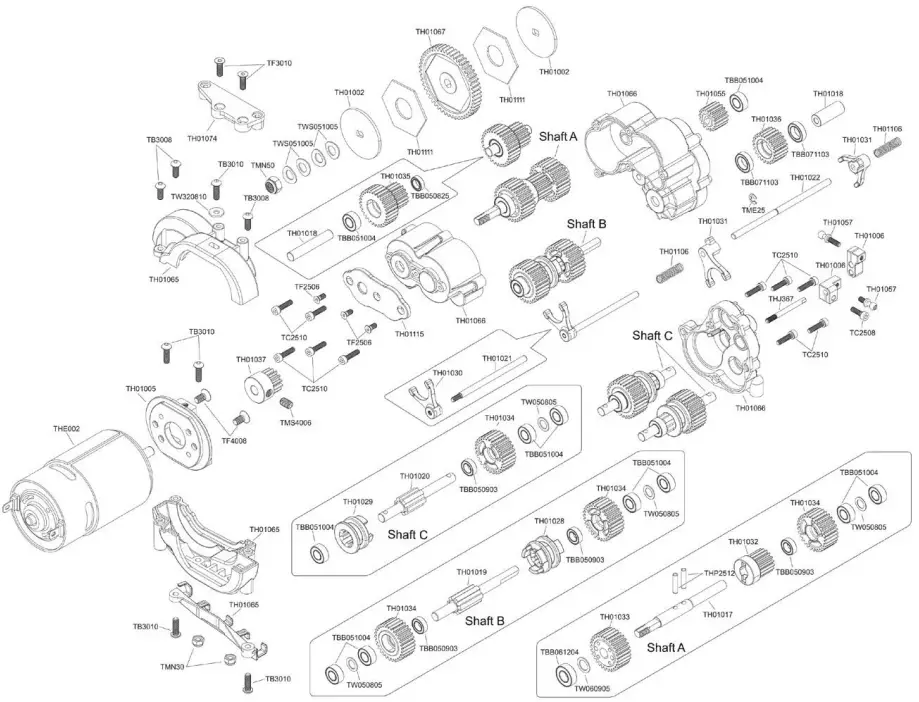

TRANSMISSION ASSEMBLY
SERVO ASSEMBLY
CHASSIS ASSEMBLY

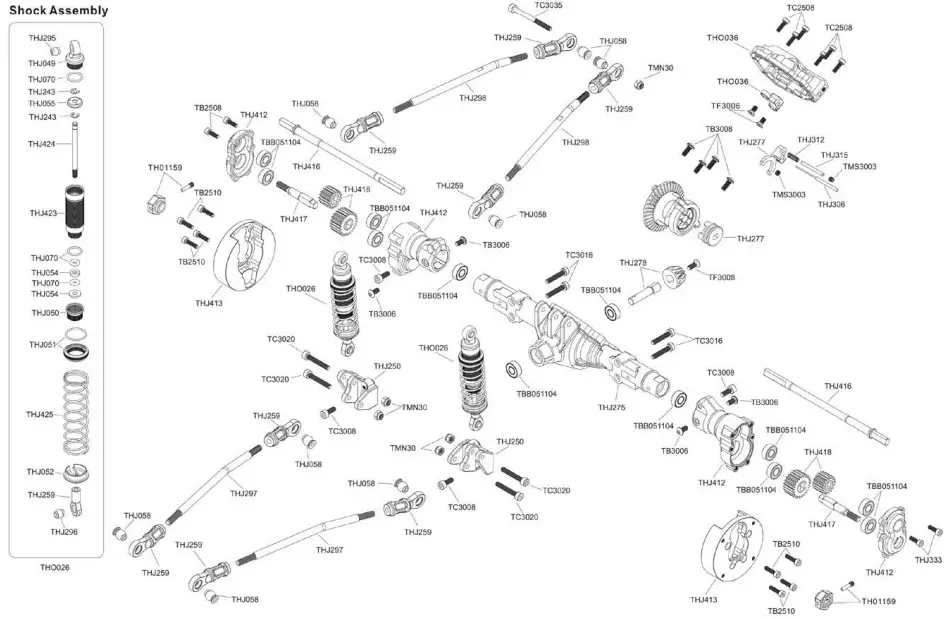

REAR ASSEMBLY

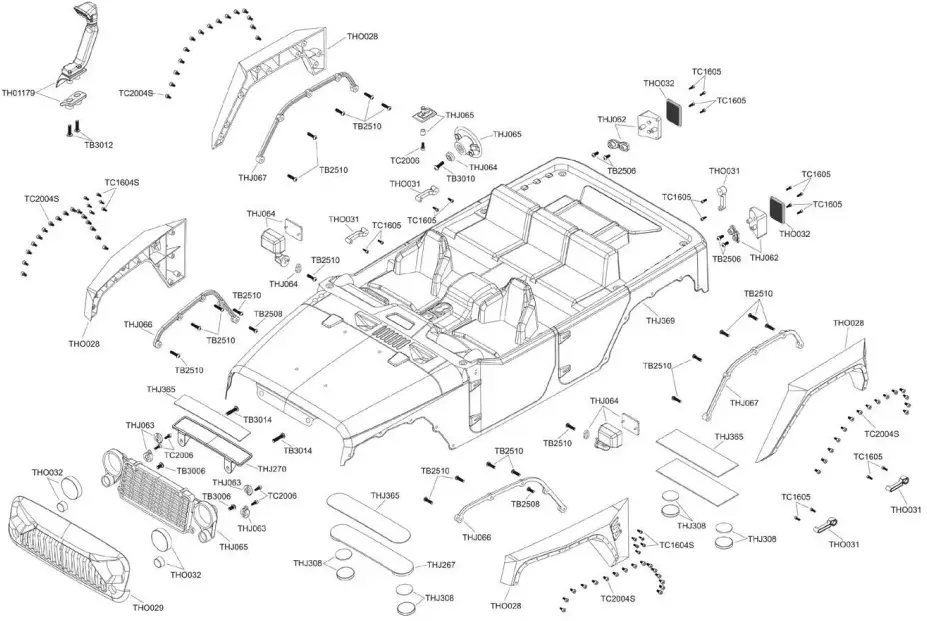

BODY ASSEMBLY
ROLL CAGE ASSEMBLY
MODULAR ASSEMBLY
SPARE PARTS
| THO1002 | Steal disc |
| THO1005 | Transmission motor mount |
| THO1006 | Ball mount set |
| THO1007 | 2WO/4W0D servo arm |
| THO1008 | Differential lock servo arm |
| THO1017 | Transmission first shaft |
| THO1018 | Transmission shaft set |
| THO1019 | Transmission 2-speed shaft |
| THO1020 | Transfer case shaft |
| THO1021 | 2-Speed link |
| THO1022 | Transfer case link |
| THO1028 | 2-Speed synchronizer |
| THO1029 | Transfer case synchronizer |
| THO1030 | 2-Speed shift fork |
| THO1031 | Transfer case fork |
| THO1032 | Orive gear 17T |
| THO1033 | Drive gear 29T |
| THO1034 | Gear 29T |
| THO1035 | Gear 17-29T |
| THO1036 | Gear 23T |
| THO1037 | Pinion gear 14T |
| THO1048 | King pin bushing |
| THO10S1 | Cable mount |
| THO1065 | Transmission housing mount |
| THO1066 | Transmission housing |
| THO1067 | Spur gear 50T |
| THO1071 | Servo mount set |
| THO1074 | Box Battery tray |
| THO1106 | Spring 04.3*™16mm |
| THO1110 | Servo saver spring |
| THO1111 | Slipper pad |
| THO1112 | Double side tape&SEVA kit |
| THO1115 | Transmission strengthen mount |
| THO1057 | Ball 4mm |
| THO11S9 | Hex hub |
| THON73 | Skid plates |
| THO1174 | Steering servo mount |
| THO1175 | Rear brace set |
| THO1176 | Linkage mount |
| THO1177 | Floor pans |
| THO1178 | Luggage rack |
| THO1179 | Snokte |
| THO1180 | Shift linkage |
| THEOO1 | TH-GT5 transmitter |
| THEOO02 | 775 Brushed motor |
| THEOO3 | TH1036 HV servo |
| THEO04-HV | TH1623 HV servo |
| THEOO? | LED light system set |
| THJO30 | Spare wheel bracket |
| THJO039 | Drive shaft |
| THJ049 | Shock upper cap |
| THJOSO | Shock cap nut |
| THJOS1 | Adjusting nut |
| THJOS2 | Spring mount set |
| THJOS4 | Shock spacer |
| THJOSS | Shock piston |
| THJO56 | Spacer |
| THJ0S7 | Ball end 5.8mm |
| THJO58 | Bail 7mm |
| THJO60 | Linkage ball end 7mm |
| THJO62 | Roll-cage sides |
| THJO63 | Light bar set |
| THJO64 | Roll-cage top |
| THJO65S | Radiator |
| THJO66 | Front car wheel trims |
| THJO67 | Rear car wheel trims |
| THJ068 | Lamp-shade |
| THJO7O | O-ring set |
| THJO77 | Velcro 170mm |
| THJO78 | Brushed ESC 80A |
| THJOBO | Velcro strap 20*200mm |
| THJO88 | KX Hub rim |
| THJO89 | Inner rim |
| THJO90 | KX Hub carrier |
| THJO91 | KX Hub cap |
| THJO92 | KX Wheel hub |
| THJ244 | M4x2.5* 12mm screw shaft |
| THJ246 | Differential Pads |
| THJ259 | Linkage ball set |
| THJ262 | Front bumper set |
| THJ263 | Rear bumper set |
| THJ266 | Shock hoops set |
| THJ267 | Body mount set |
| THJ270 | Body decoration set |
| THJ274 | Solid axle set front |
| THJ275 | Solid axle set rear |
| THJ276 | Bearing seat |
| THJ277 | Differential lock set |
| THJ278 | 12T Bevel gear set |
| THJ279 | 36T Bevel gear |
| THJ280 | Diff gear set |
| THJ295 | Ball 5.5mm |
| THJ296 | Ball 5.6mm |
| THJ297 | Down threaded stainless steel link( |
| THJ298 | Up threaded stainless steel link |
| THJ299 | Front threaded stainless steel link |
| THJ300 | Steering threaded Stainless steel link |
| THJ301 | Servo threaded Stainless steel link |
| THJ305 | Front cable set |
| THJ306 | Rear cable set |
| THJ307 | Chassis rail set |
| THJ308 | Magnet set |
| THJI312 | Spring 02.6%12.7mm |
| THJ315 | Pin 2.0x21mm |
| THJ318 | Pin 3x23mm |
| THJ319 | Antenna pipe set |
| THJ365 | Double side tape kit |
| THJ367 | Gearshift pin |
| THJ369 | Clear body set |
| THJ369-RD | Painted body red |
| THJ369-BL | Painted body blue |
| THJ369-GY | Painted body gun gray |
| THJ406 | Antenna set |
| THJ407 | Front up threaded stainless steel link |
| THJ409 | Toe Link mount |
| THJ410 | Knuckle carrier |
| THJ411 | Steering knuckles |
| THS412 | Rear portal axle |
| THJ413 | Weight block 108g |
| THJ414 | Weight block 82g |
| THJ415 | Universal axle set |
| THJ416 | Straight axle Shaft |
| THJ417 | Portal axte output shaft |
| THJ418 | Gear set 17T-23T |
| THS423 | Shock absorber body |
| THJ424 | Shock shaft |
| THJ425 | spring 017x60mm |
| THOOOEG | Aluminum differential housing |
| THOO27 | Blade side frame |
| THOO28 | Armor wheel lintel! |
| THOO29 | Angry face |
| THOO30 | Steering arm |
| THOO31 | Wiper |
| THOO32 | Lamp cover |
| THOO34 | Mudguard |
| THOO3S | All terrain tire |
| THOO36 | Axle cover |
| THP2512 | Pin 2.5™12mm |
| TB2010 | M2* 10 Button head screw |
| TB2504 | M2.5*4 Button head screw |
| TB2506 | M2.5*6 Button head screw |
| TB2508 | M2.5*8 Button head screw |
| 762510 | M2.5210 Bulton head screw |
| TB3004 | M34 Bulton head screw |
| TB3I006 | M36 Bulton head screw |
| TB3008 | M38 Button head screw |
| TB3010 | M310 Button head screw |
| TB3012 | M312 Button head screw |
| TB3014 | M314 Button head screw |
| TB3016 | M3*«16 Button head screw |
| TB3018 | M3*«18 Button head screw |
| TB3020 | M3«20 Button head screw |
| TB3022 | M322 Button head screw |
| TB3028 | M328 Button head screw |
| 764012 | M412 Button head screw |
| TB4040 | M440 Button head screw |
| TC1604S | M1.6™4 Cap head screw(silver) |
| TC1605 | M1.6«5 Cap head screw |
| TC2004S | M24 Cap head screw( silver) |
| TC2006 | M2*6 Cap head screw |
| TC2008S | M28 Cap head screw(sitver) |
| TC2508 | M2.5*8 Cap head screw |
| TC2510 | M2.5=10 Cap head screw |
| TO2512 | M2.5=12 Cap head screw |
| TC2512S | M2.5×12 Cap head screw(silver) |
| TC2514 | M2.5=14 Cap head screw |
| TC3008 | M38 Cap head screw |
| TC3010 | M310 Cap head screw |
| TC3016 | M316 Cap head screw |
| TC3020 | M320 Cap head screw |
| TC3022 | M322 Cap head screw |
| TC3035 | M3=35 Cap head screw |
| TF2012 | M212 Flat head screw |
| TF2506 | M2.5~x6 Flat head screw |
| TF3006 | M36 Flat head screw |
| TF3008 | M36 Flat head screw |
| TF3010 | M310 Flat head screw |
| TF3012 | M312 Flat head screw |
| TF3014 | M314 Flat head screw |
| TF3018 | M318 Flat head screw |
| TF4008 | M48 Flat head screw |
| TF4025 | M425 Flat head screw |
| TBBOS0825 | Bearing 5*8«2.5 |
| TBB0S0903 | Bearing 5*9×3 |
| TBBOS 1004 | Bearing 510=4 |
| TBB051104 | Bearing 5=11*4 |
| TBB061204 | Bearing 6124 |
| TBBO7 1103 | Bearing 7×11%3 |
| TBB101504 | Bearing 10*15%4 |
| TBB121804 | Bearing 12%18*4 |
| TBB152104 | Bearing 15*21%4 |
| TME25 | E-clip 2.5mm |
| TME70 | E-clip 7mm |
| TMN25 | M2.5 Nylon nut |
| TMN30 | M3 Nylon nut |
| TMNSO | M5 Nylon nut |
| TMNF30 | M3 Flanged nylon nut |
| TMNF40 | M4 Flanged nylon nut |
| TMS3003 | M33 Set screw |
| TMS3005 | M35 Set screw |
| TMS4006 | M46 Sel screw |
| TW030705 | Washer 3*7×0.5mm |
| TW050805 | Washer 5x8x0.5mm |
| TW060905 | Washer 6«9*0.5mm |
| TW181702 | Washer 15x17x0.2mm |
| TW320810 | Washer 3.2*8x1mm |
| TWS051005 | Spring washer 5*10×0.5mm |
NOTES…….
