CARGIFAK CC5612-LED-BG 2 Tier Crystal Gold Chandelier Instruction Manual

Contents

(ITEM NO: CKCC5612-LED-BG)

Pis read the following instruction before assemble. Pis consult the qualified Electrician if you are not familiar with electrical wiring.

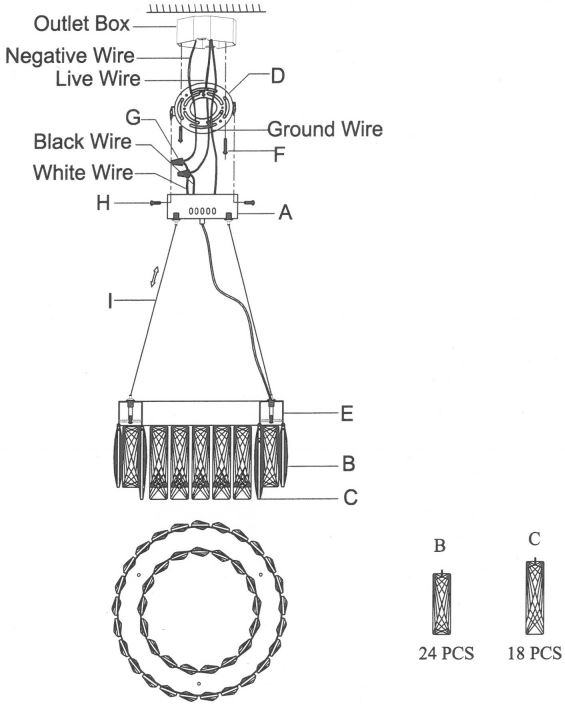

Fix the mounting plate (D) to the outlet box by screws (F).
Connect the wires of the outlet box and all the wires of the lamp body through the wiring nut (G), Black wire with the live wire, white wire with negative wire.ground wire with ground wire.
Fasten canopy (A) to the mounting plate (D) with the ball nuts (H).
Adjust the wire length according to your needs to adjust the hanging height of the lamp.
Fasten crystal (8) and (C) to the lamp body (E) respectively.
