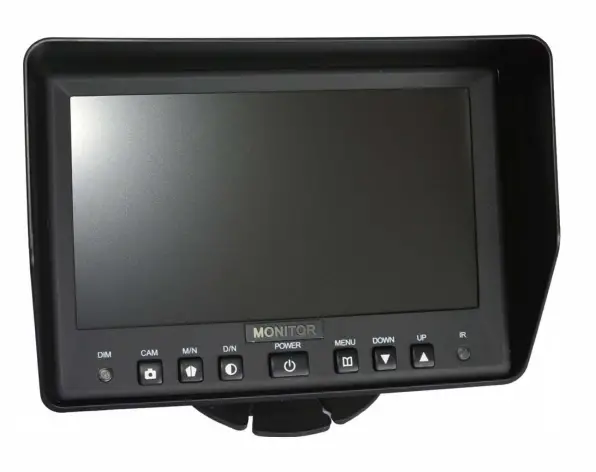

CarComs CC-RVC-TM7001 7 Inch TFT Digital Monitor
Contents
Technical Parameter
| MODEL | CC-RVC-TM7001 |
| Screen size | 7“ IPS Super TFT panel |
| Aspect Ratio | 16:9 image |
| Video Input | 1 channels CVBS） |
| Audio Input | 2 Channels |
| Speaker | N/A |
| Trigger | 1 channels |
| Resolution | 1024 x 3(RGB) x 600 |
| Brightness | 520cd/m2 |
| Contrast radio | 700:1 |
| Viewing Angle | H:85 V:85 |
| External Dimensions | 188.3*132.1*80.2mm (W)*(H)* (T) |
| Operating Voltage | 12-36V DC |
| Power | N/A(No cameras) |
| Operation Temperature: | –40℃~+80℃.RH95% Max |
| Storage Temperature: | -45℃~+90℃.RH95% Max |
| Waterproof | IP69K |
| Options | Speaker, Remote Control |
Package Contents
 |
 |
|

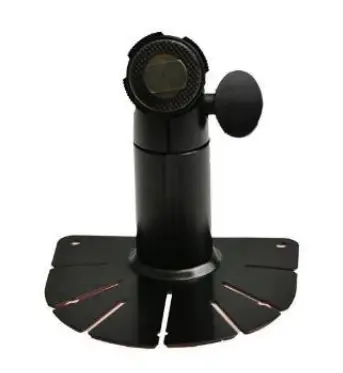

BR-BK03-H-Bracket |

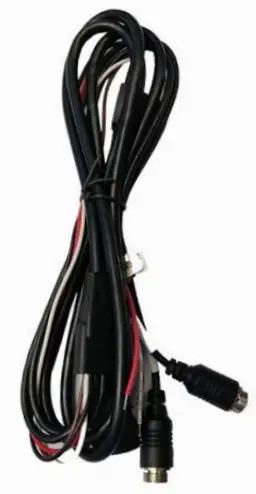

cable |
Options
 |
|

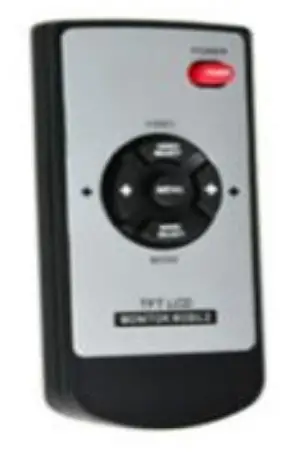

Remote control |
