Cadet TEP302DW TEP Series Programmable Thermostats User Guide

 Cadet TEP302DW TEP Series Programmable Thermostats

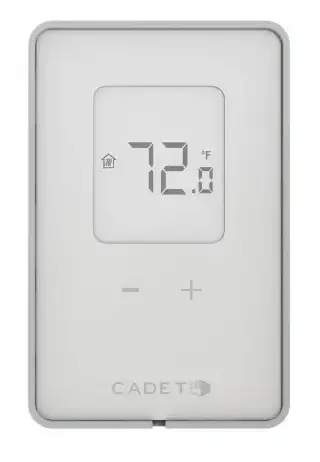

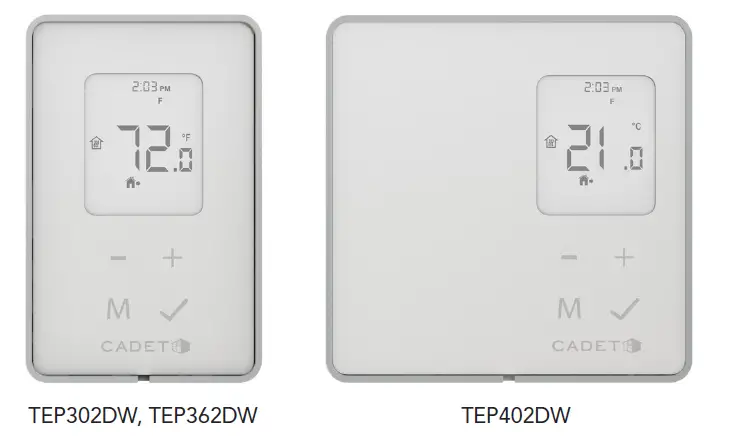

TEP SERIES PROGRAMMABLE THERMOSTATS

Product Information: The TEP Series Programmable Thermostats are electronic thermostats that allow youto program and control the temperature of your home or office. The thermostat features a display that shows the time, days of the week, heat mode, fan or convection mode, quick modes, time format, lock temperature display, and programmed event. The thermostat has default settings for language, heating mode, and time setup that can be changed by following specific instructions. The thermostat also has programming options for weekdays and weekends.

Product Usage Instructions

1. Remove the protective film off the front of the thermostat before use.
2. Apply moderate pressure to the center of each button to operate. Don’t leave your finger too close to the screen between each touch or the thermostat may react to an unintended touch.
3. Default & Time Setup: Before programming, follow the below instructions for setting up the default language, heating mode, and time setup.
   1. For French language: Press + and _ at the same time, then press M. M T W T F S S will flash. Press + or _ to change to L M M J V S D. The days of the week blink for 6 seconds then display returns to normal.
   2. For fan-forced heaters: Press + and _ at the same time, then press M 3 times. The icon will flash. Press + or _ to change to fan mode. The icon blinks for 6 seconds then display returns to normal.
   3. To set time and day display: Press + and _ at the same time. 88:88 or PM will display. Adjust hours using + or _ to the correct hour and AM or PM.
   4. To completely reset the thermostat to factory settings, press and hold M for 10 seconds.
4. Programming: Follow the below instructions for programming the thermostat.
   1. Plan and write down your weekday and weekend schedule times before you start programming.
   2. Setup begins with Wake Up [ ] time for your 5 weekdays and goes all the way through weekend programming in one sequence.
   3. Immediately repeat steps 2 through 5 to program Away [ ], Return [ ], and Sleep [ ] for your 5 weekdays. When weekday programming is complete, days of the week switch to S S and hours flash to begin weekend programming with Wake Up.
   4. Don’t hesitate between steps–if you wait more than 8 seconds, the thermostat returns to the main screen and you will need to start over!
5. Often Used: Follow the below instructions for commonly used thermostat functions.
   1. To temporarily change set temperature: The display shows the current room temperature. Press + or – to temporarily change the temperature. The display blinks for 6 seconds then returns to normal. HOLd now appears where the time is displayed. The next scheduled program event will override this temporary setting.
   2. To turn off (standby): Press + and _ at the same time, thenpress M 4 + or -. The icon will flash. The icon becomes steady and the temperature display turns blank. When enabled, only the icon remains visible on the screen. To disable, press and hold + and _ until the screen activates. The display blinks and may show 99.9 before it returns to normal.
6. Refer to the User’s Guide for complete installation instructions, additional options including a locking function, additional daily modes for vacation, comfort, energy savings, and other important operating and safety instructions.

IMPORTANT!
Remove the protective film off the front of the thermostat before use. Moderate pressure must be applied to the center of each button to operate. Don’t leave your finger too close to the screen between each touch or the thermostat may react to an unintended touch.

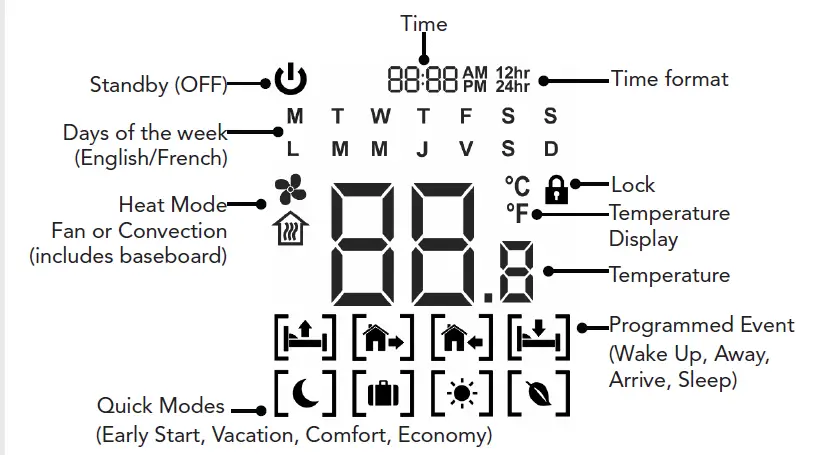

DISPLAY

DEFAULT & TIME SETUP (COMPLETE BEFORE PROGRAMMING)

English is the default. For French:

1. Press + and at the same time
2. Press M. M T W T F S S will flash
3. Press + or _ to change to L M M J V S D
4. The days of the week blink for 6 seconds then display returns to normal

Celsius is the default. For Fahrenheit:

1. Press + and at the same time
2. Press M twice. °C will flash
3. Press + or _ to change to °F
4. The icon blinks for 6 seconds then display returns to normal

Convection (baseboard) heating mode is the default. For fan-forced heaters:_

1. Press + and at the same time
2. Press M 3 times. will flash
3. Press + or _ to change to
4. The icon blinks for 6 seconds then display returns to normal

Set T _ime and Day Display. Default is 12:01AM Monday.

1. Press + and at the same time
2. Press M 6 times. 12hr will flash; if okay, press ü and skip next step
3. Press + or _ to change to 24hr if desired, press ü
4. :88 will flash. Adjust hours using + or _ to the correct hour and AM or PM, then ü
5. 88: will flash. Adjust minutes using + or _ then press ü
6. M T W T F S S will flash. Adjust the day using + or _ then press ü

To completely reset the thermostat to factory settings, press and hold M for 10 seconds.

PROGRAMMING (AFTER SETUP IS COMPLETE)

Programming Setup
tip: Plan and write down your weekday and weekend schedule times before you start programming.

Setup begins with Wake Up [] time for your 5 weekdays and goes all the way through weekend programming in one sequence.

1. Press M. The Wake Up icon and M T W T F are on screen
2. :88 hours will flash. Adjust using + or _ then press ü
3. 88: minutes will flash. Adjust using + or _ then press ü
4. The temperature will flash. Adjust using + or _
5. [] is now programmed. Press ü.

Immediately repeat steps 2 through 5 to program Away [], Return [], and Sleep [] for your 5 weekdays. When weekday programming is complete, days of the week switch to S S and hours flash to begin weekend programming with Wake Up.

Don’t hesitate between steps—if you wait more than 8 seconds, the thermostat returns to the main screen and you will need to start over!

OFTEN USED

Temporarily Change Set Temperature
The large numeric display shows the current room temperature.

1. Press + or _ to temporarily change the temperature
2. The display blinks for 6 seconds then returns to normal

HOLd now appears where the time is displayed. The next scheduled program event will override this temporary setting.

Turn OFF (Standby)_

1. Press + and at the same time
2. Press M 4 times. will flash
3. Press + or _ to activate
4. The icon becomes steady and the temperature display turns blank.

When enabled, only the icon remains visible on the screen. To disable, press and hold + and _ until the screen activates. The display blinks and may show 99.99 before it returns to normal.

Note: See the User’s Guide for complete installation instructions, additional options including a locking function, additional daily modes for vacation, comfort, energy savings, and other important operating and safety instructions.

Glen Dimplex Americas
Telephone: 1-888-346-7539
www.cadetheat.com
In keeping with our policy of continuous product improvement, we reserve the right to make changes without notice.
© 2022 Glen Dimplex Americas
LI-1058-R00-021722
A BRAND OF GLEN DIMPLEX AMERICAS
