Busch M ller 901 Cycle Star E Mirror Instruction Manual

Busch M ller 901 Cycle Star E Mirror

Instruction

Inner handlebar mounting

1. Open the handlebar end.

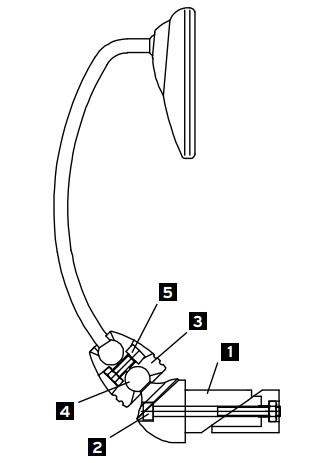

2. Insert the inner clamp system 1 into the handlebar end and tighten the hexagon socket screw.
3. Put the ball clamp 3 attached to the end of the bar onto the ball 4 and tighten the hexagon socket screw 5 so that the mirror cannot move during the ride.
4. Align the mirror.

Outer handlebar mounting

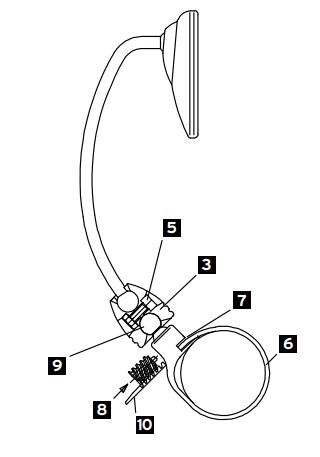

1. Bend the plastic screw clamp 6 around the handlebar (if necessary, place a rubber strip underneath to prevent slipping) and thread it into the clamping slot 7.
2. Firmly press in the plastic screw 8 with the Allen key provided and tighten until the clamp is firmly attached to the handlebar.
3. Place the ball clamp 3 attached to the end of the bar on ball 9 and tighten the hexagon socket screw 5 so that the mirror cannot move during the ride.
4. Align the mirror.
5. Cut off the protruding tab 10.
