1020231-10 Push Aerator
Installation Guide

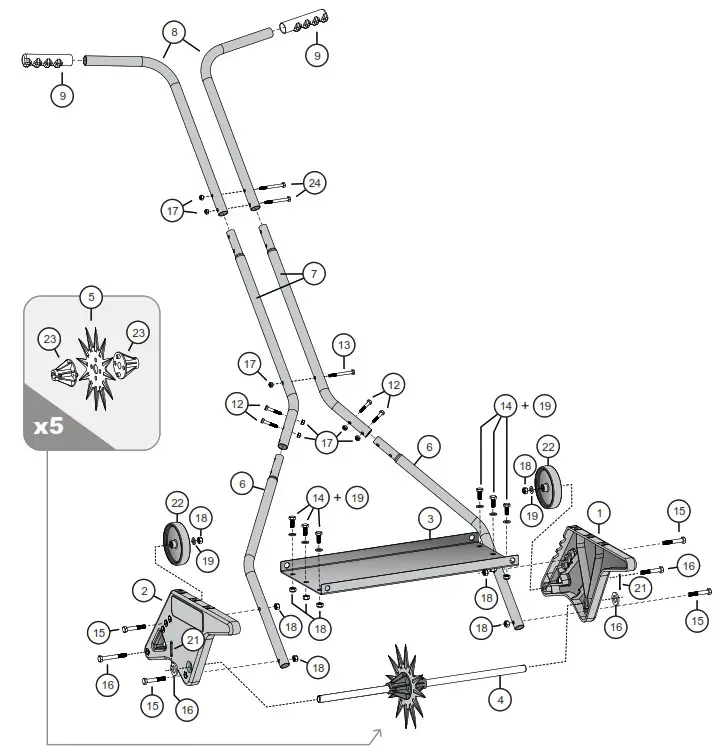

PARTS
| Ref. | Part # | Description | Qty |
| 1 | 1020370 | Side Plate; Left | 1 |
| 2 | 1020371 | Side Plate; Right | 1 |
| 3 | 1020231-10 | Tray | 1 |
| 4 | 1020236 | Axle | 1 |
| 5 | 1018833 | Aerator Tines – Replacement Tine Pack, Qty: 5x (# 1020238) |
5 |
| 6 | 1020232-10 | Handle Tube; Lower | 2 |
| 7 | 1020233-10 | Handle Tube; Middle | 2 |
| 8 | 1020234-10 | Handle Tube; Upper | 2 |
| 9 | 1020235 | Handle Grip | 2 |
| 10 | 1020200 | Hardware Bag ** | 1 |
| 11 | 1020363 | Bearing Bag ** | 1 |
Installation Questions?
Missing Parts?
Replacement Parts?
DON’T GO BACK TO THE STORE!
Please call our Customer Service Department, Toll Free: 877-728-8224 or [email protected]
Illustrations on this page are to scale for faster identification of hardware during assembly.
DO NOT RETURN PRODUCT IF YOU ARE MISSING PARTS.
Please Call: 1 877-728-8224
| 12 | Bolt; Hex Head, M6 x 1.00 x 30 (x4) M06H10030P05 |
 |
| 13 | Bolt; Hex Head, M6 x 1.00 x 50 (x1) M06H10050P05 |
 |
| 14 | Bolt; Hex Head, M8 x 1.25 x 20 (x6) M08H12520P05 |
 |
| 15 | Bolt; Hex Head, M8 x 1.25 x 50 (x4) M08H12550P05 |
 |
| 16 | Bolt; Hex Head, M8 x 1.25 x 65 (x2) M08H12565P05 |
 |
| 17 | Bolt; Hex Head, M6 x 1.00 x 55 (x2) M06H10055P05 |
 |
| 18 | Locknut; Nylon,M6 x 1.00 (x7) M06N100P05 |
 |
| 19 | Locknut; Nylon, M8 x 1.25 (x12) M08N125P05 |
 |
| 20 | Washer; M8 (x8) M08P16016FL |
 |
| 21 | Washer; Flat, M16 (x6) M16P30030FW |
|
| 22 | Cotter Pin 3.5mm, (x2) M16P30030FW |
 |
| Ref. | Part # | Description | Qty |
| 10 | 1020200 | Hardware Bag | 1 |
| 12 | M06H10030P05 | Bolt; Hex Head, M6 x 1.00 x 30 | 4 |
| 13 | M06H10050P05 | Bolt; Hex Head, M6 x 1.00 x 50 | 1 |
| 14 | M08H12520P05 | Bolt; Hex Head, M8 x 1.25 x 20 | 6 |
| 15 | M08H12550P05 | Bolt; Hex Head, M8 x 1.25 x 50 | 4 |
| 16 | M08H12565P05 | Bolt; Hex Head, M8 x 1.25 x 65 | 2 |
| 17 | M06N100P05 | Locknut; Nylon, M6 x 1.00 | 7 |
| 18 | M08N125P05 | Locknut; Nylon, M8 x 1.25 | 12 |
| 19 | M08P16016FL | Washer, M8 | 8 |
| 20 | M16P30030FW | Washer; Flat, M16 | 6 |
| 21 | 1020239 | Cotter Pin, 3.5mm | 2 |
| 22 | 1020237 | Wheel | 2 |
| 24 | M06H10055P05 | Bolt; Hex Head, M6 x 1.00 x 55 | 2 |
| 11 | 1020363 | Bearing Bag | 1 |
| 23 | B-5425 | Bearing | 10 |
EXTRA PARTS:
Four extra washers are provided, however, may not be needed after Step 2. ( #20, Flat Washer; M16 – Qty. 4 Remaining )
1020202-C
