BRIGGS and STRATTON 020685-00 3, 100 PSI Pressure Washer Instruction Manual

Contents

BRIGGS and STRATTON 020685-00 3, 100 PSI Pressure Washer Instruction Manual

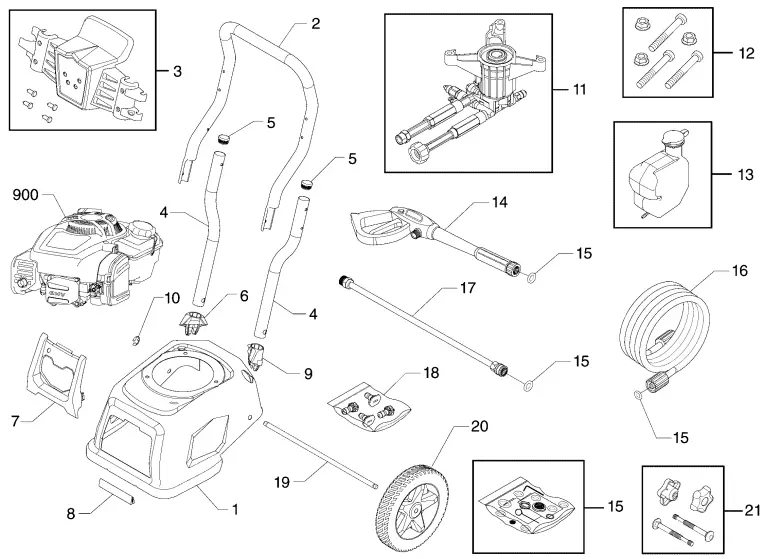

Main Uni

Note: Unless noted otherwise, use the standard torque specifications

REF NO	PART NO	QTY	DESCRIPTION
1	707988		BASE
2	707971		HANDLE
3	706920		BILLBOARD
—	B1797GS		CLIP
4	707448		HANDLE-LOWER
5	189332GS		PLUG, Hole
6	707446		GROMMET
7	707208		SHROUD
8	707443		MOUNT-VIBRATION
9	707449		GROMMET
10	704293		E-RING
11	707230		PUMP
12	700223		KIT, Hardware, Pump Mounting
13	708963		TANK-CHEMICAL
—	312369GS		CAP-CHEMICAL TANK
—	709975		DECAL-WARNING
14	708807		GUN, BIT
15	705001		KIT-O-RING
16	771020		HOSE
17	706595		WAND-QC

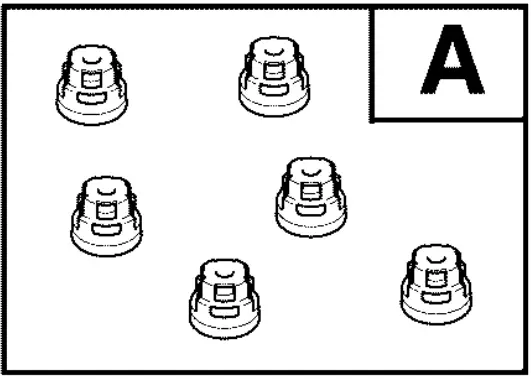

18	707182		Kit, Quick Connect Nozzles
—	709745		NOZZLE-QC, RED
—	195983AKGS		NOZZLE, QC, Yellow
—	195983VGS		NOZZLE-QC WHITE
—	198841GS		NOZZLE, QC, Black
19	707991		AXLE
20	707442		KIT, Wheel
21	705848		KIT, Hardware, Handle
900	121P02-0001-F1		ENGINE
—	23139GS		KEY-(Not Illustrated)
—	100005		OIL-4 CYCLE 30W 18OZ.-(Not Illustrated)
—	705851		DECAL-Warning Spark-(Not Illustrated)
—	705076		HOSE-CHEMICAL-(Not Illustrated)
—	705854		TAG, Warning, English-(Not Illustrated)
—	6039		PUMP Saver-(Optional Accessory – Not Illustrated)
—	6059		PERFECT MIX MULTI-PURPOSE WASH-(Optional Accessory – Not Illustrated)
—	6160		Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner-(Optional Accessory – Not Illustrated)

Pump
Note: Unless noted otherwise, use the standard torque specifications

REF NO	PART NO	QTY	DESCRIPTION
33	204087GS		SCREW
36	B2384GS		FILTER, Garden Hose
56	208673GS		VALVE, Thermal Relief
68	707377		FITTING
A	317897GS		* KIT, Check Valve-(Refer to Footnote *)
B	204084GS		* KIT, Water Seals-(Refer to Footnote *)
C	707342		* KIT-O-RING-(Refer to Footnote *)
D	706610		* KIT, Unloader-(Refer to Footnote *)
E	317787GS		KIT, Chemical Injector-(Refer to Footnote )
F	317788GS		KIT, Easy Start-(Refer to Footnote )
G	200350GS		* KIT, Grub Screw & Washer-(Refer to Footnote *)
H	201497GS		* FITTING-(Refer to Footnote *)
J	201496GS		* KIT, Water Inlet-(Refer to Footnote *)
K	706780		* KIT-PLUG-(Refer to Footnote *)
—	6039		PUMP Saver-(Optional Accessory – Not Included)
—	6059		PERFECT MIX MULTI-PURPOSE WASH
—	6160		Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner

Hardware Identification & Torque Specifications

Property Class		Class 5.6			Class8.8		Class10.9			Class12.9
Size Of	inrfibs			infibs			infibs		in/lbs
Hardware	ft/lbs		Nm.	ft/lbs		Nm.	ft/lbs	Nm.	ft/lbs		Nm.
M3	5.88		.56	13.44		1.28	19.2	1.80	22.92		2.15
M4	13.44		1.28	30.72		290	43.44	4.10	52.56		4.95
M5	26.4		250	60.96		5.75	5.97	8.10	7.15		9.7
M6	4464		43	7.3		9.9	10.3	14	12.1		16.5
M7	5.2		71	12.1		16.5	16.9	23	19.9		27
M8	7.7		10.5	17.7		24	25	34	29		40
M10	15		21	35		48	50	67	59		81
M12	26		36	61		83	86.2	117	103		140
M14	42		58	101		132	136	185	162		220
M16	64		88	147		200	210	285	250		340
M18	89		121	202		275	287	390	346		470
M20	126		171	290		390	405	550	486		660
M22	169		230	390		530	559	745	656		890
M24	217		295	497		375	708	960	840		1140
M27	320		435	733		995	1032	1400	1239		1680
M30	435		590	995		1350	1401	1900	1681		2280
M33	590		800	1349		1830	1902	2580	2278		3090
M36	759		1030	1740		2360	2441	3310	2935		3980
M39	988		1340	2249		3050	3163	4290	3798		5150

he guides and ruler furnished below are designed to help you select the appropriate hardware.

Standard Hardware Sizing

When a washer or nut is identified as 1/2” (M8), this is the Nominal size, meaning the inside diameter is 1/2 inch (8mm metric thread diameter); if a second number is present it represents the threads per inch (distance between threads).

When bolt or capscrew is identified as 1/2 – 16 x 2” (M8 – 1.25 x 50), this means the Nominal size, or body diameter is 1/2 inch (8mm metric thread diameter), the second number,16, represents the threads per inch, (distance between threads). The final number is the body length of the bolt or screw, 2 inches (50mm)

Hardware Grade	SAE Grade 2		SAE Grade 5C⁾		SAE Grade 4
Size 01 Hardware	infibs MOs	Nm.	iMbs Nibs	Nm.	infibs ft/lbs	Nm.
8-32	19	2.1	30	3.4	41	4.6
8-36	20	2.3	31	3.5	43	4.9
10-24	27	3.1	43	4.9	60	6.8
10-32	31	3.5	49	5.5	68	7.7
1/4-20	66	7.6	8	10.9	12	163
1/4-28	76	8.6	10	13.6	14	19.0
5/16-18	11	15.0	17	23.1	25	34.0
5/16-24	12	16.3	19	25.8	29	34.0
3/8-16	20	27.2	30	40.8	45	612
3/8-24	23	31.3	35	47.6	50	68.0
7/16-14	30	40.8	50	68.0	70	95.2
7/16-20	35	47.6	55	74.8	80	108.8
1/2-13	50	68.0	75	102.0	110	149.6
1/2-20	55	74.8	90	122.4	120	163.2
9/16-12	65	88.4	110	149.6	150	204.0
9/16-18	75	102.0	120	163.2	170	231.2
5/8-11	90	122.4	150	204.0	220	299.2
5/8-18	100	136	180	244.8	240	326.4
314-10	160	217.6	260	353.6	386	525.0
3/4-16	180	244.8	300	408.0	420	5712
7/8-9	140	190.4	400	544.0	600	816.0
7/8-14	155	210.8	440	598.4	660	897.6
1-8	220	299.2	580	788.8	900	1,244.0
1-12	240	326.4	640	870.4	1,000	1,360.0

NOTES

These torque values are to be used for all hardware excluding: locknuts, self-tapping screws, thread forming screws, sheet metal screws and socket head setscrews.
Recommended seating torque values for locknuts:
a. for prevailing torque locknuts – use 65% of grade 5 torques.
b. for flange whizlock nuts and screws – use 135% of grade 5 torques.
Unless otherwise noted on assembly drawings, all torque values must meet this specification.

Common Hardware Types

Hex Head Capscrew

Carriage Bolt
