Omic Ultracompact 2.4GHz Dual-Channel Wireless Microphone System
BOYA
Ultracompact 2.4GHz Dual-Channel Wireless
Microphone System 2.4GHz
Omic
Instruction Manual
Statement
Please read this manual carefully before using and strictly operate and store it in accordance with the instructions. Please save the manual for your future reference. If you need further assistance than the user manual, please consult your retailer for help or email us: [email protected]
Cautions
- Non-professional teardown is strictly prohibited.
- Please keep it away from heat sources such as radiators or spotlights.
- Do not remove the battery without professionals’ help.
- Please clean the device with only a soft, dry cloth.
- When using and storing, please keep away from the dust and moisture.
- For the best pick-up pattern, do not hold your hand against the microphone capsule cover.
General Introduction
The BOYA Omic is an ultra-compact and portable 2.4GHz wireless microphone system, compatible with computers, Android mobile devices and more. It features automatic pairing and selectable noise cancellation, delivering broadcast-quality sound with remarkable ease of use. The Omic is ideal for content creation, live streaming, vlogging, mobile journalism and much more.
The USB-C receiver are device powered and have
USB-C charging ports, which support charging and powering of devices while in use.
The included charging case allows you to charge the transmitter(s) anywhere, making the Omic kit easy to carry on.
Features
- Also available in 48kHz HD audio when noise cancellation enabled
- Wide-range 20-20,000Hz frequency response – deliver exceptional high-quality sound
- In-built rechargeable lithium-ion battery provides 5+ hours of recording
- USB-C digital output – universal compatibility with computers and Android mobile devices
- Up to 60m wireless operating range
- Magnetic belt clip is detachable
- The charging case features wireless charging
Product Structure

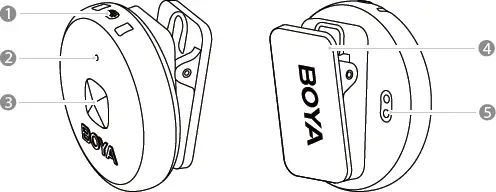

Wireless Transmitter (Omic TX)
① In-built microphone
② Status indicator
|
Status |
Indicator |
|
Unpaired |
Blinking blue quickly |
|
Paired successfully |
Static blue |
|
Mute |
Pulsing red |
|
Noise cancellation enabled |
Static green |
|
Low battery |
Static red |
|
Charging |
Blinking red |
|
Fully charged |
Red light off |
③ Power button
- Press and hold to power on or off.
- Press to mute or unmute the microphone.
- Press twice to enable or disable noise cancellation.
④ Detachable magnetic belt clip ⑤ Charging contacts
USB-C Receiver (Omic RXU)
① USB-C connector
It can be connected to Android Smartphones, Tablets, Computers and other USB-C devices.
② USB-C charging port
When the Omic RXU is plugged into an external device, the external device can be powered via this charging port.
NOTE: Most USB-C devices can be powered and charged through this port while in use.

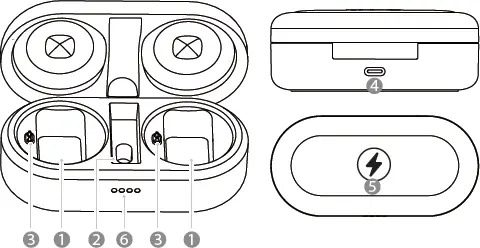

Charging Case (Omic CC)
① Slot for transmitter(s)
② Slot for receiver
③ Charging contacts
④ USB-C charging port
⑤ Wireless charging sector
⑥ Charging indicator
|
Status |
Battery Level |
Indicator |
|
Low battery |
＜ 10% |
|
|
Charging |
≤ 25% |
|
|
26≤50% |
|
|
|
51≤75% |
|
|
|
76≤99% |
|
|
|
Fully charged |
100% |
|
How to use
1. The transmitter(s) will be turned on automatically as soon as it is taken out of the charging case.
2. Plug the Omic RXU into a USB-C device.
3. Transmitter(s) and receiver will be automatically paired. The indicator of the transmitter(s) is static blue.
4. Launch a video or audio recording app.
5. Select external microphone, if applicable (app dependent).
6. You are ready to record
Tips:
1. It is recommended to record a sample and play it back to check if the audio level is acceptable before recording.
2. In order to improve the recording effect in a noisy environment, it is recommended that press the power button on the transmitter(s) twice at the same time to enable noise Cancellation.
3. After recording, put the transmitter(s) back into the case for charging.
Note:
Due to 2.4GHz wireless frequency, signal can be easily attenuated. Please try to avoid obstacles, such as walls and buildings, and avoid close proximity to devices with 2.4GHz signal, such as high-power Wi-Fi antennas, radios, etc.
Troubleshooting
If you encounter problems when using the unit, please refer to the following checklist before contacting technical support. If the problem cannot be solved, please contact the dealer’s after-sales service department.
If there is no sound from the unit or no sound when connected to an external device
① Make sure the connector on the receiver is well connected to your device.
② Make sure the transmitter(s) is not muted.
Current noise or other abnormal noise appears during monitoring Make sure there is no interference near the unit. If the noise still exists after changing the unit’s position, please contact our customer service.
The operating range of the unit is limited and the sound is frequently intermittent Make sure there is no interference between the transmitter(s) and receiver. If the intermittent sound still occurs frequently, please contact our customer service.
Failed to charge the transmitter(s) via the charging case
① Make sure the charging contacts of both are in full contact. Wipe the charging contacts with a clean cloth and try again.
② If you want to check whether the magnetic force is aging or whether the charging contacts of the two are not in sufficient contact, press the transmitter(s) placed in the charging box to check whether it is in a charging state. If the transmitter(s) is still failed to be charged, please contact our customer service.
Specifications
Omic TX Transmitter
|
Transmission Type |
2.4GHz digital frequency |
|
Modulation |
GFSK |
|
Polar Pattern |
Omnidirectional |
|
Antenna |
Ceramic antenna |
|
Operating Range (Without Obstacle) |
Up to 50m |
|
Distortion |
≤0.1% |
|
Frequency Response |
20Hz-20kHz |
|
Sampling Rate |
48kHz |
|
Bit Rate |
16bit |
|
Signal-to-Noise Ratio |
≥80dB |
|
Audio Input |
In-built microphone capsule |
|
Battery Capacity |
50mAh |
|
Power Requirements |
In-built lithium-ion battery/Charging contacts |
|
In-built Battery Life |
Approx. 5 hours |
|
Charging Time |
Approx. 2 hours |
|
Weight |
15.5g |
|
Dimensions |
36×36×9.7mm |
|
Operating Temperature |
0°C to +50°C |
|
Storage Temperature |
-10°C to +50°C |
Omic RXD/RXU Receiver
|
Transmission Type |
2.4GHz digital frequency |
|
Modulation |
GFSK |
|
Polar Pattern |
Omnidirectional |
|
Antenna |
Ceramic antenna |
|
Operating Range (Without Obstacle) |
Up to 50m |
|
Distortion |
≤0.1% |
|
Frequency Response |
20Hz-20kHz |
|
Reference Audio Input Level |
-30~-42dBV (MIC input, 0dB gain) |
|
Sampling Rate |
48kHz |
|
Bit Rate |
16bit |
|
Signal-to-Noise Ratio |
≥80dB |
|
Audio Output |
USB-C digital output |
|
Power Requirements |
Powered by an external device |
|
Weight |
6g |
|
Dimensions |
35.5×18.5×10 mm |
|
Operating Temperature |
0°C to +50°C |
|
Storage Temperature |
-10°C to +50°C |
Omic CC Charging Case
|
Battery Voltage/ Capacity |
3.7V/ 300mAh |
|
Charging Time |
Approx. 3 hours |
|
Charging Connector |
USB-C port or wireless charging |
|
Times for Charging Microphone |
2 times (2*TX) |
|
Weight |
90g |
|
Dimensions |
96×46.5×37 mm |
|
Operating Temperature |
0°C to +50°C |
|
Storage Temperature |
-10°C to +50°C |
In the Box
Omic-D
2×Omic TX Transmitter
1×Omic RXD Receiver
2×Fur Windshield
1×USB-A to USB-C Cable
1×Omic CC Charging Case
1×Carrying Pouch
Omic-U
2×Omic TX Transmitter
1×Omic RXU Receiver
2×Fur Windshield
1×USB-A to USB-C Cable
1×Omic CC Charging Case
1×Carrying Pouch
SHENZHEN JIAYZ PHOTO INDUSTRIAL., LTD.
The BOYA logo is a trademark which is registered and owned
by Shenzhen Jiayz Photo Industrial., Ltd.
TEL: 400 6131096
Email: [email protected]
www.boya-mic.com / www.jiayz.com
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT NOTE:
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
