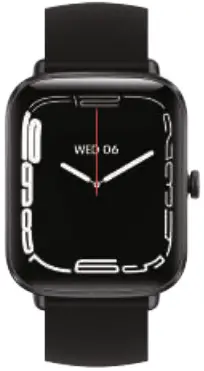

BOULT Cosmic Smartwatch A0

For better experience, suggest use IOS 9.0
Android 4.4 or above operating system.

Product Overview

BOULT Cosmic Smartwatch A1           BOULT Cosmic Smartwatch A2

  1. Power Button
  2. HD Display
  3. Strap Buckle
  4. Strap
  5. Sensor
  6. Charging Pin

In order to make the measurement more accurate, please wear the watch on the wrist bone position, wear close to the skin, but not too tight.

Touch and Buttons

BOULT Cosmic Smartwatch A3

Scroll down: Quick Settings
Swipe it up: Messages
Swipe to the Left: Functions
Swipe to the Right: Recent function
Long press: Watch Faces

BOULT Cosmic Smartwatch A4

  1. ON/OFF/RESET/REBOOT

ON: Hold down for 3 seconds until the screen lights up
OFF: Press and hold for 5 seconds, select (power off ) to turn off the watch.

If you hold down the power button for 3 seconds and fail to start the device, charge it and try again.

Mobile Phone Download

Scan the QR code in the watch to download and install the mobile App.

Download APP: For IOS phones, search for “BoultTrack” in the APP Store. For Android phones, search for “BoultTrack” in other APP stores to download and install, or scan the code to download and install

Pair and connect watch with App

View the device Bluetooth name in Settings

Open the APP on your phone, log in or register your account

Click Device – Add Device – in the APP to start the search

Select the “Boult Cosmic” in the search result to complete pairing

  • Before pairing, keep the power of the watch higher than 20% otherwise, the pairing fails due to low power.
  • During pairing and connecting, make sure bluetooth is on and the phone is within an effective connection distance from the watch.
  • The device requires android 4.4 or higher, IOS 9.0 or higher.
Watch Charging

Attach the magnetic charging wire to the metal contact of the charging port until the charging indication appears on the watch display. When the watch is low, charge.

BOULT Cosmic Smartwatch A5          BOULT Cosmic Smartwatch A6

Before charging, keep the charging port clean and dry to avoid metal contact corrosion or other risks.

Functions

 BOULT Cosmic Smartwatch B1 Blood Oxygen
Enter the interface for blood oxygen measurement. When the Red light at the bottom is on, it will start measurement. The measurement will be completed within 30-60s and has a vibration reminder. The measurement is based on PPG technology.

BOULT Cosmic Smartwatch B2 Incoming or rejected calls can be displayed

BOULT Cosmic Smartwatch B3 Music
When connected to the phone, you can control the music on the phone, You can play the previous song or the next song.

BOULT Cosmic Smartwatch B4 Weather
After you connect your watch with the APP and open the location permission, the weather interface will display the real-time temperature and weather type

BOULT Cosmic Smartwatch B5Alarm clock
keep the watch connected to the APP, you can set a single alarm clock or a cyclic alarm clock. You can set up to 5 alarm clocks

BOULT Cosmic Smartwatch B6Timer
As for the timer function, the user may start quick timing through the system preset time or click the userde ned button to set the time. Click the start button for the timing of the start. Click the pause button to timing the pause. Click the reset button to time to zero.

BOULT Cosmic Smartwatch B7Stop Watch
Click the Start button for the timing of the start. Click the pause button to timing the pause. Click the reset button to time to zero. It can save up to 99 pieces of data

BOULT Cosmic Smartwatch B8 Notification
Open information push on the App and the watch can receive the corresponding message. It can save up to the last 15 pieces of messages

BOULT Cosmic Smartwatch B9 Find my phone
Keep the watch connected to the APP, and click “Find my phone” The bell rings on your mobile phone and the watch shows that you have successfully found your mobile phone, If the watch is not connected to the APP, the watch will indicate that it is not connected

BOULT Cosmic Smartwatch B10Change Watch Face
Long press for 2s on the home screen to enter the dial switch interface. Slide right and left to switch the dial for selection and click to select the dial

BOULT Cosmic Smartwatch B11 Quick Settings
Function Overview: Do not Disturb (DND), Brightness adjustment, system information, wrist wake icon, control panel, Settings

  • The Function can be accessed by sliding
    Down on the home screen

BOULT Cosmic Smartwatch B12Activity Data
It displays the step number, distance and calories on the same day. You can set a goal on the App, including step number distance and calories

BOULT Cosmic Smartwatch B13 Workout
Options for sport patterns: walking, running cycling, mountain climbing, swimming, yoga round belly machine and basketball, etc. Click on the icon to start sport

BOULT Cosmic Smartwatch B14 Workout Record
The interface saves the recent 10 pieces of historical sport records. You can view the sport duration, heart rate and calories during the sport

BOULT Cosmic Smartwatch B15Heart rate
Enter the interface for heart rate measurement when the green light at the bottom is on it will start measurement. The measurement will be completed within 40s and has a vibration reminder. If prompted for “no wearing the watch”, wear the watch again

BOULT Cosmic Smartwatch B16 Sleep
The interface displays the monitoring result of your sleep on the same day. The data is updated every day. connect it to the APP and you can upload and save the data synchronously. The device will recalculate the data information for the new day

BOULT Cosmic Smartwatch B17 Blood pressure
Enter the interface for blood pressure measurement. When the green light at the bottom is on, it will start measurement. The mesurement will be completed within 30-60s and has a vibration reminder. The measurement is based on PPG technology

BOULT Cosmic Smartwatch B18 Settings
The Settings include screen display (brightness adjustment, wrist ipping Display duration), language, vibration intensity, menu style, QR code and system Settings.

BOULT Cosmic Smartwatch B19 Drinking reminder
You can open this function through ( device >drinking reminder) on the App After it is opened, you can set the start time, end time end reminder interval

BOULT Cosmic Smartwatch B20Sedentary Reminder
You can open this function through (device >sedentary reminder) on the App After it is opened, you can set the start time, end time and the period for Do Not Disturb

Solution to Common problems

Fail to start the watch
Press the power switch for more than 3s
Maybe the battery level is too low. Please charge the battery then try again.

The bluetooth is not connected or cannot be connected

  1. The bluetooth is not connected or cannot be connected, Please restart the mobile phone bluetooth and connect again.
  2. Do not connect your mobile phone to other bluetooth device at the same time.

The measurement of heart rate/blood oxygen
1. General, it is caused by poor contact between the watch sensor and human body.

Solutions to common problems
2. Please ensure that the sensor contacts the wrist well during measurement
3. Please keep your body still and the watch attached to your wrist tightly during measurement

Sleep data is not accurate enough

  1. Sleep monitoring simulates the status fo natural sleep and getting up of human, and you should wear it as usual.
  2. If you sleep too late or you do not wear the watch until you go to sleep, there may be some error.
  3. It does not monitor the sleep data during daytime. The default time for sleep monitoring is from 9:30 in the evening to 12:00 at noon on the next day.
