Safety

• Read this instruction manual carefully.
• Observe the instructions for the base unit. Only use the accessories:
• with a hand blender MSM6… / MS6….
• for applications described in these instructions.

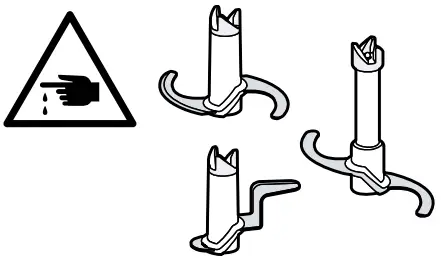

• Never touch the blade edges with bare hands.
• Care should be taken when handling sharp blades, emptying the container and during cleaning.

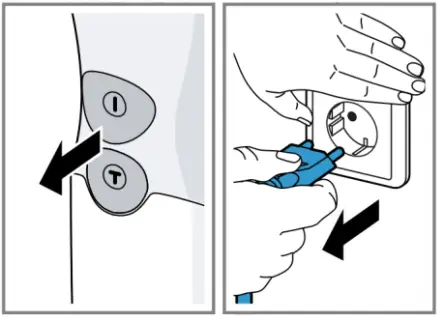

• Only attach and remove accessories once the drive has stopped and the appliance has been unplugged.
• Only use the accessories once fully assembled trial Avoiding material damage Avoiding 9 Gear attachment for the masher damage e material
• Avoiding Never immerse the gear attachments in attachment liquids and do not clean under running 10 Masher paddle (detachable) water or in the dishwasher.
• Never use the universal cutter container in the microwave or oven.
  Note: If an item is not included in the scope
• Never use the blender foot or the whisk of supply, it can be ordered from customer in the universal cutter container.

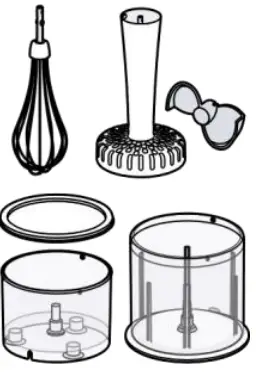

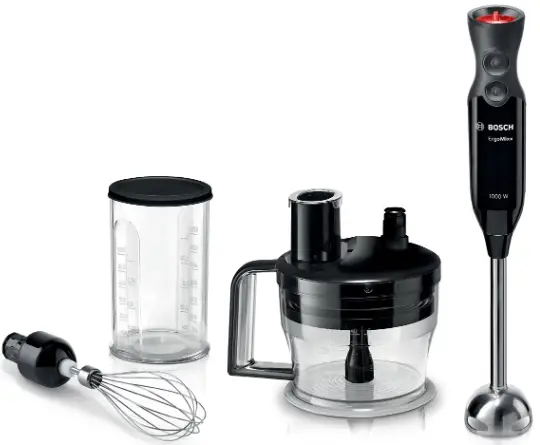

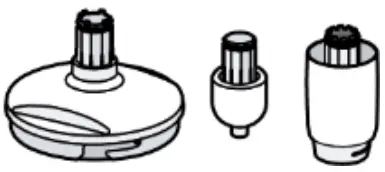

Overview

A Universal cutter L1
B Universal cutter XL1
C Whisk1
D “ProPuree” masher attachment1

1. Container L
2. Universal blade
3. Ice crusher blade1
4. Gear attachment for the universal utter
5. Lid1
6. Container XL
7. Universal blade XL
8. Gear attachment for the whisk

Universal cutter

The universal cutter is suitable for cutting up food, e.g. meat, hard cheese, onions, garlic, fruit, vegetables, herbs, nuts or almonds.

Notes

• Remove hard pieces of food before processing, e.g. gristle, bones, sinews or stones from stone fruit.
• The universal cutter is not suitable for cutting up very hard ingredients, e.g. coffee beans, nutmegs, radishes or frozen food.
• Only process ice cubes with the ice crusher blade.

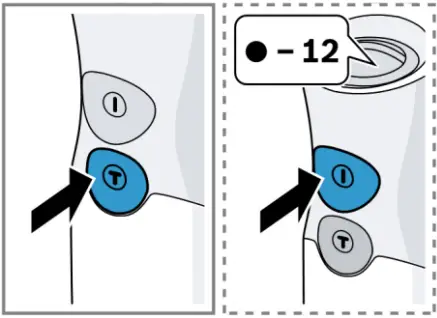

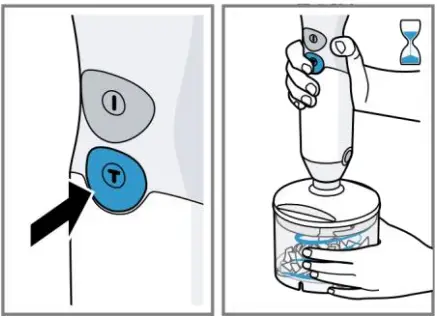

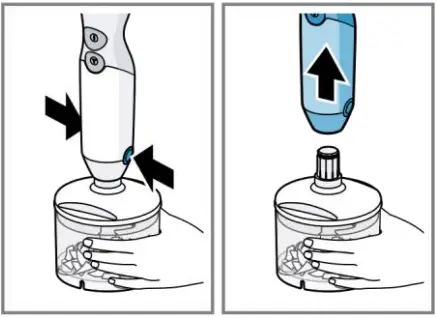

  Using the universal cutter → Fig. 2 – 11

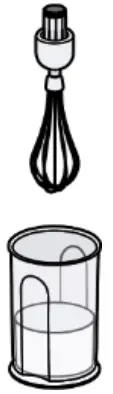

Whisk

The whisk is suitable for whipping cream, Whisk 1 Depending on the model

Recommendations for optimum results:

• Use cream with a minimum fat content of 30% and a temperature of 4-8 °C

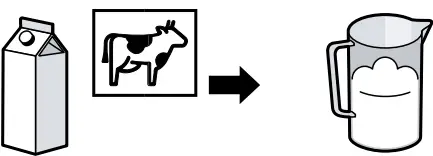

• Use milk with a high protein content and a temperature of max. 8 °C
• Whip cream or beat egg whites in a wide jug
  Note: To prevent splashing, use deep containers with the whisk.

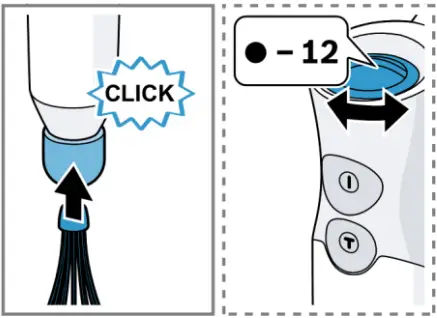

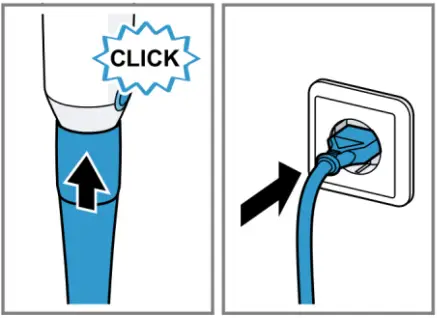

  Using the whisk → Fig. 12 – 19









ProPuree” masher attachment

The masher attachment is suitable for pre-“Pr oPure e” paring purées from boiled potatoes, peas, fruit or foods with a similar consistency.

Notes

• Do not process hard ingredients.
• Before processing the food in a pan, take the pan off the heat.
• Do not strike the masher attachment against hard edges (e.g. pots, bowls).

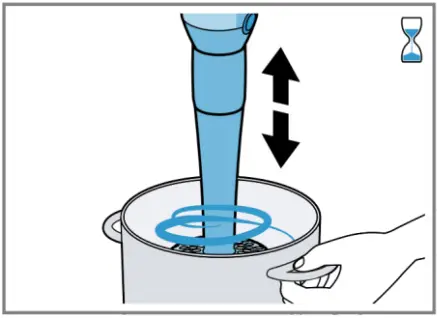

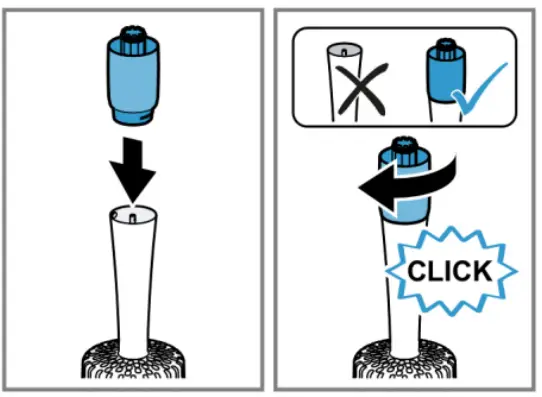

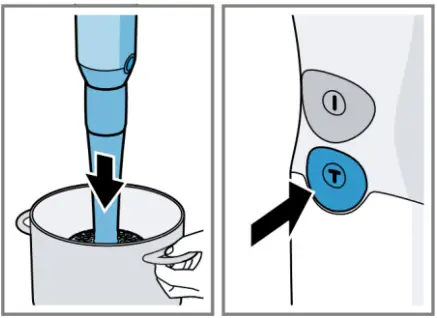

Using the masher attachment → Fig. 20 – 26

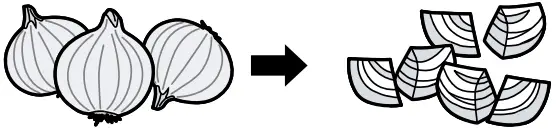

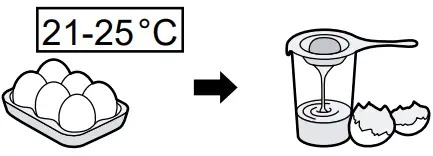

Application examples

Always observe the maximum quantities Application and processing times in the table. → Fig. 27

			50-100 g	10-20 s
			50-100 g	20-40 s
			5-20 x	3-15 s
			50-100 g	(3-8) x 1 s
			5-15 g	(7-10) x 1 s
			50-150 g	5-30 s
			150 g	7 – 10 s
				16 – 20 s
				20 – 30 s
			100 g	5 s
			100-300 g	20-180 s
			1-3 x	40-120 s
			50-150 g	60-120 s

Honey cake with apples
Honey -apple mixture → Fig. 28

CNHR24	110 g	30 g	2s
CNHR26FP CNHR32	110 g	30 g	3s
CNHR25 CNHR26 CNHR26C CNHR31 CNHR32C	130 g	30 g	2s

Cakes

• 3 eggs
• 60 g butter
• 100 g plain white flour
• 60 g ground walnuts
• 1 tsp cinnamon
• 2 tbsp vanilla sugar
• 1 tsp baking powder
• 1 apple

Preparation

• Separate the eggs and whisk the egg whites until stiff. “ProPuree” masher attachment
• Beat the egg yolk with the sugar until light and fluffy. Add the soft butter and the prepared honey -apple mixture.
• Mix the rest of the ingredients in a separate bowl, add to the moist ingredients and stir in.
• Carefully fold in the beaten egg whites with a spatula.
• Line a rectangular loaf tin (35 x 11 cm) with greaseproof paper and add the prepared cake mixture.
• Peel the apple, cut into slices and arrange on the cake.
• Preheat the oven to 180 °C and bake the cake for 30 minutes.

Overview of cleaning

cleaning of Clean the individual parts as indicated inOverview the table. → Fig. 29

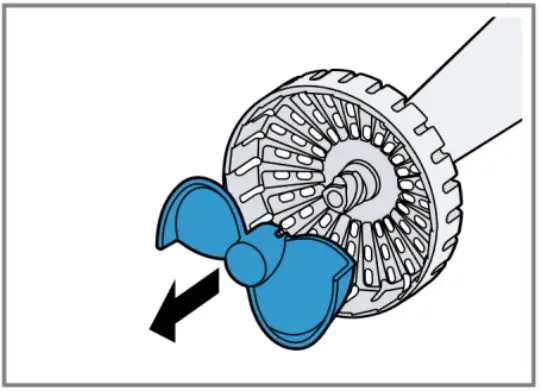

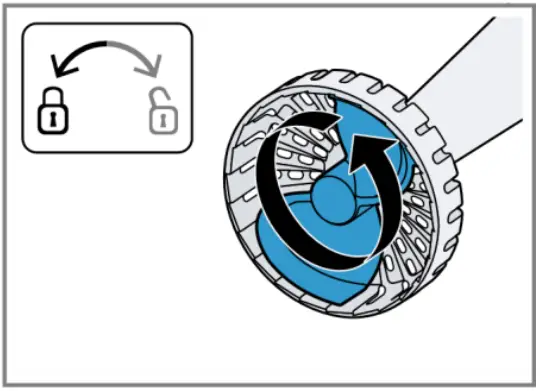

Cleaning the masher attachment Remove the masher paddle to ensure especially thorough cleaning. → Fig. 30 – 33
