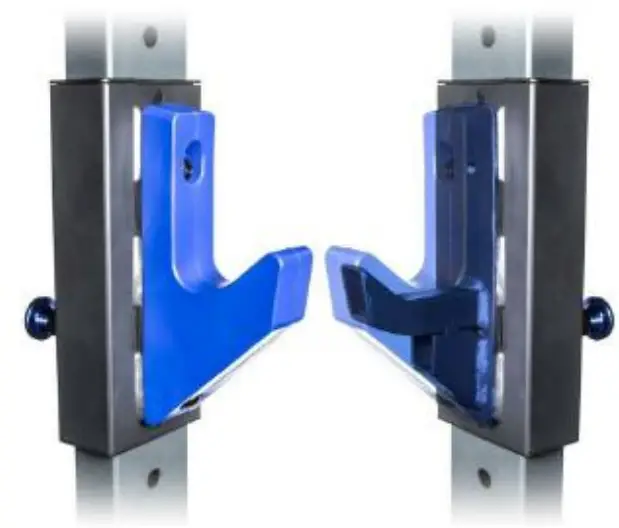

F733 Extra Bar Catch Set
for the BodyCraft F730 PRO (Power Rack)
Owner’s Manual
Contents
F733 Extra Bar Catch Set
https://www.bodycraft.com/F733-qr.html
Base Lot Number: _ _ _ _ _ _ _ _ _ _ _ _ _
Purchased Date: ___ / ___ / ______
Dealer’s Name:__________________________
Please register your products at: https://www.bodycraft.com/product-registration/
BODYCRFT
lot Code :F733-YYMM DD

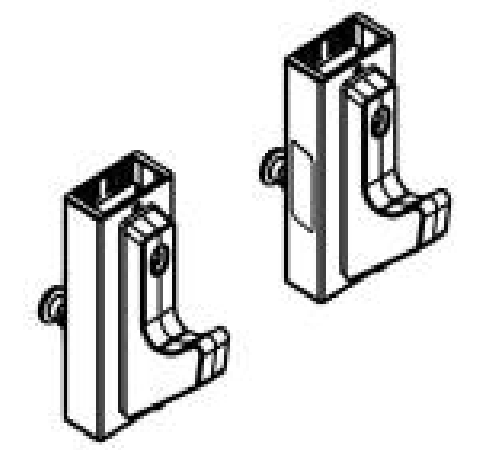

Assembled Parts List
| Part # | Assembly Parts List | QTY |
| F733-801-R-ASM | Bar Catch, Adjustable, Right – Assembly | 1 |
| F733-801-L-ASM | Bar Catch, Adjustable, Left – Assembly | 1 |
STEP 1: Installation of the F733 Extra Bar Catch Set to an F730 PRO (Power Rack)
https://www.bodycraft.com/F730-qr.html

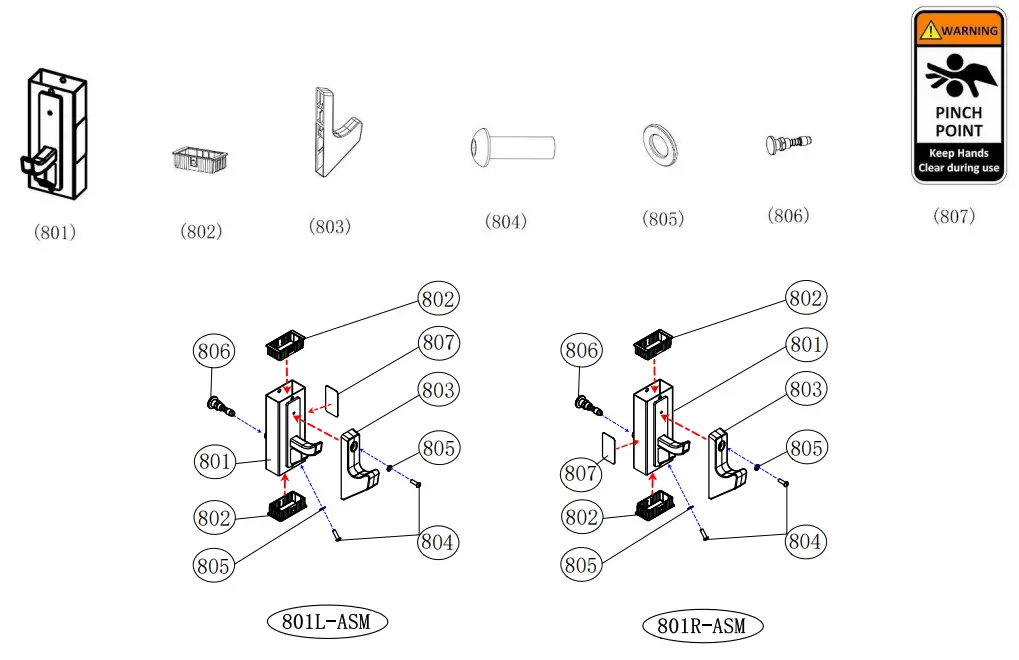

F733 – Mounting on the F730 PRO, Detailed Parts List & Parts Exploded View

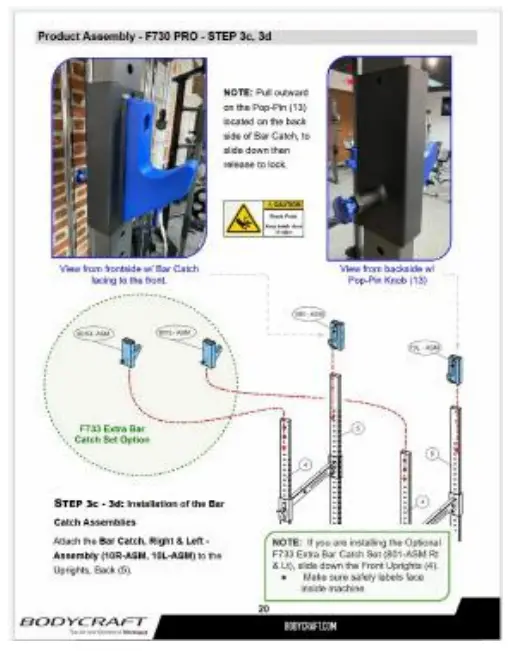

STEP 2: Installation of the F733 Option on the F730 PRO during STEP 3c-d
| Part # | Detailed Parts List | QTY |
| F733-801 | Bar Catch Adjuster | 2 |
| F733-802 | Inner Sliding Sleeve, Rectangular | 4 |
| F733-803 | Bar Catch Cover, Blue Rubber | 2 |
| F733-804 | Screw,Hex Recessed Flat Head 5/16″ x 7/8″ – BLACK | 4 |
| F733-805 | Washer, Flat 5/16″-BLACK | 4 |
| F733-806 | Pop Pin, Blue, Alum, 45mm L | 2 |
| F733-807 | Warning Label- Pinch Point, Vertical | 2 |
NOTE: Parts are not to scale
