Bluewater 9059 Series 22mm In Rush Push Button Switch
Contents
22MM ELECTRONIC SWITCHES
| Function | Parts No. | Off/1st On | 2nd /3rd | Rear Mark Page |
| Off-On | 9059-1113 | (Blue) /( Red ) |  / |
|
| Off-On | 9059-2113 | (Blue) /( Red ) | / |
|
| Nav/Anc | 9059-3114 | (Blue)-(Green ) | Red / |
|
| Off-On-On | 9059-3113 | (Blue)-(Green ) | Red / |
|
| Off-On-On-Both | 9059-3115 | (Blue)-(Green ) | Red / Yellow |
|
| Off-(On)-(0n) | 9059-2123 | (Blue)-(Green ) | Red /Yellow |
|
| BW DT Connector | 9053-3914 |  5 pin Deutsch Connector |
||
| Dummy Plug | 114017-ZZ |  for DT Connector |
||

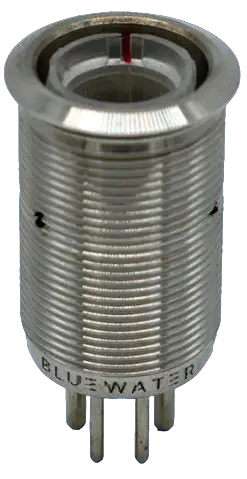

9059 SERIES
22MM INRUSH PROTECTED ELECTRONIC SWITCH WITH ULTRA BRIGHT LED MOQ: 20
Specification
| Illuminated | Blue, Red LED |
| Voltage Rating | 3VDC ~ 24 VDC |
| Max. Current | 250 mA |
| Contact resistance | 100m Ω max |
| Insulation resistance | 100m Ω min 500VDC |
| Mechanical Life | 50,000 Cycles |
| Operate Storage Temp | – 20°C ~ +55° |
| Full Journey | C 2.0mm ±0.2mm |
| Moisture Protection | IP69K |
| Contact Material | Silver Alloy |
| Operating Force | 180 ± 50gf |
| Panel Thickness | 1-6mm |
| Mounting Nut Torque | 5-14Nm |
THE 9059-2118 SIGNAL SWITCH IS USED FOR COMMAND SIGNAL FOR NETWORK CONTROL VIA NMEA 2000, J1939, OR CANBUS.
9059-2118
22MM ELECTRONIC SIGNAL SWITCH WITH ULTRA BRIGHT LED MOQ: 20
