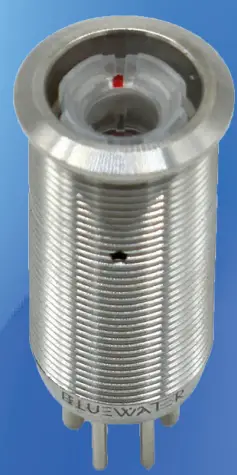

Bluewater 9057 Series 19mm In Rush Push Button Switch
Contents
19MM ELECTRONIC SWITCHES
| Function | Parts No. | LED Color | Rear Mark Page | ||
| Off | 1st On | 2nd On | |||
| Off-On | 9057-1113 | (Blue) | Red | X |
|
| 9057-1123 | (Green) | Blue | X | ||
| Off-(On ) | 9057-2113 | (Blue) | Red | X |
|
| 9057-2133 | (Green) | Blue | X | ||
| Off-(On )- (On ) | 9057-2123 | (Blue) | Green | Red |
|
| 9057-2223 | (Green) | Blue | Red | ||
| Off-On-On | 9057-3113 | (Blue) | Green | Red |
|
| 9057-3123 | (Green) | Blue | Red | ||
| Nav/Anc | 9057-3114 | (Blue) | Green | Red |
|
| Dimmer | 9057-3116 | (Blue) | Red | X |
|
Green dot
Blue dot
White dot
Black dot9057 SERIES
19MM ELECTRONIC SWITCH MOQ:32
Specification
| Illuminated | Blue, Red LED |
| Voltage Rating | 12VDC ~ 24 VDC |
| Max. Current | 2A |
| Contact resistance | 100m Ω max |
| Insulation resistance | 100m Ω min 500VDC |
| Mechanical Life | 50,000 Cycles |
| Operate Storage Temp | – 20°C ~ +55°C |
| Full Journey | 2.0mm ± 0.2mm |
| Moisture Protection | IP69K |
| Contact Material | Silver Alloy |
| Operating Force | 180 ± 50gf |
| Panel Thickness | 1-6mm |
| Mounting Nut Torque | 5-14Nm |
9057-1173
19MM ELECTRONIC GROUND SWITCH LATCHING ON/OFF MOQ: 32
