Quick Installation Guide
Contents
14 Foot Basic 6 HVLS Ceiling Fan
READ AND SAVE THESE INSTRUCTIONS
Operating Instructions and Maintenance:
https://www.bigassfans.com/support/
UPPER MOUNT

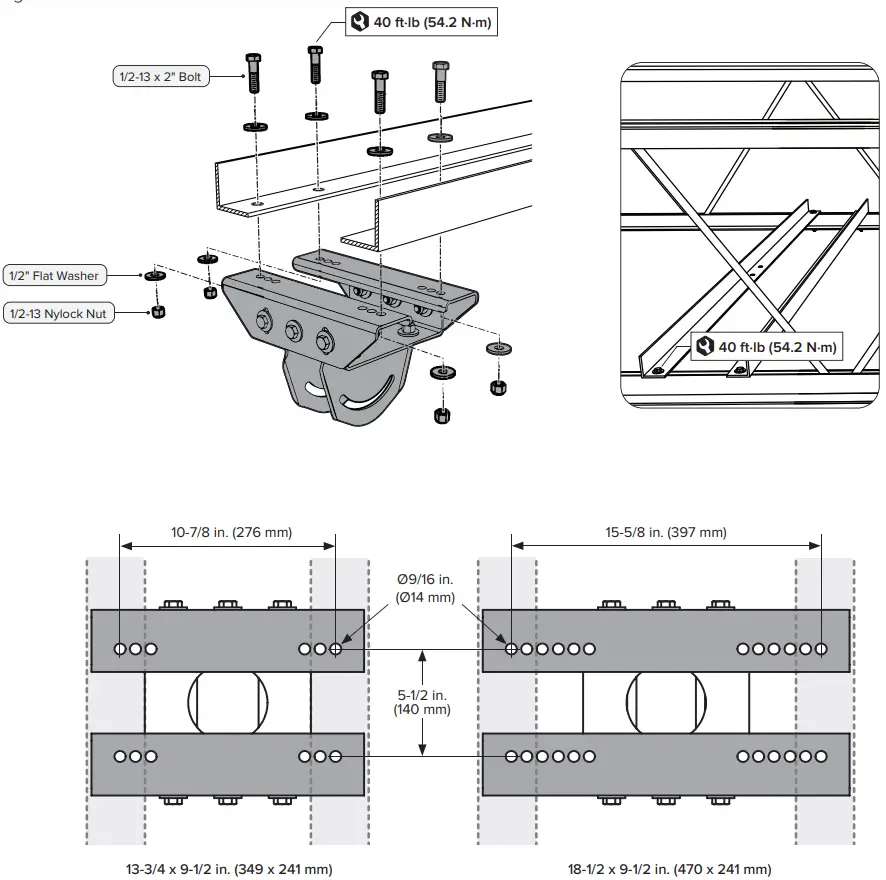

Bar Joists

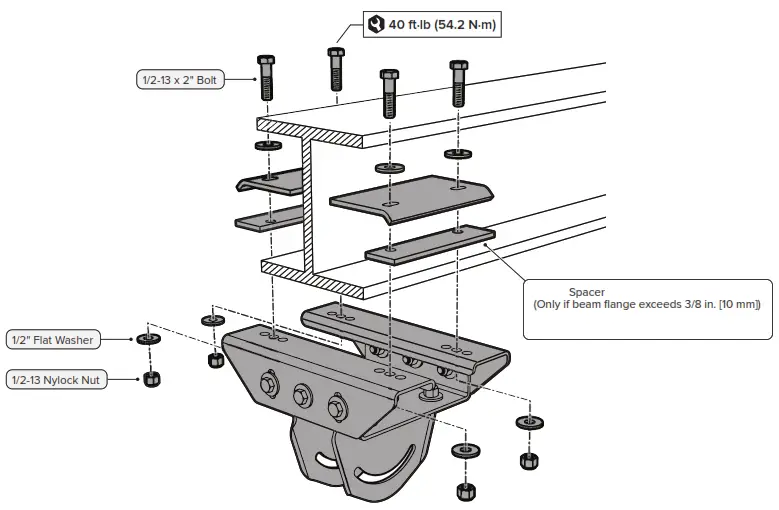

I-Beam
| Mounting Holes | I-Beam Flange Width |
| A | 5–6-5/8 in. (127–168 mm) |
| B | > 6-5/8–8-1/4 in. (> 168–210 mm) |
| C | > 8-1/4–9-7/8 in. (> 210–251 mm) |
| D | > 9-7/8–11-3/8 in. (> 251–289 mm) |
| E | > 11-3/8–13 in. (> 289–330 mm) |
| F | > 13–14-5/8 in. (> 330–371 mm) |

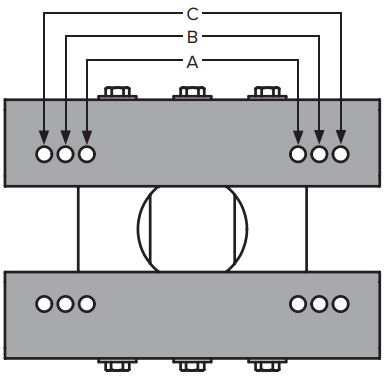

Small Mount
13-3/4 x 9-1/2 in. (349 x 241 mm)
Large Mount
18-1/2 x 9-1/2 in. (470 x 241 mm)

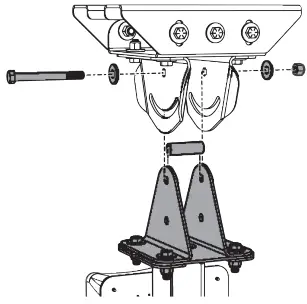

EXTENSION TUBE
Do not fully tighten hardware.

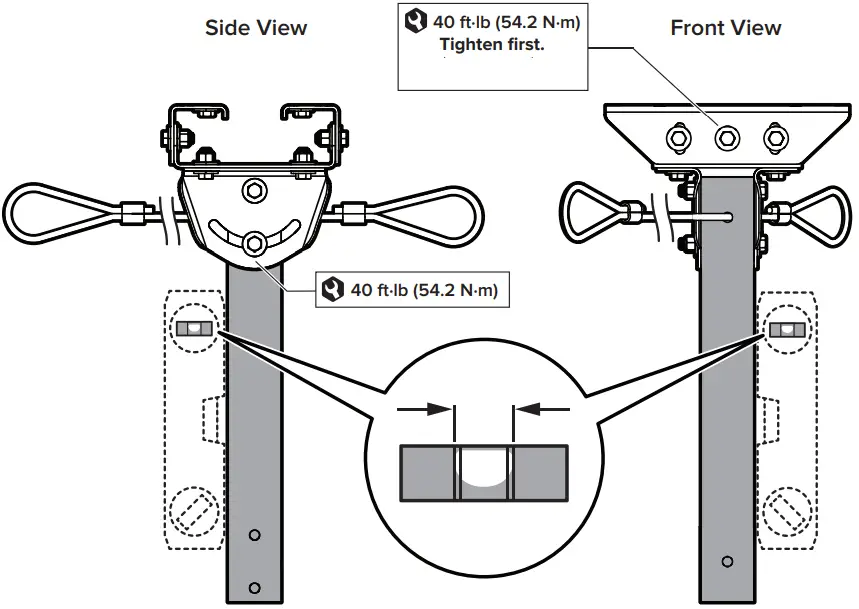

TIGHTEN HARDWARE
Allow extension tube to hang so that it is vertically and horizontally level. Make any necessary angle adjustments toupper mount. A

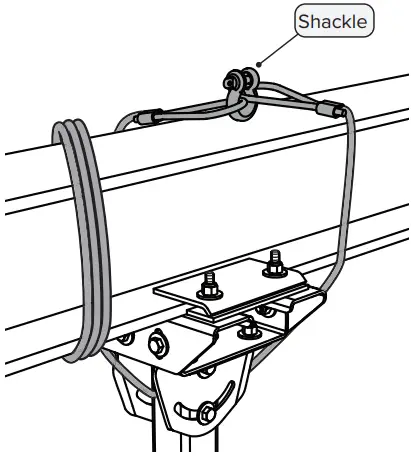

UPPER SAFETY CABLE
The cable must be drawn tightly around the mounting structure, leaving as little slack as possible.
Angle Irons
I-Beam
FAN & LOWER SAFETY CABLES
If your fan order included guy wires, install them according to the instructions included with the guy wire kit.
Low Profi le Mount
Visit big fans.com/support
Direct Mount
Visit big fans.com/support
ELECTRICAL INSTALLATION
Refer to the provided electrical installation instructions.

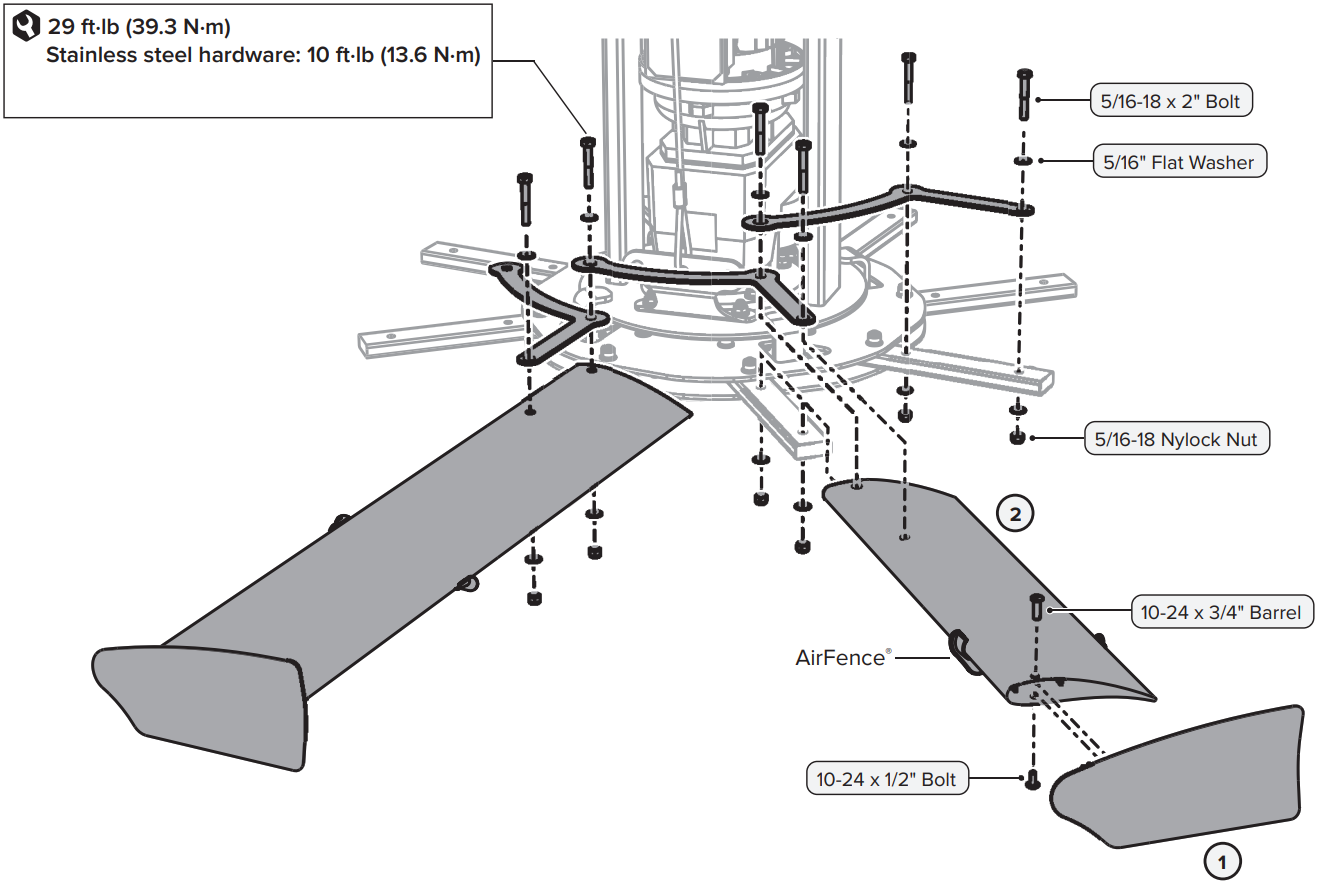

AIRFOILS
Make sure power is disconnected.
Do not fully tighten bolts until all retainers are attached. Tighten outer bolts first.

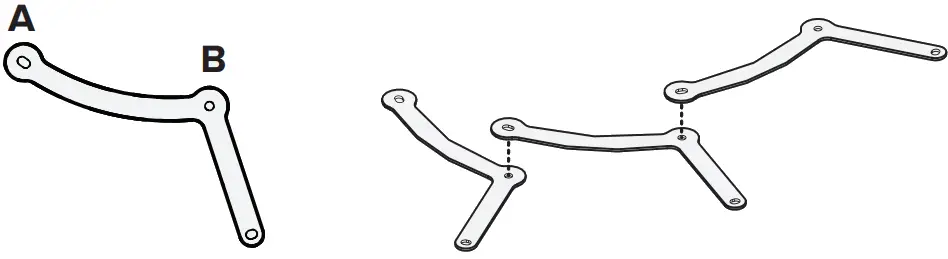

Hole A should be positioned over top of hole B.

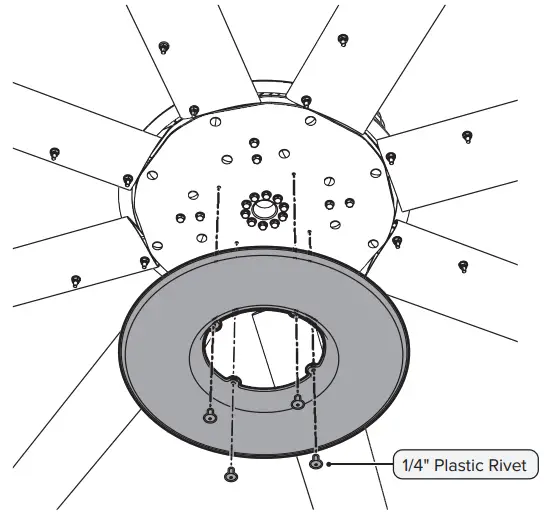

HUB COVER
May not apply to all fan models.
 |
 |
ACCESSORIES
If your fan order included an accessory, install it according to the instructions that came in the accessory box.
Supported light kits (if applicable) include Dialight model HBxyMz and Meteor models WS-240, WS-130, and WS-90.
CONTROLLER
Make sure the controller wiring or cable is routed from the fan’s VFD to the controller installation location. Refer to the instructions that came in the controller box for controller installation details.
NOTES
………
Conforms to UL 507: Electric Fans
Certified to CSA C22.2 No. 113: Fans & Ventilators
IND-INST-244-MUL-02 REV G 03/30/2022
© 2019 DELTA T LLC
ALL RIGHTS RESERVED.
