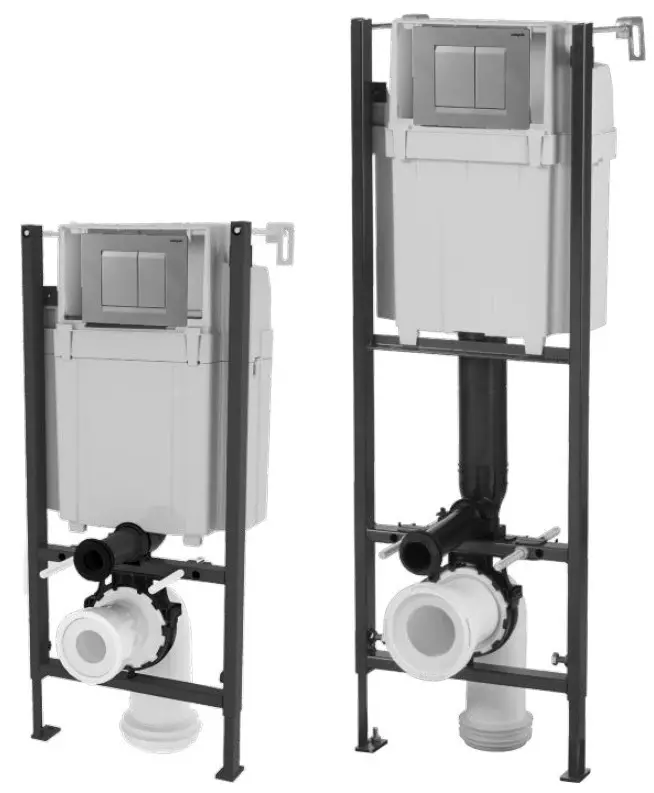

0.8M & 1M WALL HUNG WC FRAME
INSTALLATION INSTRUCTIONS
BS 1212-4 Compliant better bathrooms 290996 1M Wall Hung WC Framebetter bathrooms 290996 1M Wall Hung WC Frame - icon

IMPORTANT INFORMATION -PRIOR TO INSTALLATION OF THE WC FRAME

Read the instructions carefully.
Ensure product contents are complete.
Check the product for any signs of damage.
It is recommended that a technically competent installer undertakes installation.
It is the installer’s responsibility to carry out a thorough assessment of the installation environment (i.e. wall type/structure) and use appropriate fixings.
Care should be taken when drilling to avoid any hidden wires or pipes.
Use appropriate Personal Protective Equipment at all times when installing the product.
CLEANING
Clean push plate with warm soapy water. Do not use any bleach or detergents.

COMPONENTS

better bathrooms 290996 1M Wall Hung WC Frame - Components

Ref. Description 0.8m QTY lm QTY
A Inlet Valve 1 1
B Flush Valve 1 1
C 90° WC Pan Connector 1 1
D WC Pan Connector Bracket 1 1
F Straight WC Pan Connector 1 1
G Flushpipe 1 1
H Flushpipe Bungs 1 2
I Push Plate Clips 2 2
J Push Plate Bracket 1 1
K Push Plate Cable Connector 1 1
L Chrome Push Plate 1 1
M Wall Brackets 2 2
N Wall & Floor Plugs 4 4
0 Wall & Floor Screws 4 4
P Washers 2 2
Q Nuts 6 6
R Wall Fixing Threaded Bar 2 2
S Pan Fixing Threaded Bar 2 2
T Washers 2 2
U Nuts 6 6
V Pan Fixings Sleeve 2 2
W Pan Fixing Cover Cap 2 2
X Isolation Valve 1 1
Y Isolation Valve Fibre Washers 2 2
For use during first fix 0.8m QTY lm QTY
1 Cistern Cover 1 1
2 WC Pan Connector & Flushpipe Cover 2 2
3 Pan Fixing Threaded Bar Sleeve 2 2

better bathrooms 290996 1M Wall Hung WC Frame - icon 1 COMPONENTS – 0.8M

better bathrooms 290996 1M Wall Hung WC Frame - fig 1better bathrooms 290996 1M Wall Hung WC Frame - icon 1 COMPONENTS – 1M

better bathrooms 290996 1M Wall Hung WC Frame - fig 2

HIGHT ADJUSTMENT

better bathrooms 290996 1M Wall Hung WC Frame - fig 3

WE PAN CONNECTOR INSTALLATION

better bathrooms 290996 1M Wall Hung WC Frame - fig 4

WALL & FLOOR FIXINGS

better bathrooms 290996 1M Wall Hung WC Frame - fig 5

WATER FEED

better bathrooms 290996 1M Wall Hung WC Frame - fig 6

The water feed can be positioned either top, back or side
better bathrooms 290996 1M Wall Hung WC Frame - fig 7A filter is fitted as standard and is suitable for water pressures from 0.2 to 10 bar. Ensure the filter is fitted in the tail of the inlet valve.
better bathrooms 290996 1M Wall Hung WC Frame - fig 8

WC PAN FIXINGS

Define required wc pan centres (180mm or 230mm) by measuring the distance on the back of the pan.
better bathrooms 290996 1M Wall Hung WC Frame - fig 9WARNING
0.8m – maximum wall thickness (50mm)
Im – maxirnum wall thickness (60mm)

FRIST FIX

better bathrooms 290996 1M Wall Hung WC Frame - fig 107a FLUSHPIPE / WC PAN CONNECTOR INSTALLATIONbetter bathrooms 290996 1M Wall Hung WC Frame - fig 12

PAN INSTALLLATION

better bathrooms 290996 1M Wall Hung WC Frame - fig 13

FINAL COMISSIONING

ATTENTION

  • Allow the cistern to fill and check thoroughly for leaks around the toilet, cistern, water inlet, flush pipe and waste connections.
  • Allow the cistern to fill and check that the inlet valve shuts off an the water line indicated inside the cistern. If adjustment is needed, move the float up (clockwise) ar down [anti clockwise) by rotating the adjusting rod as required until the inlet shuts off on the water line indicated.
  • Hold the adjusting rod down to cause the cistern to internally overflow. Ensure that the overflow can discharge the incoming water. If necessary, reduce the incoming water flow by partially closing the isolation valve.

PUSH PLATE INSTALLATION

better bathrooms 290996 1M Wall Hung WC Frame - fig 14better bathrooms 290996 1M Wall Hung WC Frame - fig 15

MAINTAINANCE & TROUBLE SHOOTING:

THE INLET VALVE WILL NOT LET WATER INTO THE CISTERN:

  • Check the water supply and isolation valve are turned on
  • Make sure the inlet valve float has free movement and is not in the shut off position
  • Check the inlet valve filter for debris and rinse with clean water. The filter can be removed form the tail of the inlet valve with pliers.

THE INLET VALVE WILL NOT SHUT OFF:

  • Make sure the inlet valve float has free movement and is not jammed.
  • Check the inlet valve filter for debris and rinse with clean water. The filter can be removed form the tail of the inlet valve with pliers.

THE CISTERN IS FILLING TOO QUICKLY:

  • Ensure the filter is fitted in the tail of the inlet valve.
  • Reduce the incoming water flow by partially closing the isolation valve.

THE FLUSHING VALVE KEEPS RUNNING/ FLUSHING:

  • Ensure the route of the cable is not kinked

HELPLINE
Should you require any technical help in association with your Wirquin products, please call our customer
service number 0333 222 44 88 with your query.
WARRANTY: 10 Years
For more detail on warranty information, please visit our website: www.wirquin.co.uk

better bathrooms 290996 1M Wall Hung WC Frame - logoWirquin Ltd | Unit 3, Alpha Court
Capitol Park | Thorne | DN8 5TZ – UK
T: +44(0) 333 222 4488
Email: [email protected]
WWww.wirquin.co.uk
