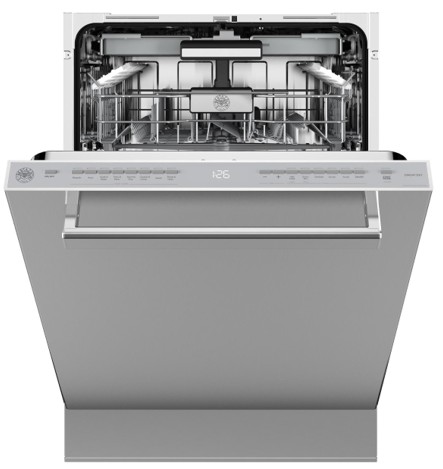

DW24T3IXT 24 Inch Built In Dishwasher
Instruction Manual
Contents

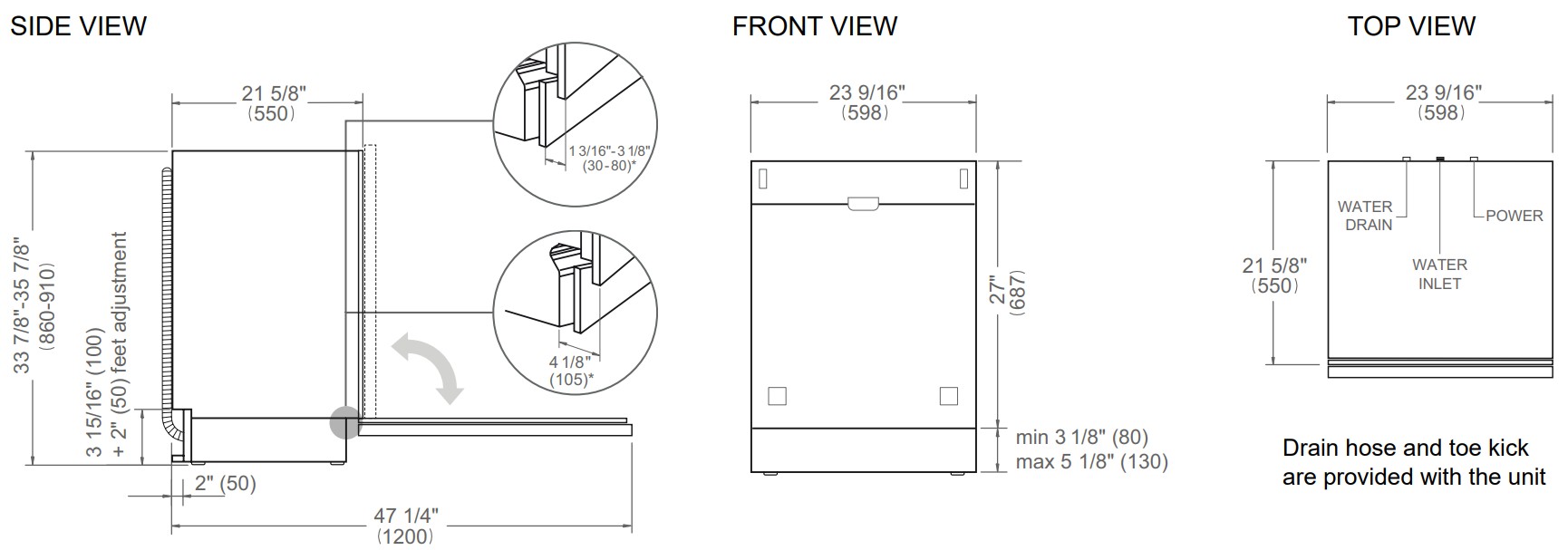

PRODUCT DIMENSIONS
* including a 3/4” (20) thick custom panel

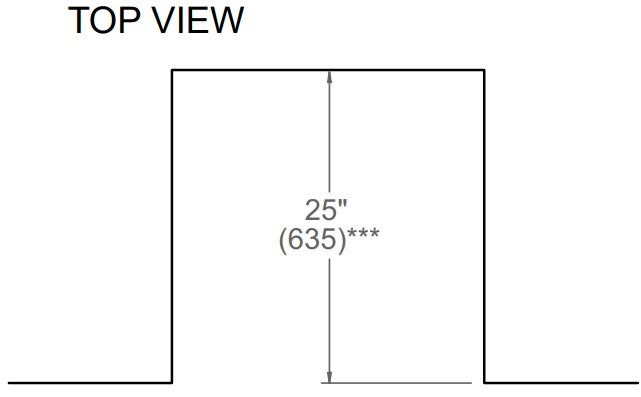

CUTOUT DIMENSIONS
* with vertical side trims installed
** without vertical side trims
*** Cabinet depth shown includes kitchen cabinet front panel. For a flush installation, a minimum inset depth of 22 1/2” (570) is required with a custom door panel thickness of 3/4” (20).
ELECTRICAL & WATER CONNECTION
E A properly-grounded, horizontally-mounted electrical receptacle should be installed according to this drawing.
W To connect the water mains to the water inlet valve thread, use a 3/8” water inlet hose and 3/4” metal adapter with a length of 60” (1524) (not supplied).
INSTALLATION REQUIREMENTS
Follow local codes & ordinances for drain requirements. Install a waste line with an air gap (not supplied) or, alternatively, at least 30” (762) high drain loop to prevent backflow. Drain hose is 74” (1880) long. Drain hose must be connected at minimum 20” (508) from the floor.
Dimensions in parentheses are millimeters unless otherwise specified.

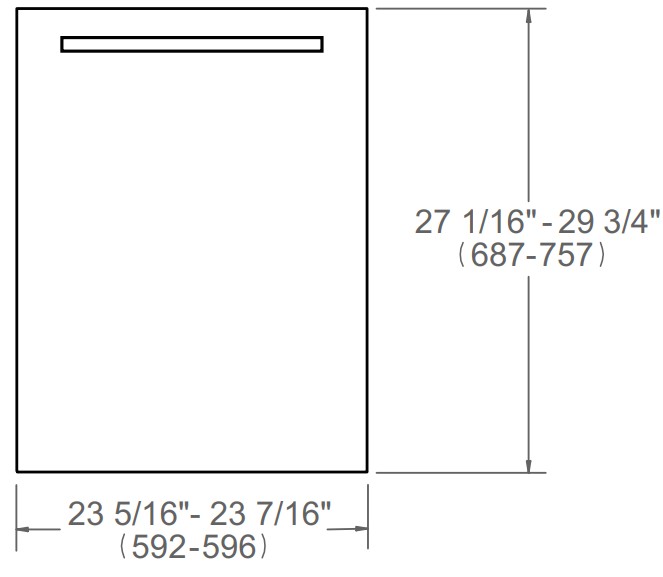

CUSTOM PANEL
Door tension can be adjusted to accommodate custom panel weights from 7 lb (3 kg) to 18 lb (8 kg). For custom panels from 18 lbs (8 kg) to 22 lbs (10 kg), it is necessary to purchase the optional Heavy Duty Springs kit HS24DW. Suggested panel thickness is 3/4” (20).
