BenQ LW550 WXGA DLP Beamer User Guide

BenQ LW550 WXGA DLP Beamer User Guide

PACKGE COUNTACT

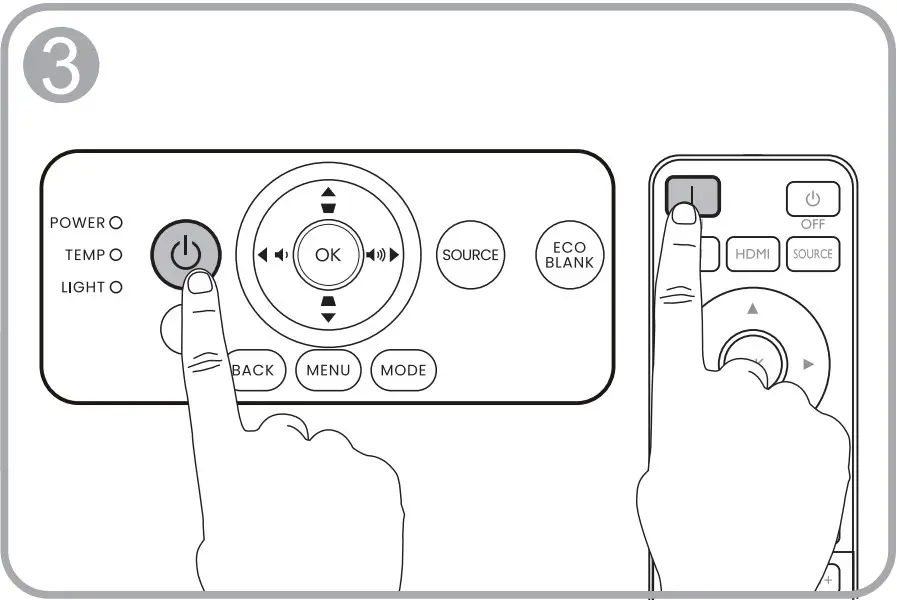

Remote control

This model does not support PC 1 Source

PROJECTION CONNECETION

Projection dimensions

The screen aspect ratio is 16:10 and the projected picture is in a 16:10 aspect ratio

Screen size				Projection distance(mm)			offsetlens position(mm)
diagonal		H(mm)	W(mm)	Min distance	Average	Max distance
Inch	mm			(max.zoom)		(Min.zoom)
30	762	404	646	1002	1050	1098	0
40	1016	538	862	1335	1400	1465	0
50	1270	673	1077	1669	1750	1831	0
60	1524	808	1292	2003	2100	2197	0
70	1778	942	1508	2337	2450	2563	0
80	2032	1077	1723	2671	2800	2929	0
90	2286	1212	1939	3005	3150	3295	0
100	2540	1346	2154	3339	3500	3662	0
110	2794	1481	2369	3672	3850	4028	0
120	3048	1615	2585	4006	4200	4394	0
130	3302	1750	2800	4340	4550	4760	0
140	3556	1885	3015	4674	4900	5126	0
150	3810	2019	3231	5008	5250	5492	0
160	4064	2154	3446	5342	5600	5859	0
170	4318	2289	3662	5676	5950	6225	0
180	4572	2423	3877	6009	6300	6591	0
190	4826	2558	4092	6343	6650	6957	0
200	5080	2692	4308	6677	7000	7323	0

• To optimize your projection quality, we suggest you do the projection within non-gray area.
• All measurements are approximate and may vary from the actual sizes.

BenQ recommends that if you intend to permanently install the projector, you should physically test the  projection size and distance using the actual projector in situ before you permanently install it, so as to make
allowance for this projector’s optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.

Projection dimensions

The screen aspect ratio is 16:9 and the projected picture is in a 16:9 aspect ratio

Screen size				Projection distance(mm)			offset lens position(mm
diagonal		H(mm)	W(mm)	Min distance	Average	Max distance
Inch	mm			(max.zoom)		(Min.zoom)
30	762	374	664	990	1039	1089	11
40	1016	498	886	1319	1386	1452	15
50	1270	623	1107	1649	1732	1815	19
60	1524	747	1328	1979	2079	2178	22
70	1778	872	1550	2309	2425	2541	26
80	2032	996	1771	2639	2772	2905	30
90	2286	1121	1992	2969	3118	3268	34
100	2540	1245	2214	3299	3465	3631	37
110	2794	1370	2435	3628	3811	3994	41
120	3048	1494	2657	3958	4158	4357	45
130	3302	1619	2878	4288	4504	4720	49
140	3556	1743	3099	4618	4850	5083	52
150	3810	1868	3321	4948	5197	5446	56
160	4064	1992	3542	5278	5543	5809	60
170	4318	2117	3763	5608	5890	6172	64
180	4572	2241	3985	5937	6236	6535	67
190	4826	2366	4206	6267	6583	6898	71
200	5080	2491	4428	6597	6929	7261	75

• To optimize your projection quality, we suggest you do the projection within non-gray area.
• All measurements are approximate and may vary from the actual sizes.

BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector’s optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.

Ceilling/Wall Mount screw: M4 (Max. Length = 25 mm; Min. Length = 20 mm) Unit: mmC

Please align the ceiling mount holes  with the Mark C screw holes on the mounting plate.

Specifications

All specifications are subject to change without notice.
Optical
Resolution
LW550: 1280 x 800 WXGA
LH550: 1920 x 1080 1080p
Display system
1-CHIP DMD
Lens
F = 2.4 ~ 2.5, f = 22 ~ 24.1 mm
Light source
LED
Electrical
Power supply
AC100–240V, 3.2 A, 50–60 Hz (Automatic)
Power consumption
250 W (Max); < 0.5 W (Standby)
Mechanical
Weight
2.6 Kg + 200 g (5.73 lbs + 0.44 lbs)
Output terminals
Speaker
10 watt x1
Audio signal output
PC audio jack x 1
Control
USB
Type-A power supply 5V /1.5 A x 1
RS-232 serial control
9 pin x 1
IR receiver x 2

Input terminals
Video signal input
SD/HDTV signal input
Digital – HDMI x 2
Environmental Requirements
Operating temperature
0°C–40°C at sea level
Operating relative humidity
10%–90% (without condensation)
Operating altitude
0–1500 m at 0°C–35°C
1501–3000 m at 0°C–30°C (with
High Altitude Mode on)
Storage temperature
-20°C–60°C at sea level
Storage humidity
10%–90% RH (without
condensation)
Storage altitude
30°C@ 0~12,200m above sea level
Transporting
Original packing or equivalent is
recommended
Repairing
Please visit below website and choose your country to find your service contact window.
https://www.benq.com/welcome

For further information, please download User Manual on official website: https://www.benq.com/
