Recycle Disassemble Instruction
(Dismantled Information)
Requirements according to ANNEX VII of DIRECTIVE 2012/19/EU on waste electrical and electronic equipment (WEEE)
Contents
Materials and components with hazardous content
LCDs may contain hazardous substances like Pb and BFRs which are covered by exemptions under the RoHS directive. However, the majority is present in the printed circuit boards assembly. In order to reduce emissions as much as possible, a complete disposal of the old appliance is required. This treatment may only be performed in authorized handling plants.
Product Name: LCD Monitor
Model No.: BL2581T,BL2581TE
Disassembly Tools
| Tool | picture |
| Philips Screwdriver for M3 Screw |  |
| Nosed Pliers |  |
| Diagonal Cutting Pliers |  |

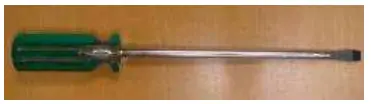

| Slotted screwdriver |  |
| Six Point Sockets |  |
| Philips Screwdriver for M2.5 Screw |  |

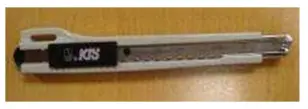

| Knife |  |

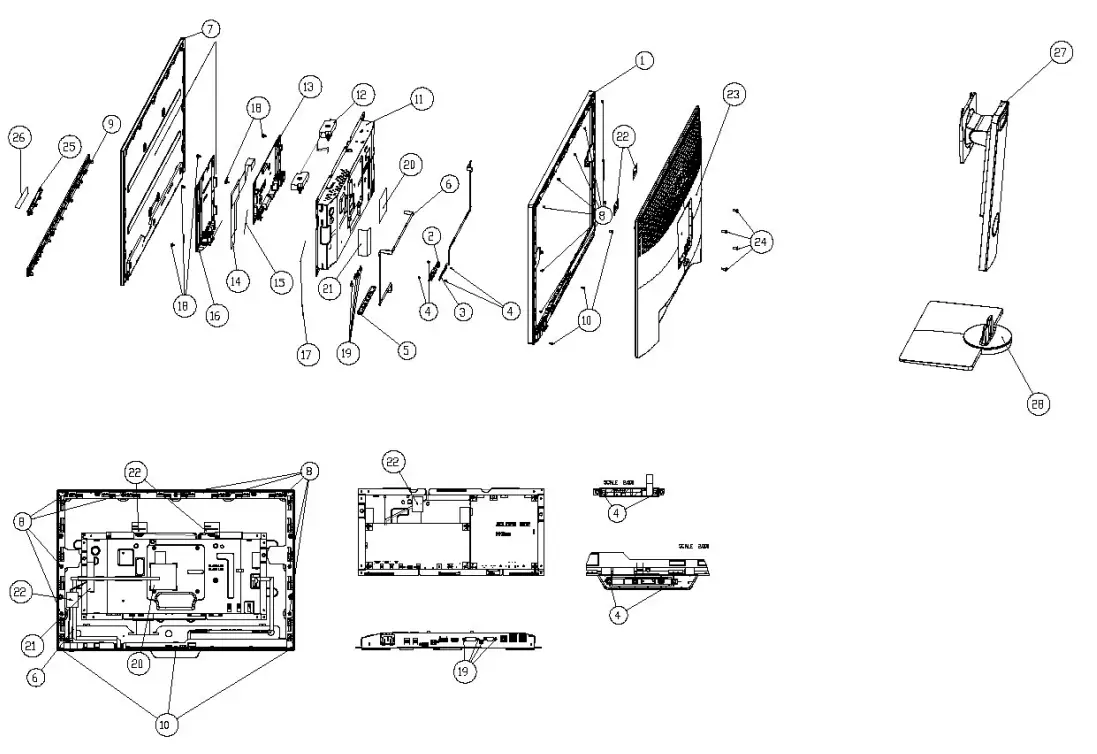

Product exploded view
| Item | Description | QV: |
| 1 | ASSN MF GA65 0667A BL251317 | 1 |
| 2 | ASSY 1401 i v• IR EIL25817 | 1 |
| 3 | MIA SettlIR BD 111 Eu581 T | 1 |
| 4 | *SCRW TP-B Fill M2*4L B-ZN | 4 |
| 5 | PCBA CTRL BD SMD 6W2780 | 1 |
| 6 | FFC 8PPI 52SMM CTRL BL25817 | 1 |
| 7 | #LCDW25 114125081-SSAI LW P | 1 |
| S | ISCRW MACH FLATM3•0.5P14.5L 7N | 9 |
| 9 | ASSY DECO GA65 MIA BL25817 | 1 |
| 10 | ItSCRW TP-P EPH M3•13(5/1,2)EZN | 3 |
| 11 12 |
/ASSY SHDBL25817 | 1 |
| SPK•2 I.5W 8C.IM 210/380MM | 1 | |
| 13 | PCB IF BD | 1 |
| 14 | FR7 INAS 30#P PI 35114M | 1 |
| 15 | %IRE 7/7P 10074126 60 MM AUDIO | 1 |
| 16 | PCB SE’S BD BL258IT | 1 |
| 17 | MIRE 918P 157I#24 60MM | 1 |
| 18 | #SCR% PH INT/TOO 13.9TP-S C-EA | 5 |
| 19 | VSCRW MACH STEEL HEX #4.40 NI | 4 |
| CONIUTIVE TAPE L65•14’60 262H | 1 | |
| 21 | MYLAR 68L L SHAPE PC MOOT | 1 |
| 22 | #TAPE ADHESIVE 35*25 BIS 765W | 1 |
| 23 | 11%”Y RC GA65 D1367A BL25817 | 1 |
| 24 | WS 31* !W11 BM 14*ICL 13-714 NYL | 4 |
| 25 | LENS PROXIMITY BL2581T | 1 |
| 26 | FUJI PROM PROX1 I.HiS 11.2581T | 1 |
| 27 | ASSY MINN 11167A 11.2581T | 1 |
| 28 | ASSN BASE 11367A BL25817 | 1 |

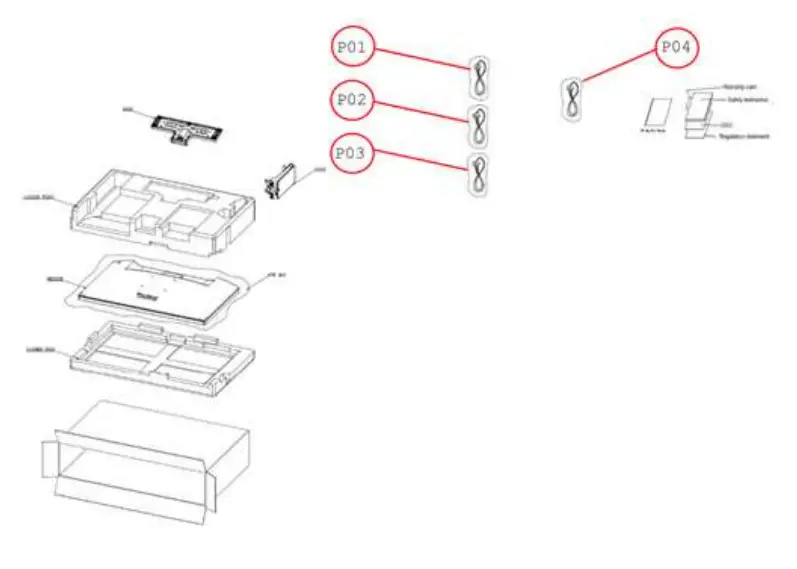

Package view
| External cable | |||
| Item | Description | Qty | Unit |
| P01 | USB cable | 1 | PCS |
| P02 | HDMI cable | 1 | PCS |
| P03 | DP cable | 1 | PCS |
| PO4 | POWER Cord | 1 | PCS |
Disassembly process
- .Remove external cable(WEEE ANNEX VII)
1.1 Remove USB cable
1.2 Remove HDMI cable
1.3 Remove DP cable
1.3 Remove Power Cord
- Remove ASSY Stand

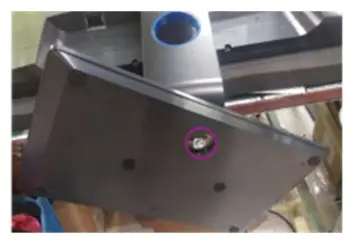

2.1 Remove base by pressing release Screw.
2.2 Remove ASSY CLMN by hand.
- Remove ASSY Rear Cover
3.1 Remove screw to release Rear Cover.
3.2 Remove Slider module from RC by Screwdriver and hand - Remove SHD and PCB.
4.1 Remove lamp wire and ctrl BD FFC & Mylar & Conductive Fabric
4.2 Remove LVDS from PANEL, and remove screw by screwdriver. - Remove MF and DECO from PANEL
5.1 Remove screw by screwdriver
5.2 Remove DECO by hand5.3 Remove Sensor Holder
5.4 Remove CTRL BD FFC and CTRL BD by hand5.4 Remove MF screw by screwdriver
Recycle characteristics
| Recycle characteristics Part | No. |
| Reuse | – |
| Recycle | 1~2,4,6,8~12,14~15,16~20,23~28 |
| WEEE annex II | 3,5,7,13,16,22, P01~04 |
| Recovery | – |
| Disposal | 21,22 |
Disassembly Time
Total time: 30 minutes
