MVLCH78719MBK Rodney 5 Light 24 Wide
Taper Candle Chandelier
Instruction Manual
Contents

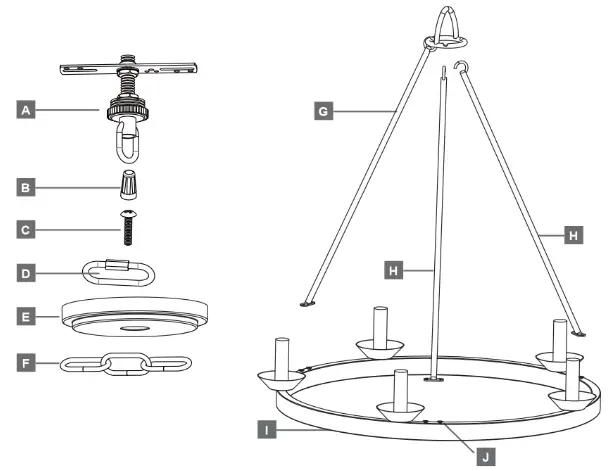

PACKAGE CONTENTS
| PART | DESCRIPTION | QUANTITY |
| A | Crossbar Assembly | 1pc |
| B | Wire Connector | 3pcs |
| C | Outlet Box Screw | 2pcs |
| D | Quick Link | 2pcs |
| E | Ceiling Canopy | 1pc |
| F | Fixture Chain | 1pc |
| G | Arm Assembly | 1pe |
| H | Arm | 2pcs |
| I | Socket Assembly | 1pc |
| J | Lock Screw (Pre-assembled to socket assembly) | 6pcs |

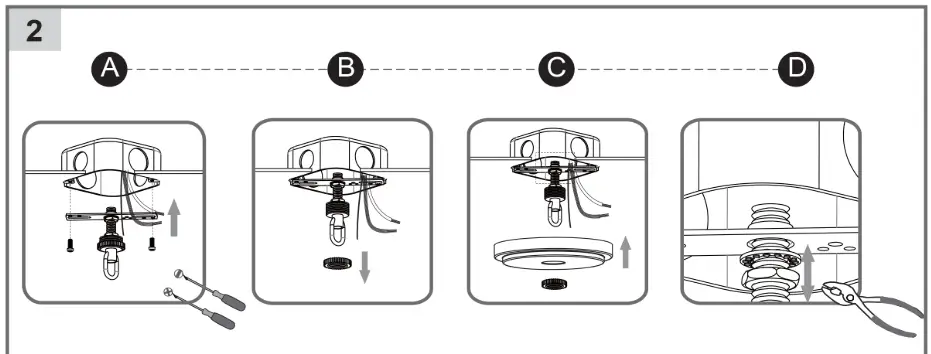

If the ceiling canopy is not snug against the ceiling, remove it rom the crossbar assembly. Adjust the length of the pre-assembled nipple by unscrewing the pre-assembled hex nut. Screw the nipple in or out of the crossbar until the correct length is achieved. Then, re-attach the ceiling canopy.
A. Adjust fixture chain length.
B. – C Install Fixture Chain
‘Suggested Chain Length:
8’ ceiling: 10″ Chain
9’ ceiling: 22″ Chain
10’ ceiling: 34″ Chain
11’ ceiling: 46” Chain
12’ ceiling: 58” Chain
A – Pull the supply wires and ground wire up through the fixture chain alternating links.
B – Push the ends of the supply wires and ground wire up through the loop and into the outlet box.
C – Remove the canopy.
D – Push The remaining slack wire into the outlet box.
Trim excess fixture wire leaving a minimum of 6 inches hanging out of the outlet box.
Separate the smooth side and ribbed side of supply wire.
Using wire strippers, strip each wire 1/2 inch from the end.
CARE AND MAINTENANCE
- Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
TROUBLESHOOTING
| PROBLEM | POSSIBLE CAUSE | CORRECTIVE ACTION |
| Bulbs will not light. | 1. Bulb is burned out. 2. Power is off. 3. Faulty wire connection. 4. Faulty switch. |
1. Replace light bulb. 2. Make sure power supply is on. 3. Check wiring. 4. Test or replace the switch. |
| Fuse blows or the circuit breaker trips when light is turned on. |
Crossed wires or power wire is grounding out. | Check wire connection. |
