BELLEVUE HMMIR93140NATWD Maggie Arched Beveled Hardwood Dresser Mirror Installation Guide

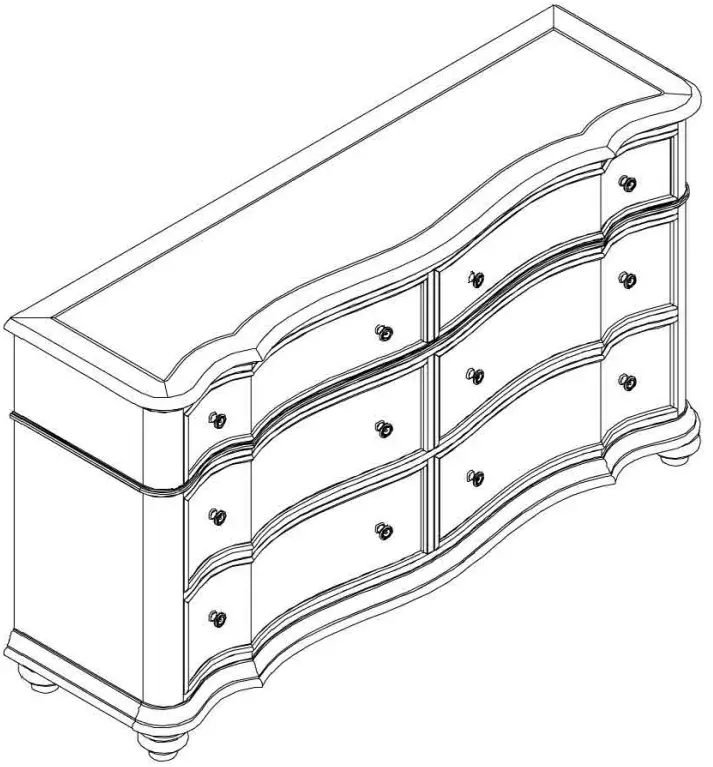

BELLEVUE HMMIR93140NATWD Maggie Arched Beveled Hardwood Dresser Mirror

PARTS LIST

DESCRIPTION Dresser Mirror

WARNING
	Children have died from furniture tipover. To reduce t he risk of furnitu re tipover : LWAYS install tipover restra int provided. NEVER put a TV on this product. NEVER allow children to stand , climb or hang on drawers, doors, or shelves. NEVER open more than one drawer ata time. Place heaviest items In the lowest drawers. This is a permanent label. Do not remove!

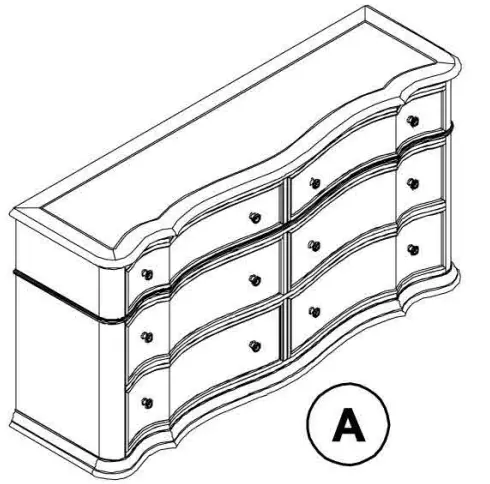

• x1 Dresser

• x2 Bun Foot(Front) *

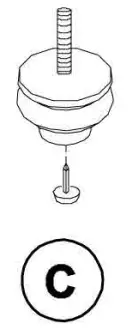

• x2 Bun Foot (Back) *

• x1 Center leg *

• x 1 Landscape Mirror

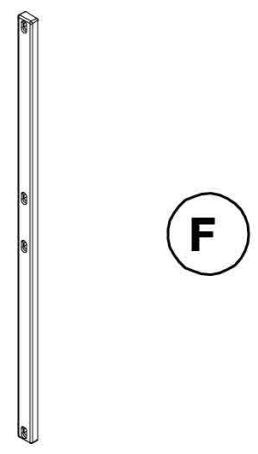

• x2 Mirror Support *

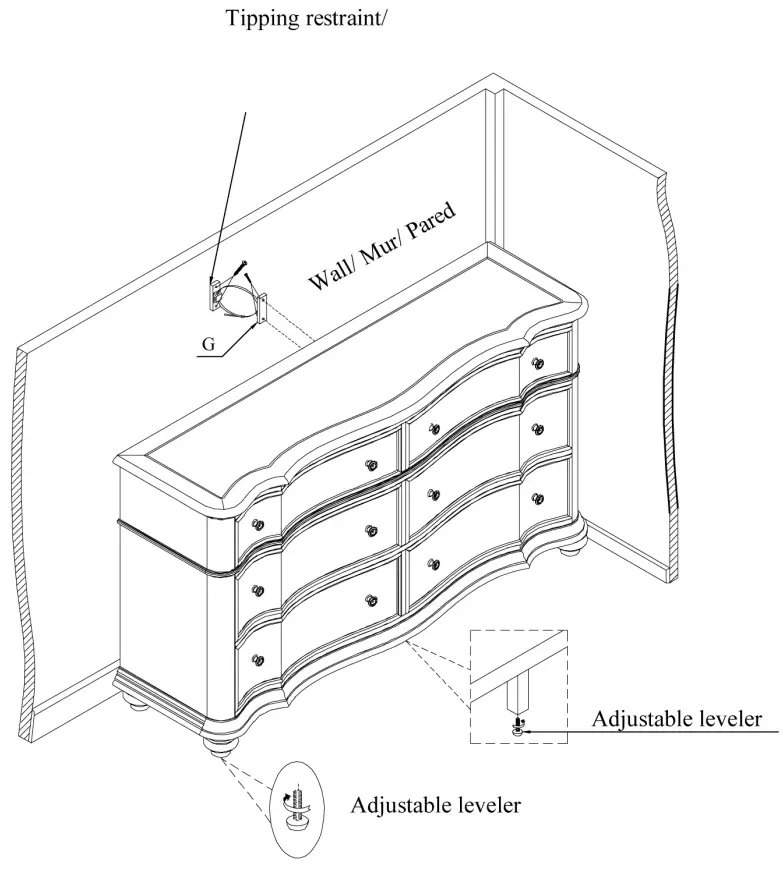

• x1 Tipping restraint *

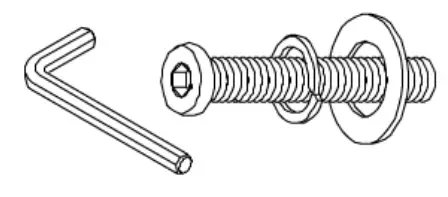

• x1 Allen Key 4mm *

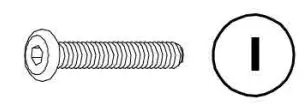

• x8 Allen bolt 01 /4″*1-l/2″ *

• x8 Lock washer 01/4″*012*3mm *

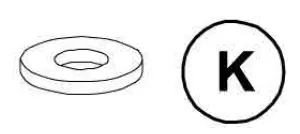

• x8 Flat Washer01/4″xl9x2mm *


*Replaceable Part

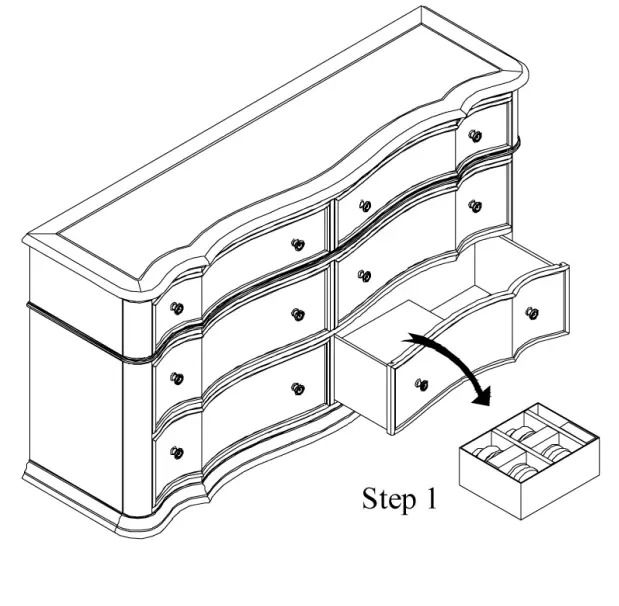

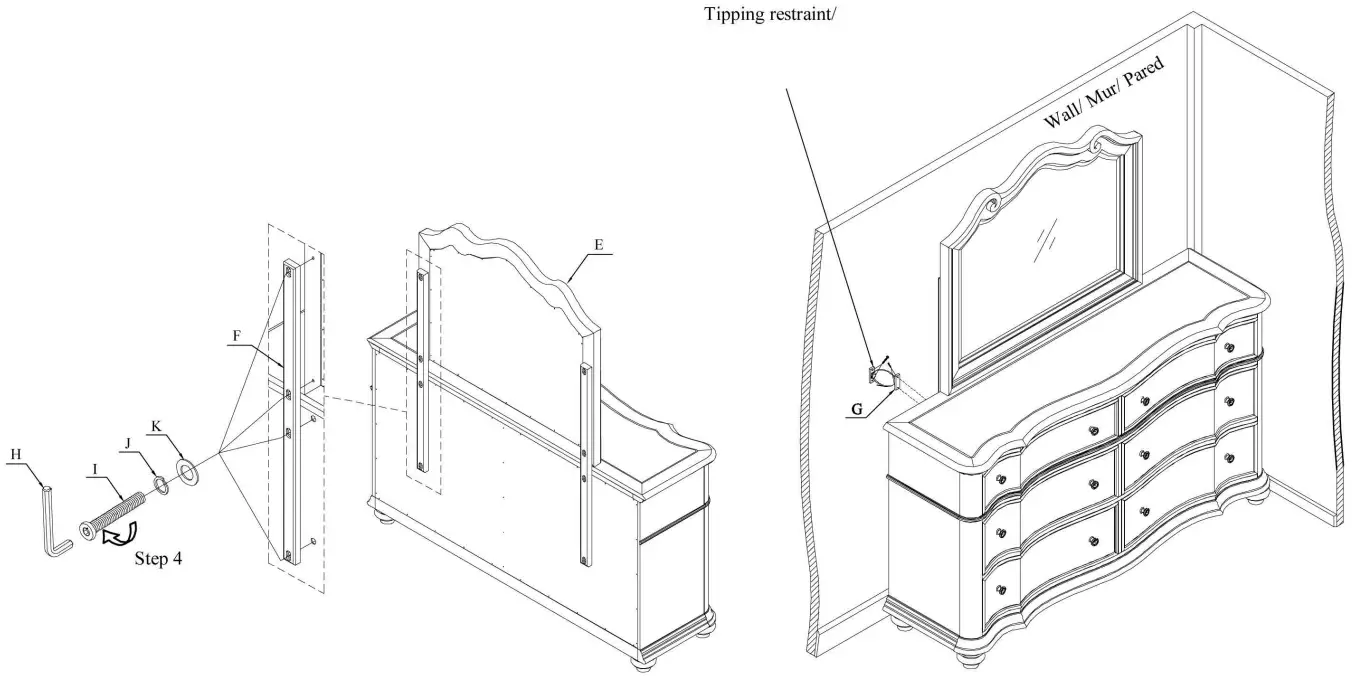

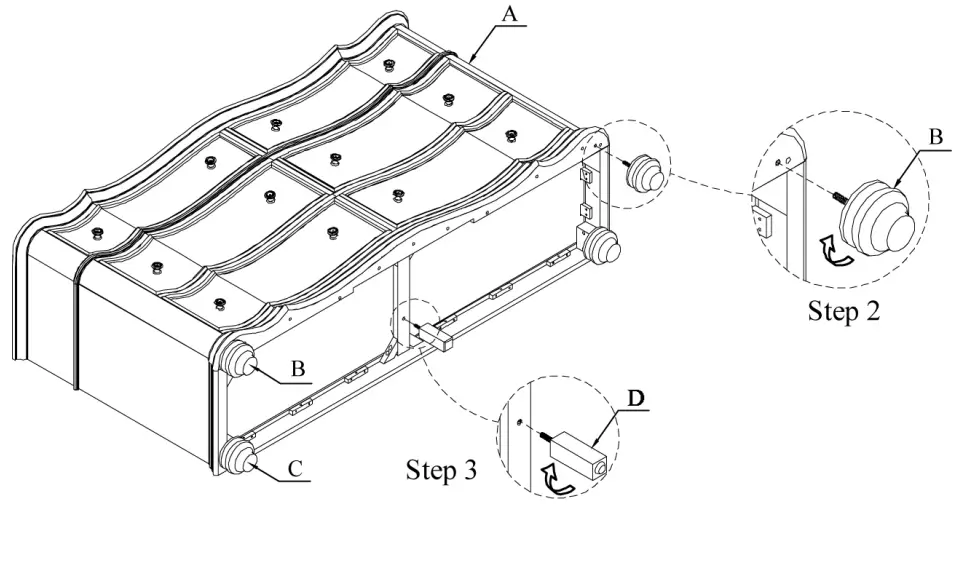

ASSEMBLY INSTRUCTIONS

ASSEMBLY INSTRUCTIONS

REPLACEABLE PART

• RP293 100 FOOTF *
  x2 Bun Foot (Front)

• RP293 l 00 FOOTS *
  x2 Bun Foot (Back)

• RP293 l 00-CELEG *
  x1 Center Leg

• RP293110-MISU *
  x2 Mirror Support

• RP293 l 00-FEL TL *

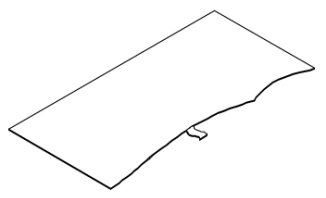

  x1 Left Removable Felt

• RP293 l 00-FEL TR *

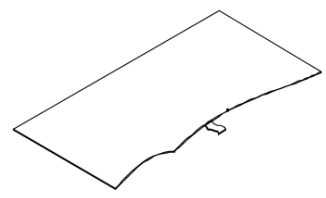

  x1 Right Removable Felt

• COMGLIDE-12-45 *

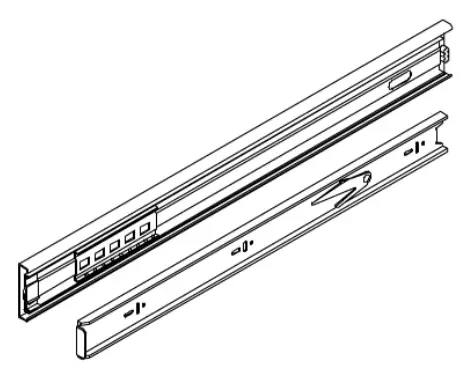

  x6 Common Drawer Glide

• RP293-KNOBL *
  x 12 Large Knob with Screw

• RC-FG-WHITE *
  x3 Common Adjustable Leveler

• RC-WH-NAIL *
  x2 Plastic Nail

• RP293 110-HWKIT *
  x1 Hardware Kit

• RC-ANTI-TIP *
  x1 Anti-tipping Restraint
