BELEY T20 Transmission Fluid Tester

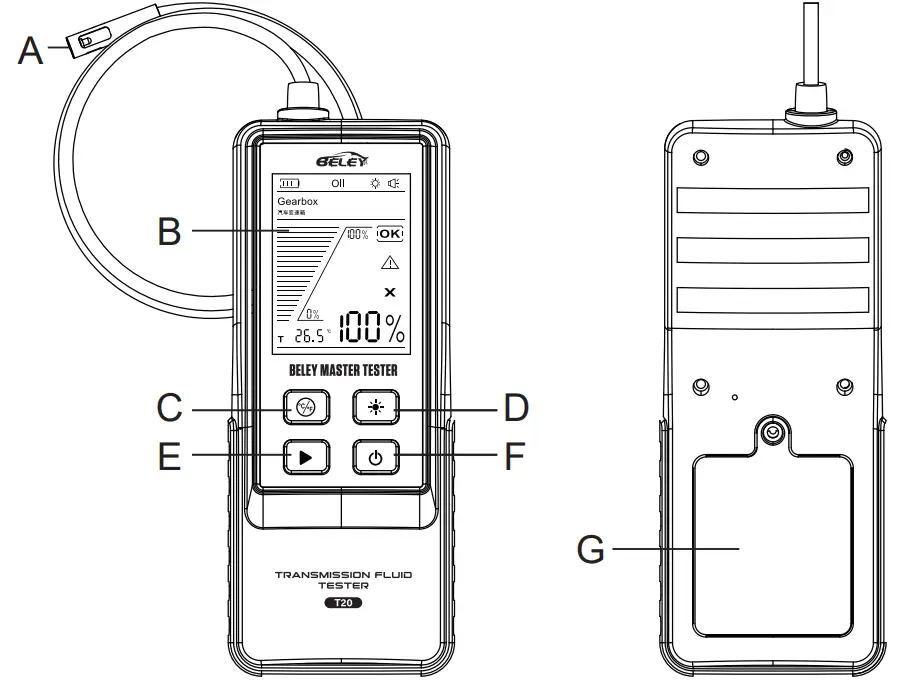

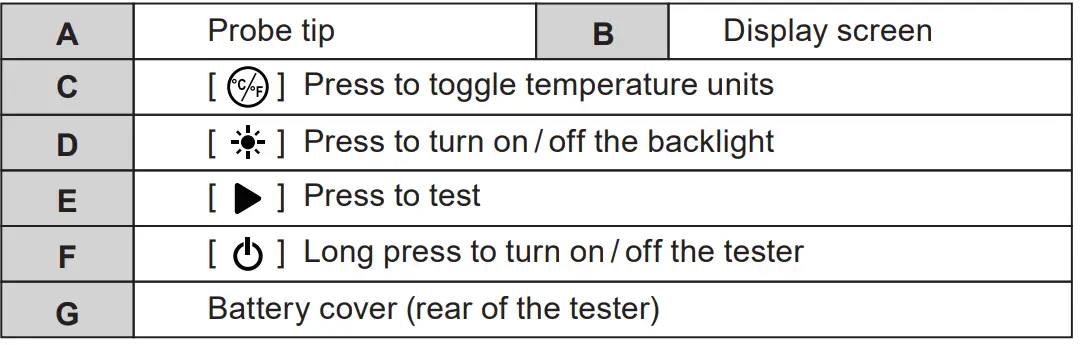

Product Structure

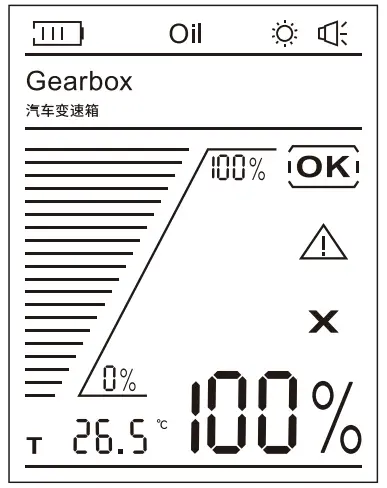

Interface Display
Battery Installation Instructions
- Open the battery cover on the back of the device.
- Insert the batteries (4 x 1.5V AAA batteries), paying attention to the correct polarity.
- Close the battery cover securely.
Operations Instruction
- The probe should be wiped clean before each measurement and the temperature of the engine must be below 60°C.
- Press and hold the [ ] key for more than 2s to power on the tester.
- Press [ ] to toggle the temperature.
- Submerge the probe in the transmission fluid.
- Press [ ] for transmission oil transmittance test.
- The interface will display the transmittance of the transmission fluid.
- Indicates [ ] when the transmittance is between 100% and 50%, [ ]
- when the transmittance is between 50% and 30%, and [ ] when it is below 30%. [ ] to indicate the current transmission oil measurement temperature.
- After the measurement is completed, press and hold the [ ] key for 2s for the shutdown of the tester.
- The instrument will automatically power off after 5 minutes of no activity.
