BEGA 95 044 Bicycle Stand For Non-Residential Areas
Product Information
Specifications
- Model: 95 044
- Dimensions: 960 x 300 x 108 mm
- Material: Steel
- Weight: 1.5 kg
Product Usage Instructions
Step 1: Assembly
- Identify all components labeled with A and B.
- Ensure you have the necessary tools like a 17mm wrench and a 13mm wrench.
- Refer to the diagram for the proper placement of each component.
Step 2: Installation

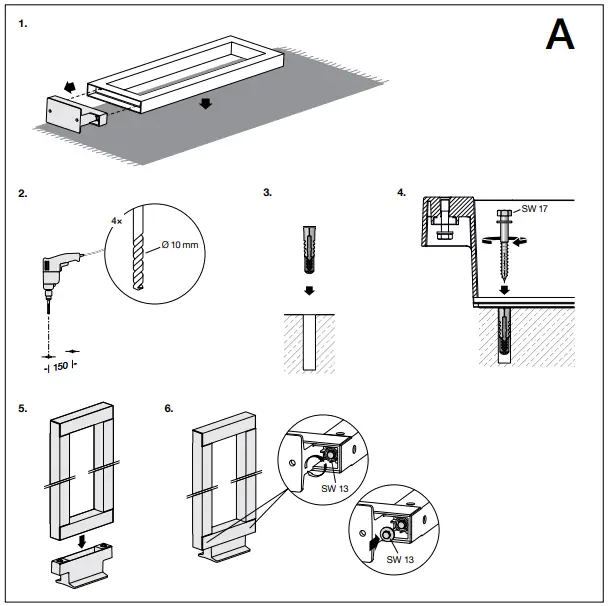

- Start by assembling part A following the sequence of steps provided.

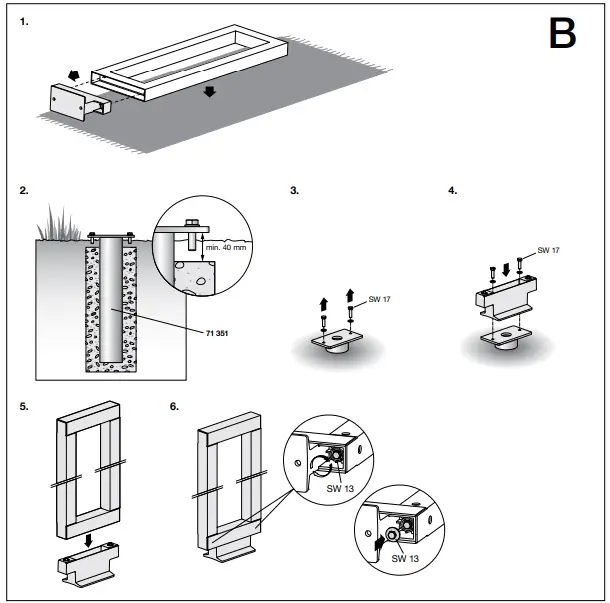

- Then proceed to assemble part B in the same manner.
- Make sure to leave a minimum clearance of 40mm for part 71 351.
Step 3: Finalizing
- Tighten all bolts using the specified wrench sizes (17mm and 13mm).
- Double-check the assembly to ensure all parts are securely in place.
Frequently Asked Questions (FAQ)
Q: How do I adjust the product once installed?
A: To adjust the product, simply use the provided wrenches to loosen or tighten the bolts as needed.
Q: Can this product be used outdoors?
A: This product is designed for indoor use only due to its material composition.

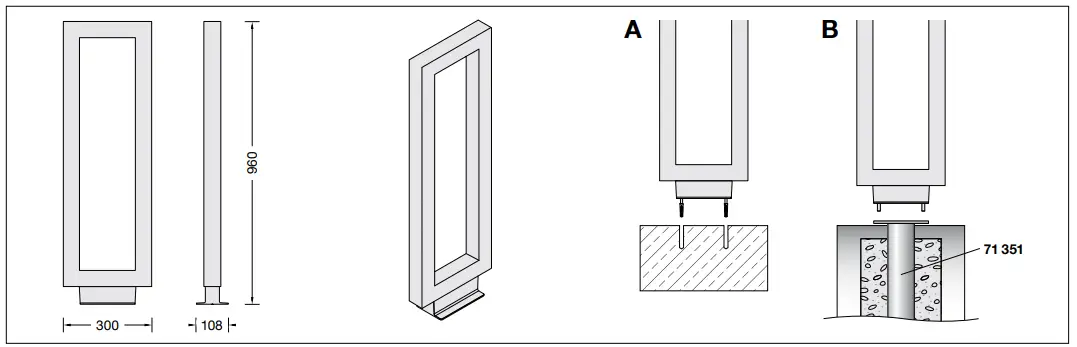

Dimension
Bicycle stand for non-residential areas
Installation instructions
