BEGA 51251.1 Indoor Recessed Ceiling Downlight

Product Information

Safety	The installation and operation of this luminaire are subject tonational safety regulations. Installation and commissioning mayonly be carried out by a qualified electrician. The manufactureraccepts no liability for damage caused by improper use orinstallation. If subsequent modifications are made to theluminaire, the person responsible for these modifications shall beconsidered the manufacturer.
Overvoltage Protection	The electronic components installed in the luminaire areprotected against overvoltage in accordance with DIN EN 61547. Toachieve an additional protection against e.g. transients, etc. werecommend separate overvoltage protection components. You can findthem on our website at www.bega.com.
Installation	Luminaire housing must not be installed in heat-insulating material. LED are high-quality electronic components! Please avoid touching the light output opening of the LED directly during installation or relamping. The recessed opening is covered by the frame of the luminaire housing. Fixing of the luminaire in the structure is achieved by using two adjustable claws. Installation in concrete ceilings: To accommodate the luminaire and the external power supply unit we recommend using the installation housing 10 441. Installation in suspended ceilings: A recessed opening of ø 128 mm with a minimum installation depth of 105 mm is required. The external power supply unit requires a minimum of 90 mm clearance above the ceiling. The claws grip behind the ceiling cladding. The minimum thickness of the ceiling cladding is 12 mm. If the thickness is less, and if installation is to be effected in plasterboard ceilings, the back of the ceiling cladding must be reinforced in the region of the claws. The electrical connection must be made on site in the appropriate safety class on the LED power supply unit connecting cable. A distribution box must be used. Ensure the correct assignment of the connecting cable. Establish the mains connection on the brown (L) and blue (N) wires. The two connecting terminals marked DA, DA are provided for digital control purposes. If these terminals are not assigned, the luminaire will work with full light output. Pull cover ring (magnetic) off the installation ring of the pivoting housing. Connect plug part of the luminaire with power supply unit. Push external LED power supply unit and luminaire housing into the ceiling cut-out. Luminaire housing and external LEDpower supply unit must not be installed in heat-insulating material. Tighten guide screws. When tightening the screws, the fixing claws must swivel onto the inside of the suspended ceiling. The luminaire is fixed. When undoing the guide screws, the fixing claws swivel back and the luminaire can be removed. Adjustment of the direction of radiation: Undo both hexagon socket head screws and remove transportation lock. Adjust tilt angle and beam direction of the LED. Tighten latching screw. Mount the cover ring onto installation ring of the housing (magnetic).

Safety

The installation and operation of this luminaire are subject tonational safety regulations. Installation and commissioning mayonly be carried out by a qualified electrician. The manufactureraccepts no liability for damage caused by improper use orinstallation. If subsequent modifications are made to theluminaire, the person responsible for these modifications shall beconsidered the manufacturer.

Overvoltage Protection

The electronic components installed in the luminaire areprotected against overvoltage in accordance with DIN EN 61547. Toachieve an additional protection against e.g. transients, etc. werecommend separate overvoltage protection components. You can findthem on our website at www.bega.com.

Installation

Luminaire housing must not be installed in heat-insulating material. LED are high-quality electronic components! Please avoid touching the light output opening of the LED directly during installation or relamping.

The recessed opening is covered by the frame of the luminaire housing.
Fixing of the luminaire in the structure is achieved by using two adjustable claws.

Installation in concrete ceilings:

To accommodate the luminaire and the external power supply unit we recommend using the installation housing 10 441.
Installation in suspended ceilings:
A recessed opening of ø 128 mm with a minimum installation depth of 105 mm is required.
The external power supply unit requires a minimum of 90 mm clearance above the ceiling.
The claws grip behind the ceiling cladding.
The minimum thickness of the ceiling cladding is 12 mm.
If the thickness is less, and if installation is to be effected in plasterboard ceilings, the back of the ceiling cladding must be reinforced in the region of the claws.
The electrical connection must be made on site in the appropriate safety class on the LED power supply unit connecting cable. A distribution box must be used.
Ensure the correct assignment of the connecting cable. Establish the mains connection on the brown (L) and blue (N) wires.
The two connecting terminals marked DA, DA are provided for digital control purposes.
If these terminals are not assigned, the luminaire will work with full light output.
Pull cover ring (magnetic) off the installation ring of the pivoting housing.
Connect plug part of the luminaire with power supply unit.
Push external LED power supply unit and luminaire housing into the ceiling cut-out.
Luminaire housing and external LEDpower supply unit must not be installed in heat-insulating material.
Tighten guide screws.
When tightening the screws, the fixing claws must swivel onto the inside of the suspended ceiling. The luminaire is fixed.
When undoing the guide screws, the fixing claws swivel back and the luminaire can be removed.
Adjustment of the direction of radiation:
Undo both hexagon socket head screws and remove transportation lock. Adjust tilt angle and beam direction of the LED. Tighten latching screw.
Mount the cover ring onto installation ring of the housing (magnetic).

Application

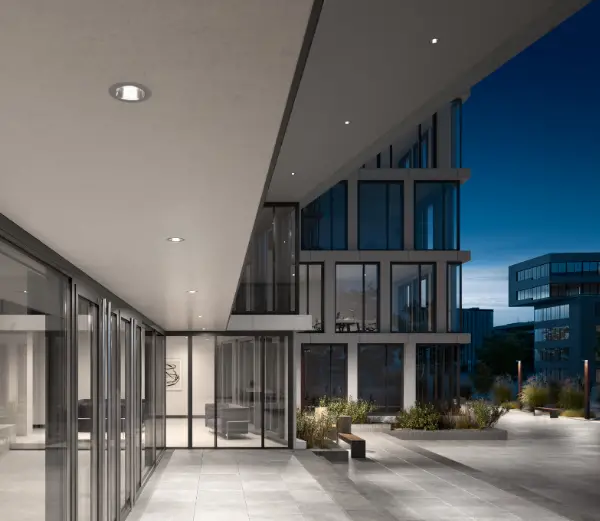

Recessed ceiling luminaire · indoor luminaire with adjustable wide beam light distribution. With external DALI controllable power supply unit for installation into concrete ceilings or suspended ceilings.

Product Usage Instructions

Lamp	Module connected wattage	Luminaire connected wattage	Rated temperature	Ambient temperature
LED-1148/930	12 W	14 W	25 °C	35 °C

Module designation	Colour temperature	Colour rendering index	Module luminous flux	Luminaire luminous flux	Luminaire luminous efficiency
LED-1148/930	3000 K	CRI > 90	1730 lm	1296 lm	92.6 lm/W

Product description

Recessed ceiling downlights with external PSU
Luminaire made of aluminium alloy, aluminium and stainless steel
Ceiling trim ring made of metal, Colour velvet white
Clear safety glass
Reflector surface made of pure aluminium
Optical silicone lens · BEGA Hybrid Optics®
Luminaire housing with 2 fixing claws and guide screws
Recessed opening ø 128mm
Required installation depth 105mm
1 connecting cable with strain relief and plug connector system for BEGA DALI-power supply unit
External LED power supply unit 350 mA 220-240 V x 0/50-60 Hz
DC 176-280 V
DALI controllable
A basic isolation exists between power cable and control line
Safety class II 2
CE– Conformity mark
Weight: 0.9 kg
This product contains light sources of energy efficiency class(es) F

Lamp

Module connected wattage 12 W
Luminaire connected wattage 14 W
Rated temperature ta=25 °C
Ambient temperature ta max=35 °C

51 251.1K3

Module designation LED-1148/930
Colour temperature 3000 K
Colour rendering index CRI > 90
Module luminous flux 1730 lm
Luminaire luminous flux 1296 lm
Luminaire luminous efficiency 92,6 lm/W

Light technique

Recessed luminaire with adjustable optical system, 0-30° swivel-mounted and ±180° infinitely rotatable.
Wide beam light distribution.
Half beam angle 21°
The symmetrical light cone can be modified to resemble flat beam light distribution for special lighting applications by replacing the cover glass

Cleaning · Maintenance

Clean luminaire regularly with solvent-free cleansers from dirt.

Replacing the LED module

The designation of the LED module is noted on a label in the luminaire.
The light colour and light output of BEGA replacement modules correspond to those of the modules originally fitted.
The module can be replaced by qualified persons using standard tools.
Disconnect the system and open the luminaire.
Please follow the installation instructions for the
LED module.
Inspect and, if necessary, replace the luminaire gaskets.
Defective glass must be replaced.
Close the luminaire.

Accessories

For the accessories, a separate instructions for use can be provided upon request. For the accessories a separate instructions for use can be provided upon request.

(Spares):

Spare glass: 14 001 566
LED power supply unit: DEV-0434/350
LED module 3000 K: LED-1148/930
Reflector: 76 002 004

Spares

Spare glass 14 001 566
LED power supply unit DEV-0434/350
LED module 3000 K LED-1148/930
Reflector 76 002 004

Une fiche d’utilisation pour ces accessoires est disponible.
