Ceiling and wall luminaire for indoor use
Instructions for use
Contents
Application
Ceiling and wall luminaire · indoor luminaire made of impact resistant synthetic diffuser and aluminium housing.
Luminaire with free-radiating and uniform light distribution for linear illumination in interior.
Product description
Luminaire made of aluminium, matt surface finish
Light-diffusing synthetic luminaire cover 2 elongated fixing holes
Width 5.5 mm · 500 mm spacing
Connection terminal 2.5@
Earth conductor connection 2-pole connecting terminal for digital control
LED power supply unit
220-240 V
0/50-60 Hz DC 176-264 V
DALI-controllable
Basic insulation is provided between the mains and control cables
BEGA Thermal Control®
Temporary thermal regulation to protect temperature-sensitive components without switching off the luminaire
Safety class I
Impact strength IK04
Protection against mechanical impacts < 0.5 joule
– Safety mark
– Conformity mark
Weight: 1.7 kg
This product contains light sources of energy efficiency class(es) D
Safety
The installation and operation of this luminaire are subject to national safety regulations.
Installation and commissioning may only be carried out by a qualified electrician.
The manufacturer accepts no liability for damage caused by improper use or installation. If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.
Overvoltage protection
The electronic components installed in the luminaire are protected against overvoltage in accordance with DIN EN 61547.
To achieve an additional protection against e. g. transients, etc. we recommend separate overvoltage protection components.
You can find them on our website at www.bega.com.
| Lamp | |
| Module connected wattage | 23.2 W |
| Luminaire connected wattage | 26.6 W |
| Rated temperature | ta = 25 °C |
| Ambient temperature | ta max = 30 °C |
| 50 215.2 K3 | |
| Module designation | 4x LED-0627/930 |
| Colour temperature | 3000 K |
| Colour rendering index | CRI > 90 |
| Module luminous flux | 3860 lm |
| Luminaire luminous flux | 2650 lm |
| Luminaire luminous efficiency | 99,6 lm / W |
Please note:
If the luminaire is to be mounted onto a metallic, electroconductive surface, it is mandatory to make sure that the mounting surface is connected conductive to the earth conductor of the luminaire!
Note:
If you a planning a linear arrangement of several luminaires, you must keep a minimum distance of 30 mm between the luminaire caps for installation reasons.
Installation
LED are high-quality electronic components!
Please avoid touching the light output opening of the LED directly during installation or revamping.
Remove the luminaire from the packaging and put it down so that the open rear side of its housing rests on a soft surface.
Undo the lateral Torx countersunk screw T25 and remove the luminaire cap.
Make the earth conductor connection and the electrical connection to the terminals.
For digital control please use the connecting terminal DA, DA.
In case this terminal is not used the luminaire will be operated at full light output.

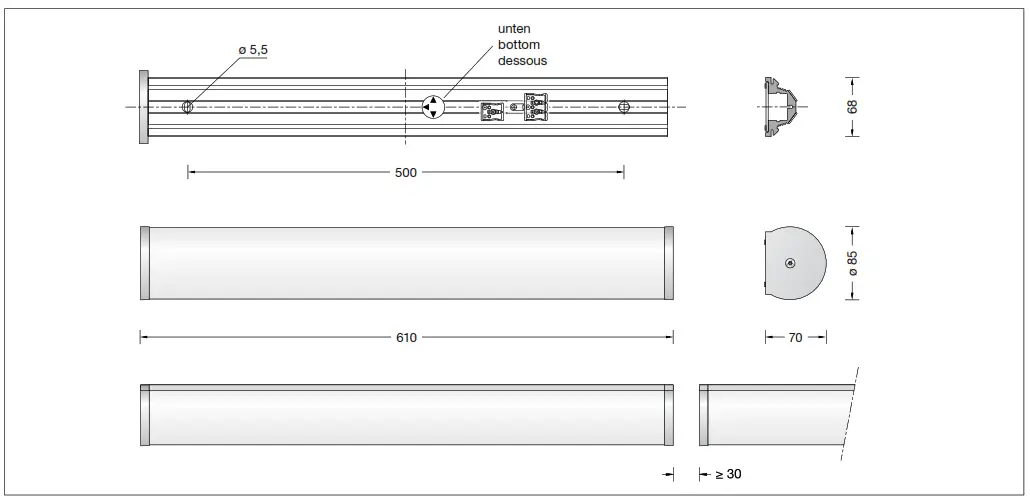

Drill mounting holes into the mounting surface – spacing 500 mm
Fix the luminaire housing with enclosed or any other suitable fixing material onto the mounting surface.
For wall installation note the position of application “arrow down”.
To prevent dirt accumulating on the LED modules, press the supplied plugs into the housing holes of the luminaire profile above the screw-fitting points.
Clip the luminaire cover into the groove of the aluminium profile and push it until the stop of the luminaire housing.
Replace the housing cap and tighten lateral Torx countersunk screw T25.
Cleaning · Maintenance
Clean luminaire regularly with solvent-free cleansers from dirt.
Replacing the LED module
The designation of the LED module is noted on a label in the luminaire.
The light colour and light output of BEGA replacement modules correspond to those of the modules originally fitted. The module can be replaced by qualified persons using standard tools.
Disconnect the system and open the luminaire.
Please follow the installation instructions for the LED module.
Defective luminaire cover must be replaced.
Close the luminaire.
| Spares | |
| Synthetic cover | 15 000 481 .4 |
| LED power supply unit | DEV-0388/700i |
| LED module 3000 K | LED-0627/930 |
