50185.2 Ceiling Luminaire for Indoor Use
Instruction Manual
Contents
50185.2 Ceiling Luminaire for Indoor Use
Technical amendments reserved
Ceiling luminaire for indoor use
Instructions for use
Application
Ceiling luminaire · indoor luminaire with aluminium housing for non-glare light deflected downwards.
The used LED technique offers durability and optimal light output with low power consumption at the same time.
Lamp
| Module connected wattage | 8.9 W |
| Luminaire connected wattage | 10.6 W |
| Rated temperature | ta = 25 °C |
| Ambient temperature | ta max = 40 °C |
50 185.2 K3
| Module designation | LED-0623/930 |
| Colour temperature | 3000 K |
| Colour rendering index | CRI > 90 |
| Module luminous flux | 1135 lm |
| Luminaire luminous flux | 379 lm |
| Luminaire luminous efficiency | 35,8 lm / W |
Product description
Ceiling luminaire »STUDIO LINE« Aluminium housing shield, Finish Colour velvet black inside hue aluminium matt
Light-diffusing silicone lens Mounting plate with 2 fixing holes ø 4.5 mm · 80 mm spacing Connecting terminals 2.5@
Earth conductor connection LED power supply unit 220-240 V
0/50-60 Hz DC 176-280 V Safety class I
– Safety mark
– Conformity mark
Weight: 0.6 kg
This product contains light sources of energy efficiency class(es) D, E
Safety
The installation and operation of this luminairare subject to national safety regulations.
Installation and commissioning may only be carried out by a qualified electrician. The manufacturer accepts no liability for damage caused by improper use or installation. If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.
Lighting technology
Luminaire data for the DIALux lighting design program for outdoor lighting, street lighting and indoor lighting, as well as luminaire data in EULUMDAT and IES format are available on the BEGA website at www.bega.com.
Installation
LED are high-quality electronic components! Please avoid touching the light output opening of the LED directly during installation or relamping.
Pull off LED cover from mounting plate. Pass the power connecting cable through the cable entry in the mounting plate.
Fasten the mounting plate with the supplied fastening material or other suitable fastening material to the installation surface.
Make the earth conductor connection and the electrical connection to the terminals.

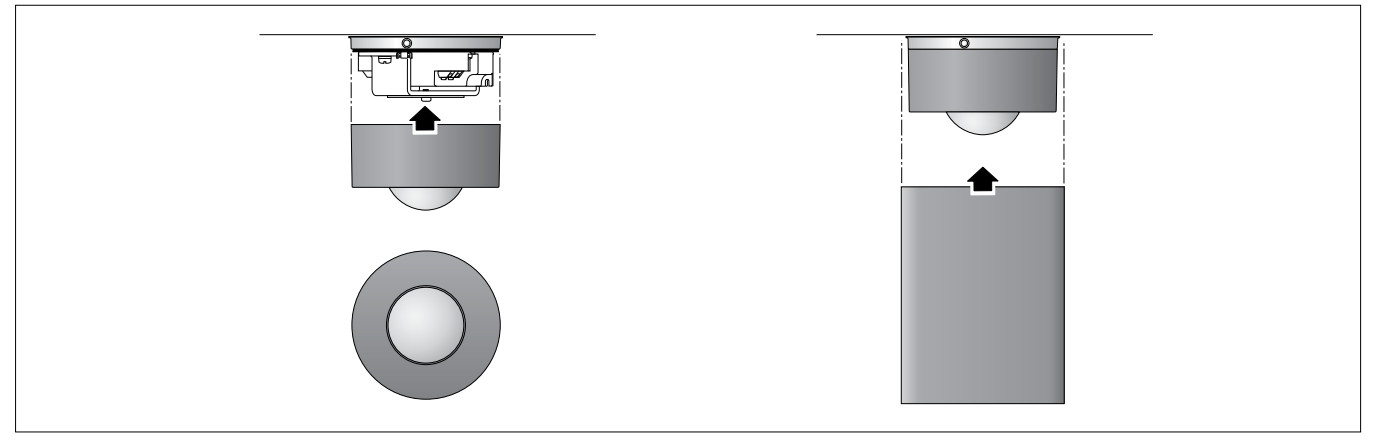

Clip LED cover onto mounting plate. Pass the enclosed housing shield over the LED cover until the housing shield latches in place audibly.
Cleaning · Maintenance
Clean luminaire regularly with solvent-free cleansers from dirt.
Replacement of the LED module
The designation of the LED module is noted on a label in the luminaire.
The light colour and light output of BEGA replacement modules correspond to those of the modules originally fitted. The module can be replaced by qualified persons using standard tools.
Disconnect the system.
Pull housing shield off the mounting plate.
Open the luminaire.
Please follow the installation instructions for the LED module. Close the luminaire.
Pass the housing shield over the LED cover until the housing shield latches in place audibly.
Spares
| Shield | 42 000 207 L |
| LED power supply unit | DEV-0136/500 |
| LED module 3000 K | LED-0623/830 |
| LED module 3000 K | LED-0623/930 |
